#1900 - 'GOLFBALL' build - 2.4-AUTO-NITROUS.... Street car?

Barnes

Well-known member
Joined
Feb 9, 2003
Messages
6,249
Location
Richland, WA
Where the hell is your turbo oil supply tapped from?? How is your oil filter not catching this stuff first?!?! /ubbthreads/images/graemlins/uhh.gif /ubbthreads/images/graemlins/confused.gif /ubbthreads/images/graemlins/uhh.gif


Question about that intercooler. I never understood the side to side flow IC's with the hot side and the cold side sharing an endtank. Is it divided internally? I hope so otherwise the air could bypass the core altogether. Before anyone says "Of course it would have to be!" I have actually seen some Ebay stuff like that.


Just checked it out from when you first got it to how its evolved from there and looks like its coming along great!! Best of luck with the build!


GolfBall

Well-known member
Joined
Aug 28, 2009
Messages
125
Location
Edmond, OK
Quoting BarnesMobile:
Where the hell is your turbo oil supply tapped from?? How is your oil filter not catching this stuff first?!?! /ubbthreads/images/graemlins/uhh.gif /ubbthreads/images/graemlins/confused.gif /ubbthreads/images/graemlins/uhh.gif



the oil feed is coming off the oil filter housing.

if you figure out how the inline filter isn't catching everything and i still blew up the turbo i will pay you 500 dollars /ubbthreads/images/graemlins/smile.gif


ApexHunter

Well-known member
Joined
Apr 25, 2007
Messages
1,996
Location
Marysville, WA
Quoting crankwalk:
Question about that intercooler. I never understood the side to side flow IC's with the hot side and the cold side sharing an endtank. Is it divided internally? I hope so otherwise the air could bypass the core altogether. Before anyone says "Of course it would have to be!" I have actually seen some Ebay stuff like that.



The inlet and outlet end tanks are siamesed together on one side but they are internally divided. The air ends up making two passes through the core. That's the way it is supposed to work at least. I hope even with the often shoddy craftsmanship of ebay stuff they wouldn't overlook something like that.


GolfBall

Well-known member
Joined
Aug 28, 2009
Messages
125
Location
Edmond, OK

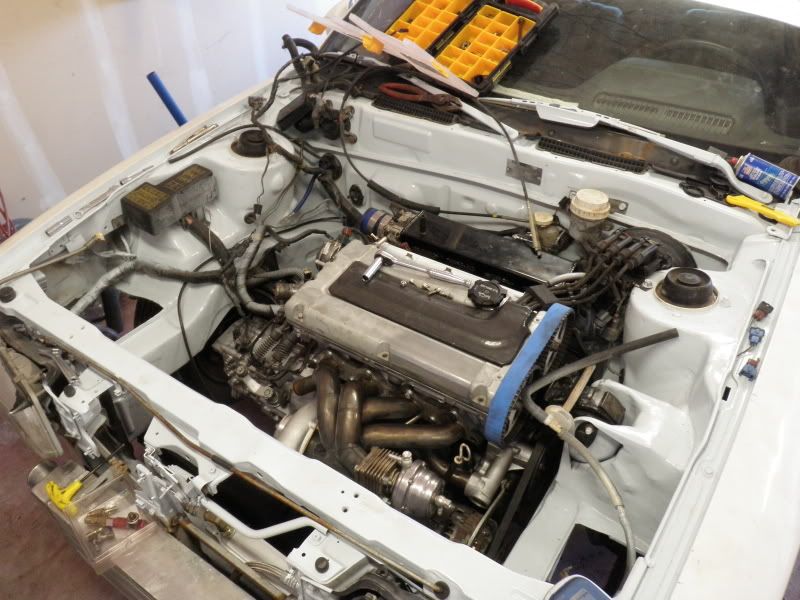

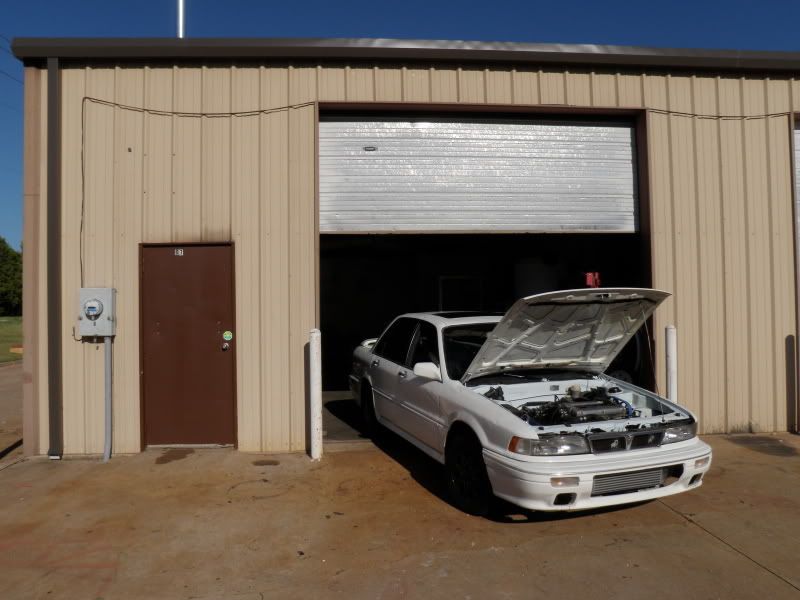

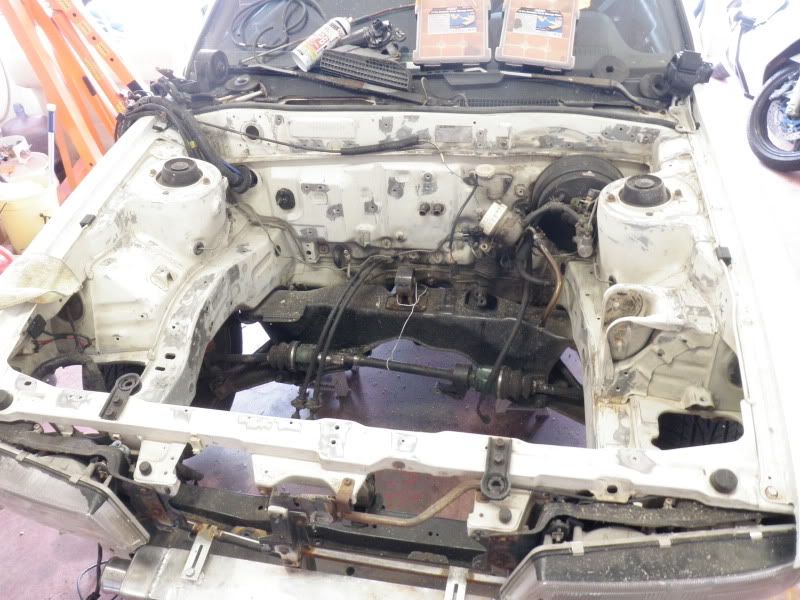

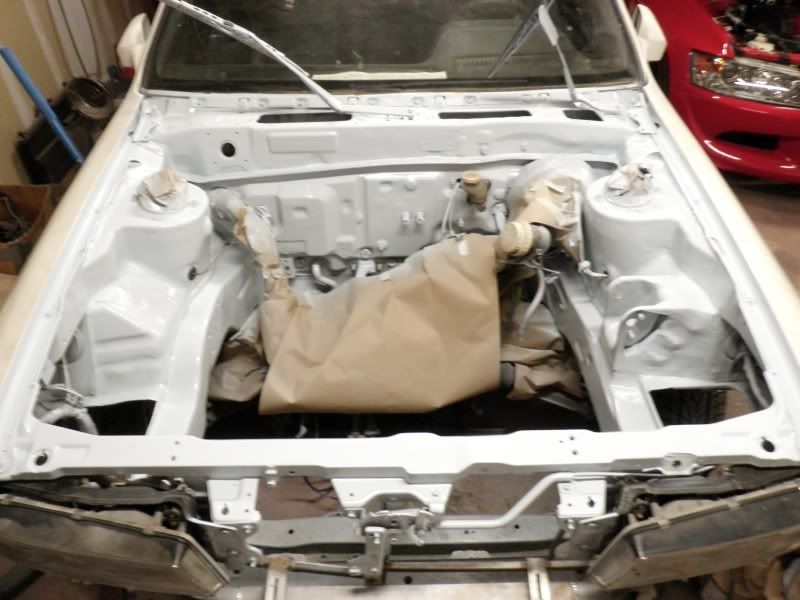

started cleaning up the engine bay
HUGE UPDATE: got a ton done but haven't been keeping this thread updated....

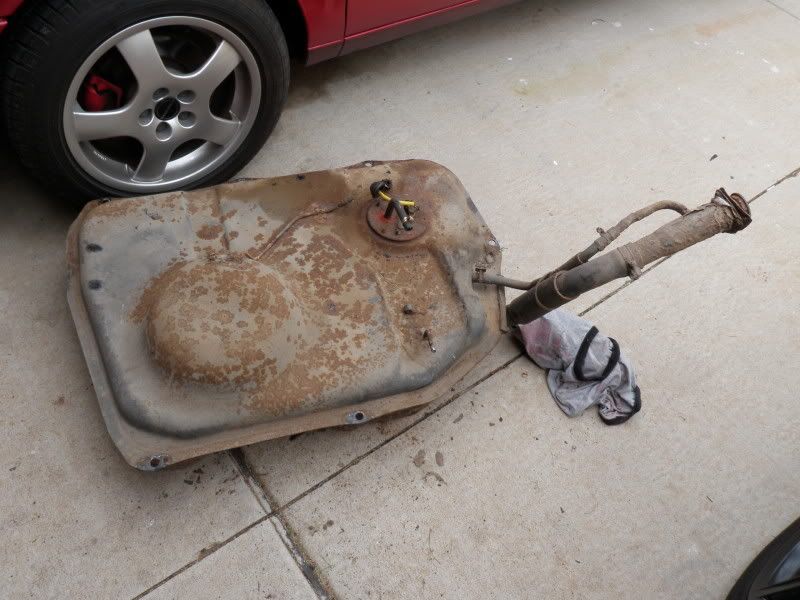

drained and yanked the ol' fuel tank out. its freakin nassssty

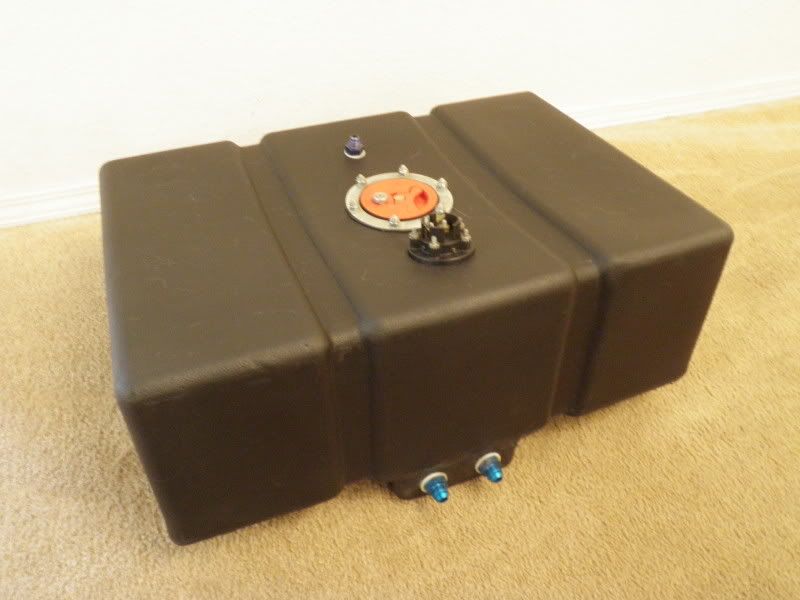

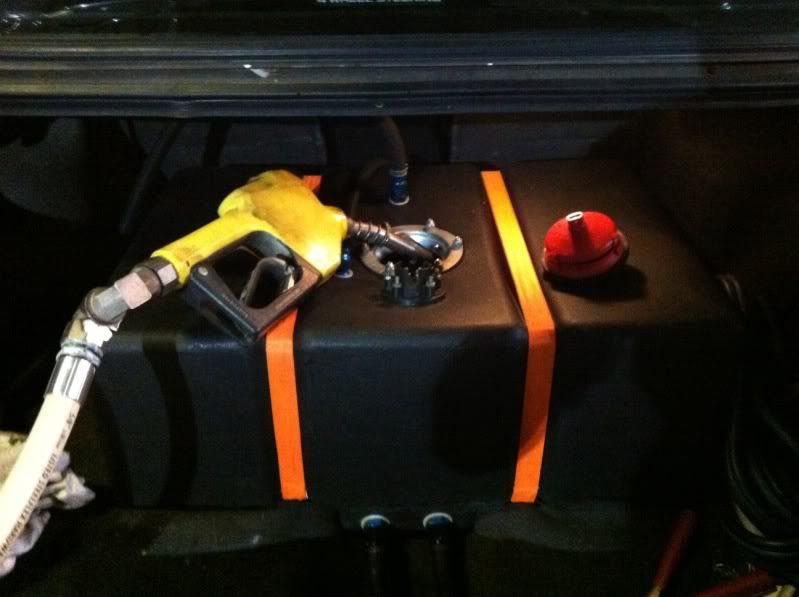

heres the new one to replace it. 16 gallon.


then all my fuel fittings and line came in.


got a little more done....

FIRST OFF...

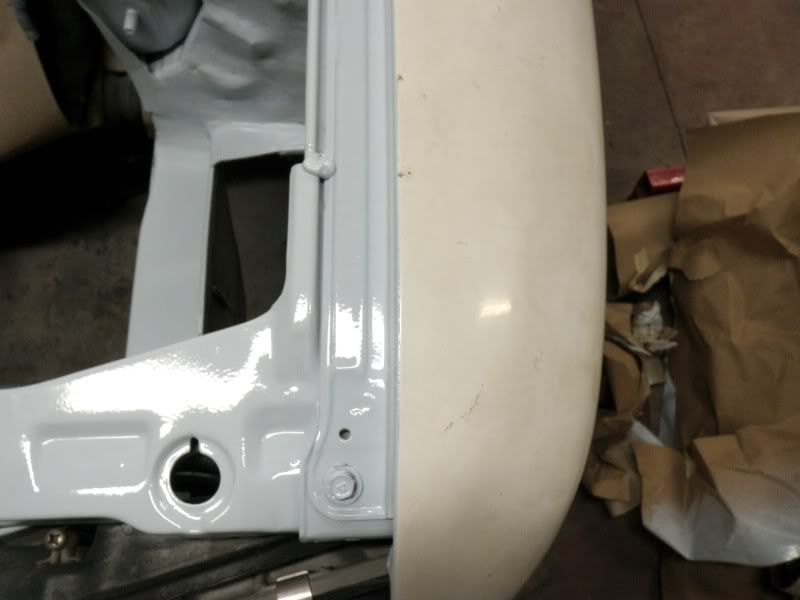

im super pissed the paint i got is wayyy of in color. its called "WINTER WHITE" come on now. its gotta be white. nope how about sky blue.





HOW LAME. im working with the people i bought the paint from to try and get a refund.

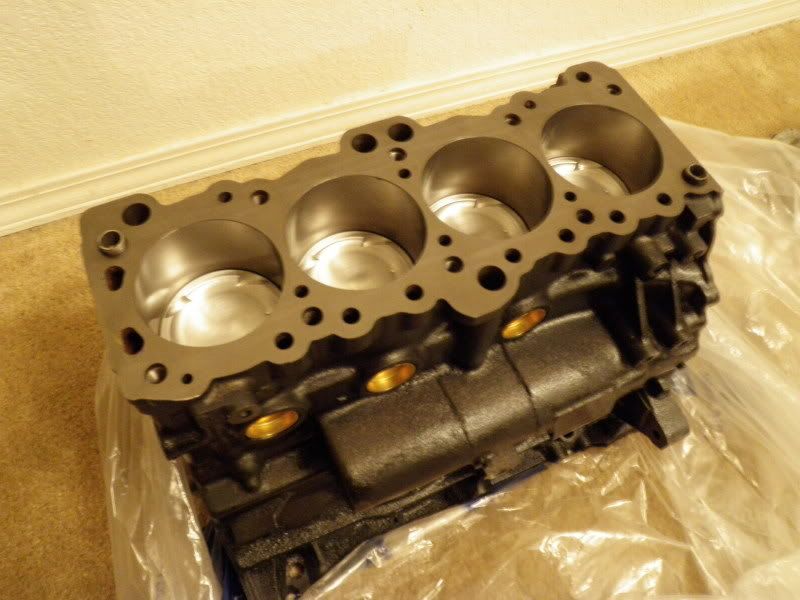

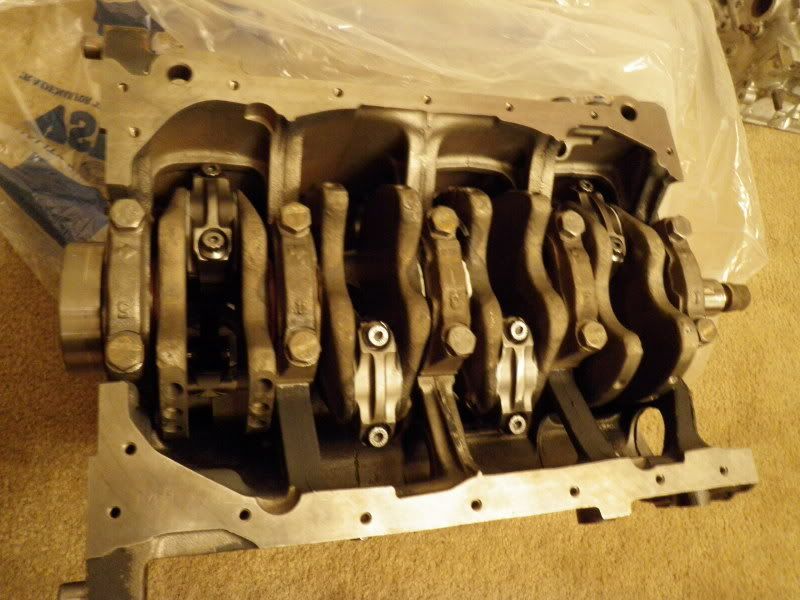

also got the motor back from the machine shop.









got more done....

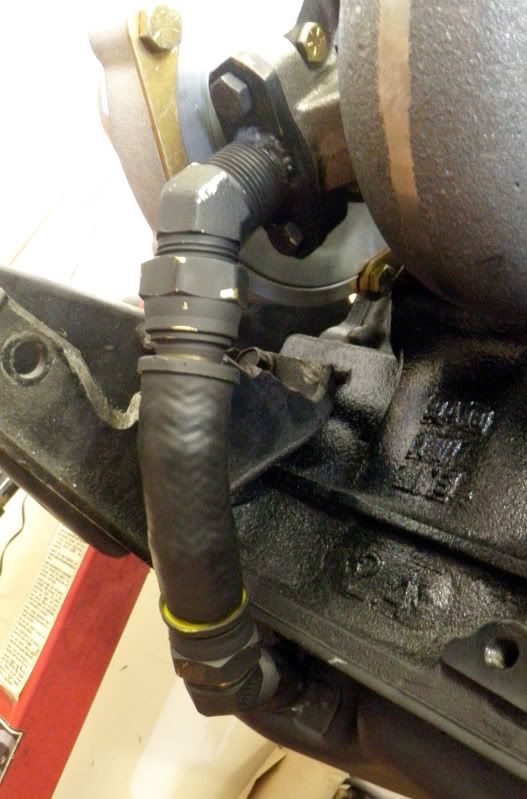

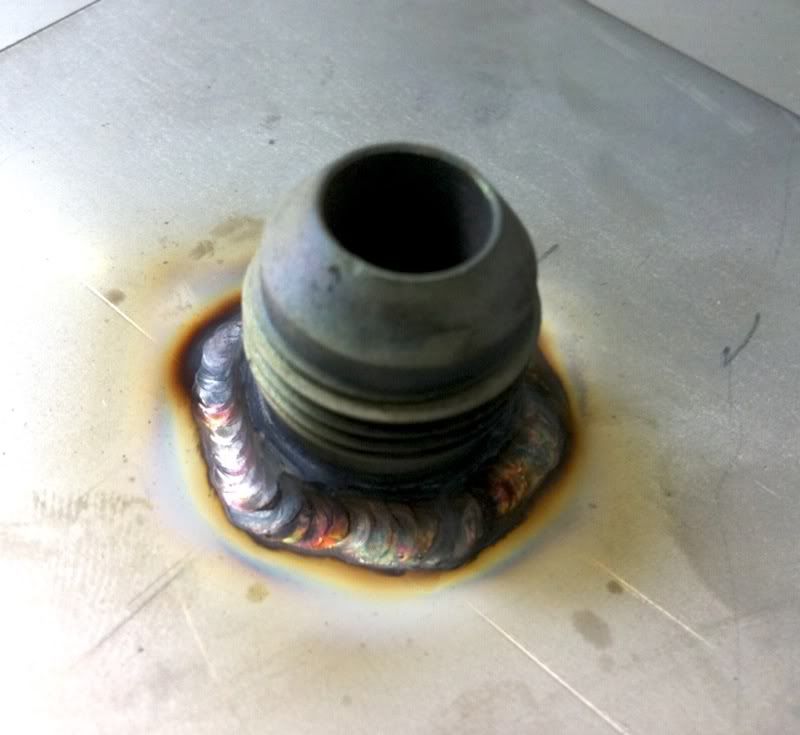

dont hate... i went for function way over form.... -12 oil drain... no more blowing turbo's for me.

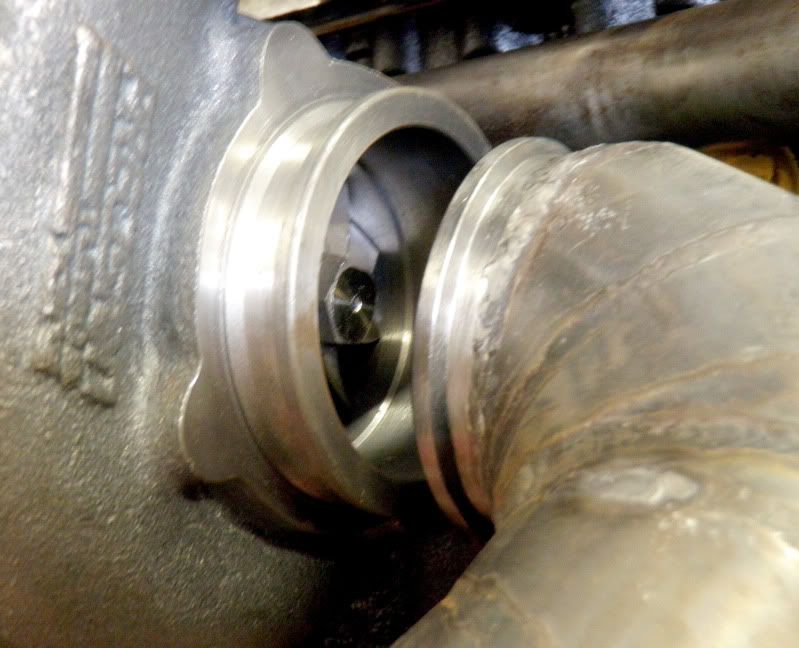

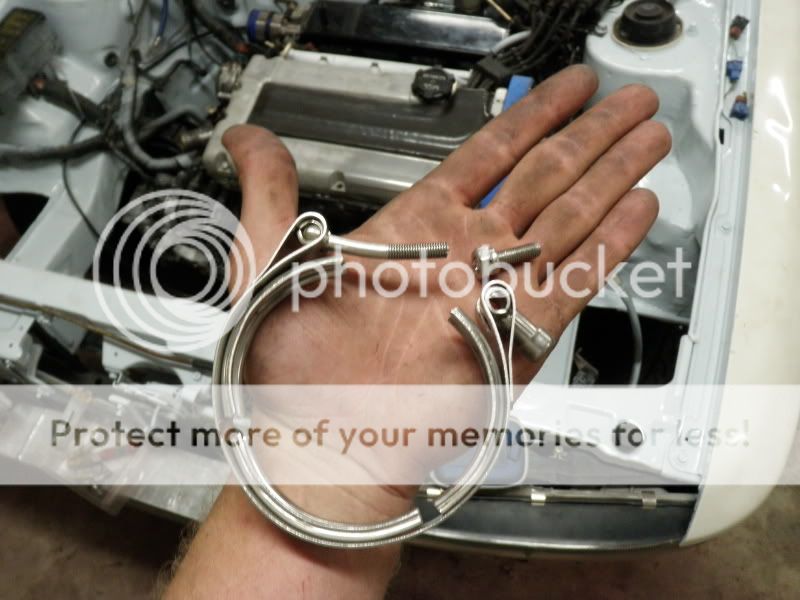

v-band for the WIN....

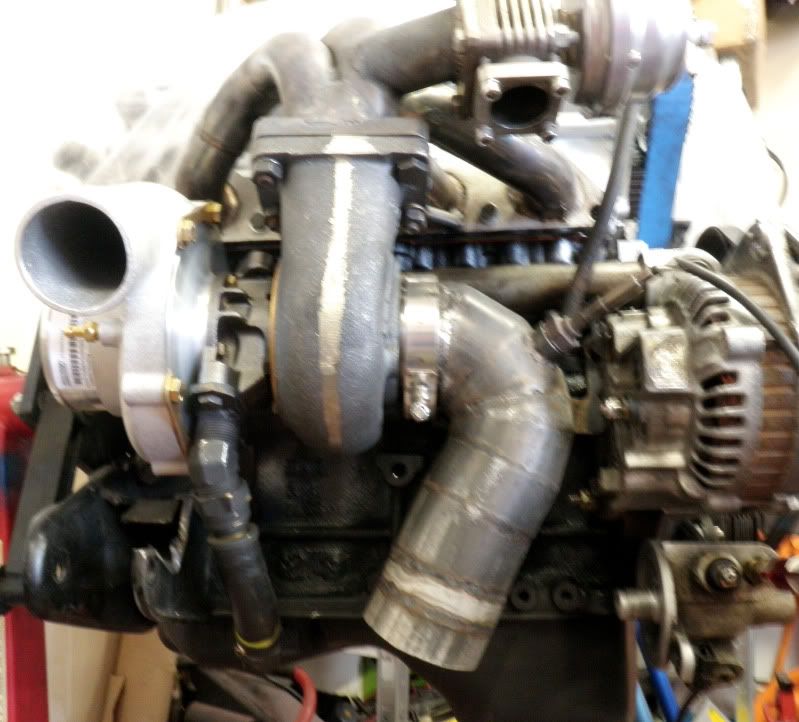

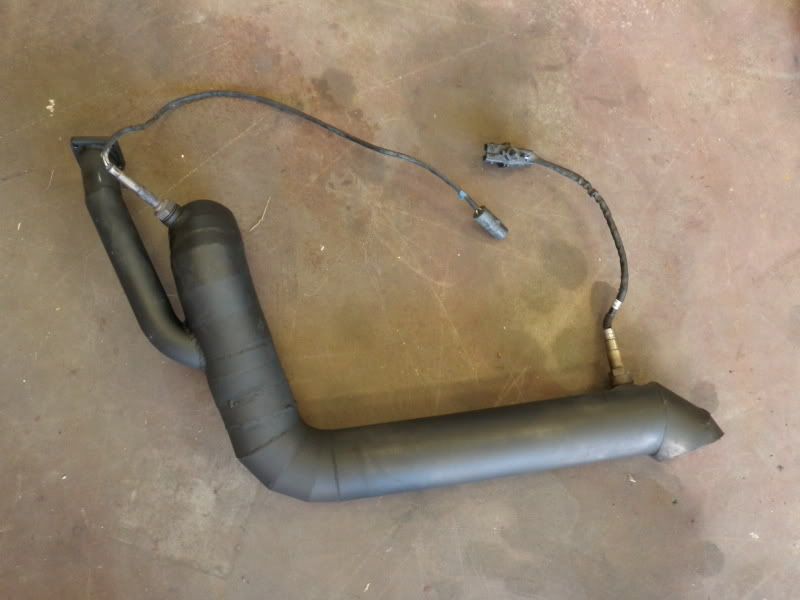

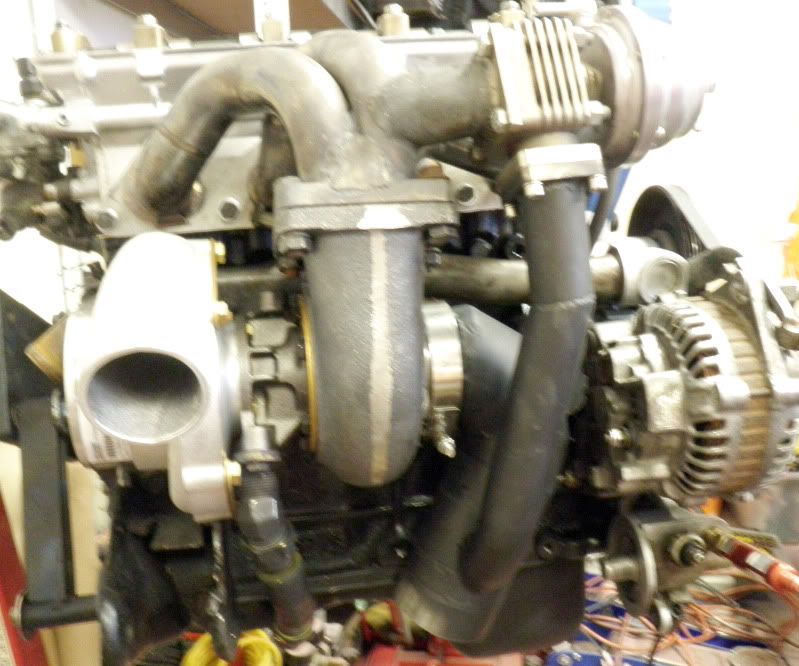

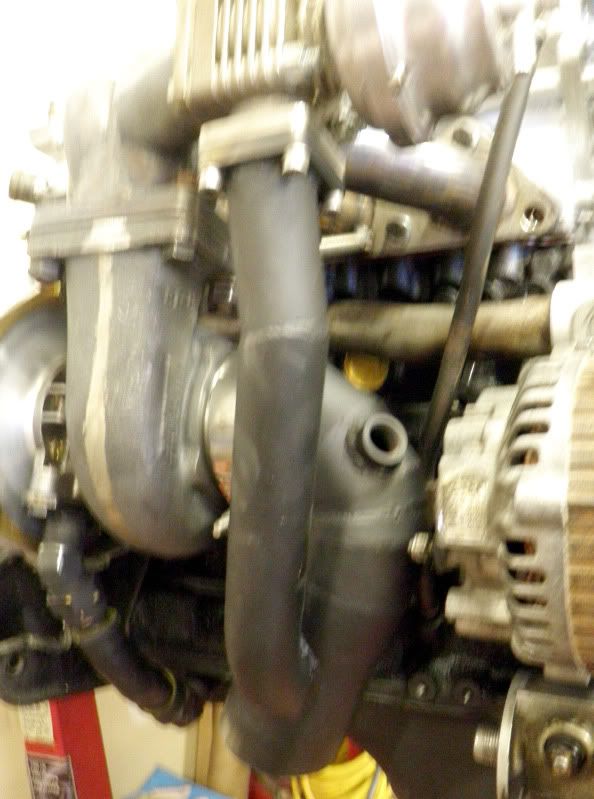

got my down pipe fabbed



then said... why not recirculate the wastegate.





started gettin ready to slap the trans on it...





then remember i wanna weld my center diff and paint the trans before i put it on... so that ended it for the night.

so... didn't go to work and got a ton done today....

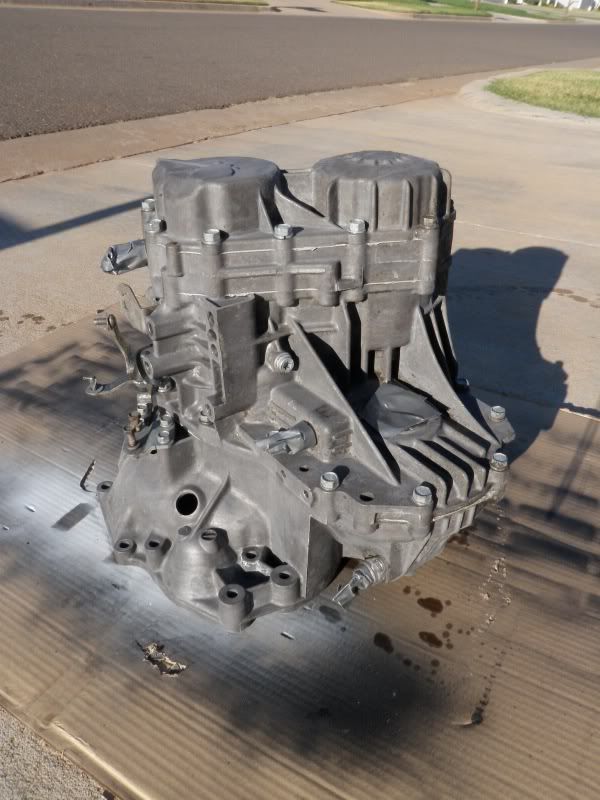

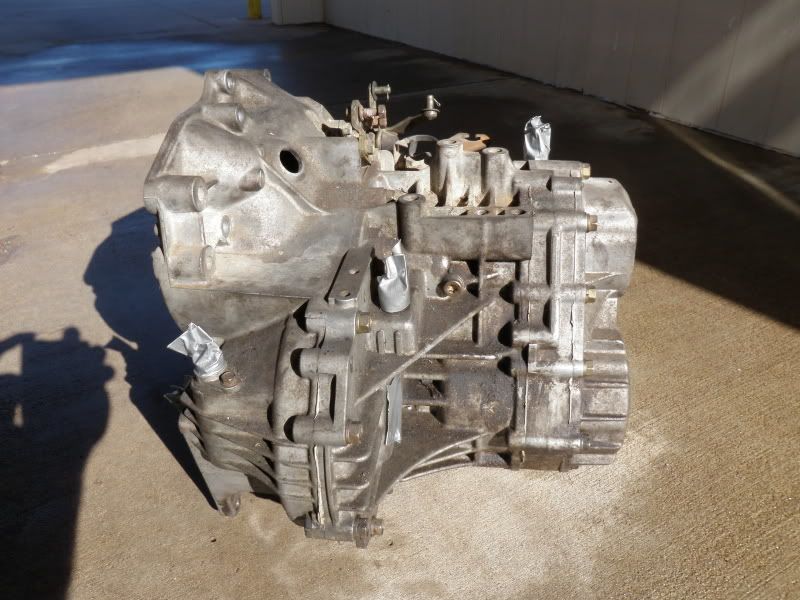

started by acid washing and power washing my trans...




then quick coat of paint...



then decided i to weld up my center diff.





not pretty but it will do the trick

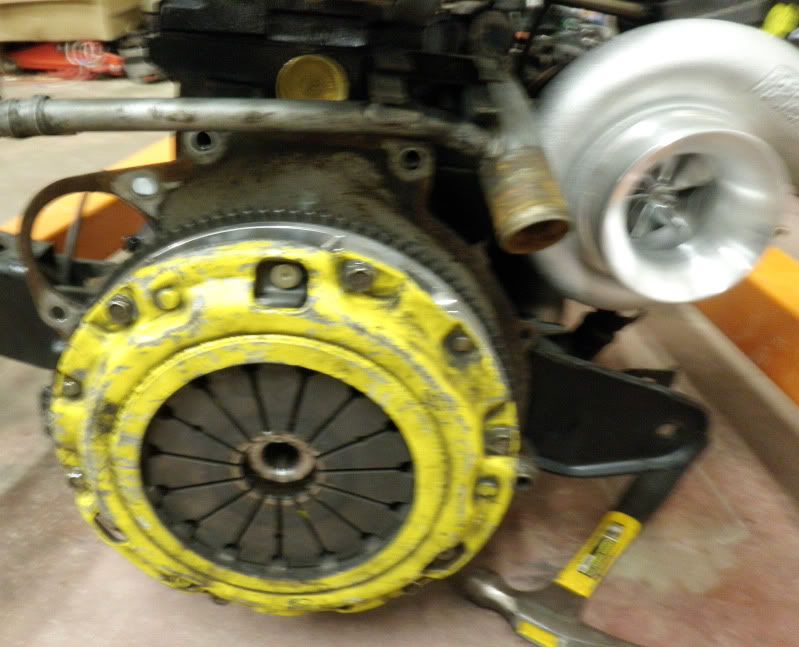

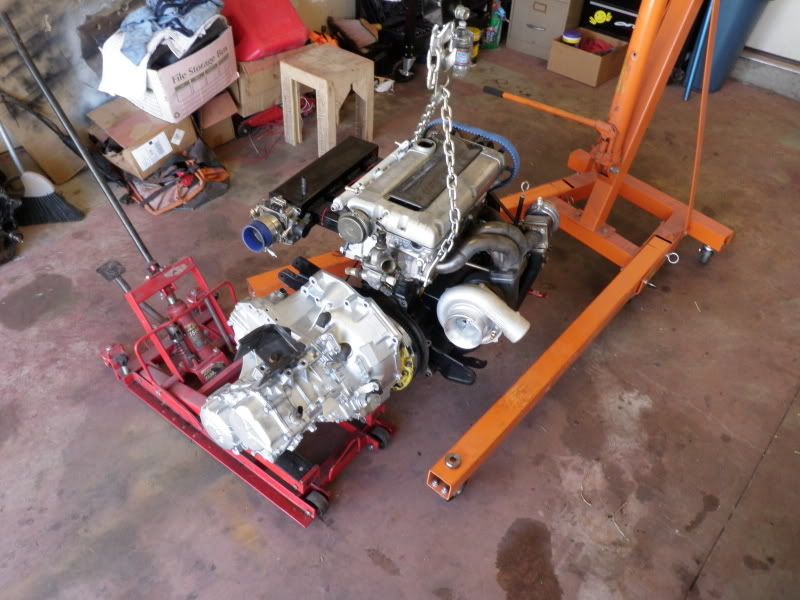

threw it all back together... and put the trans back on the motor

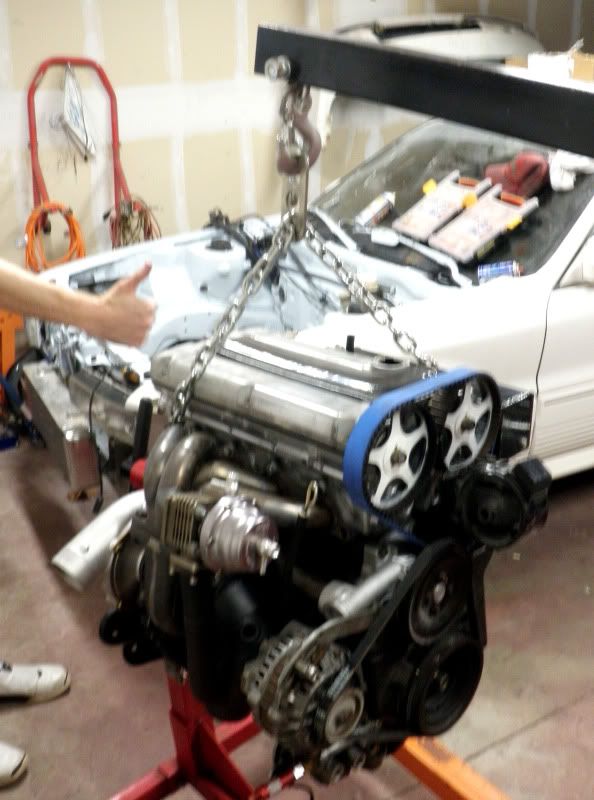

stabbed it back into the car



finished up my down pipe for now...

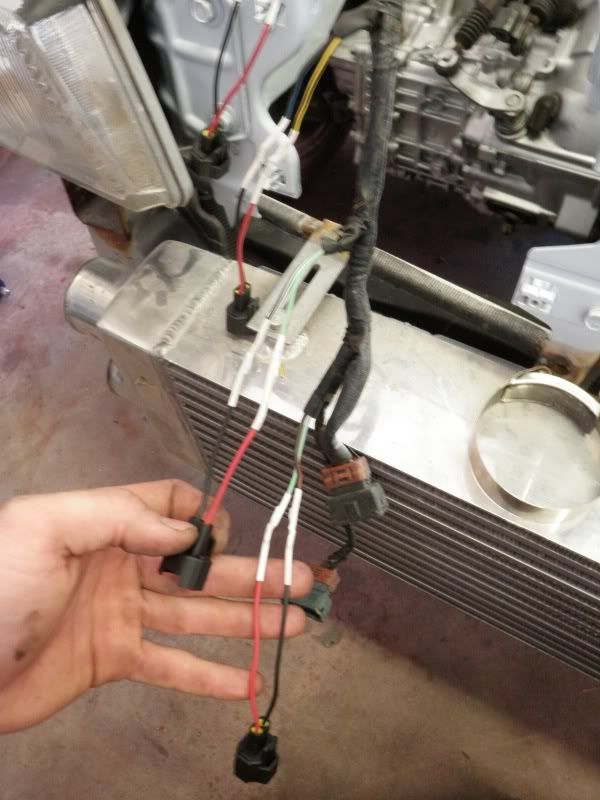

wired in the new plugs for the big ol' injectors (twisted, soldered, then heat shrunk)

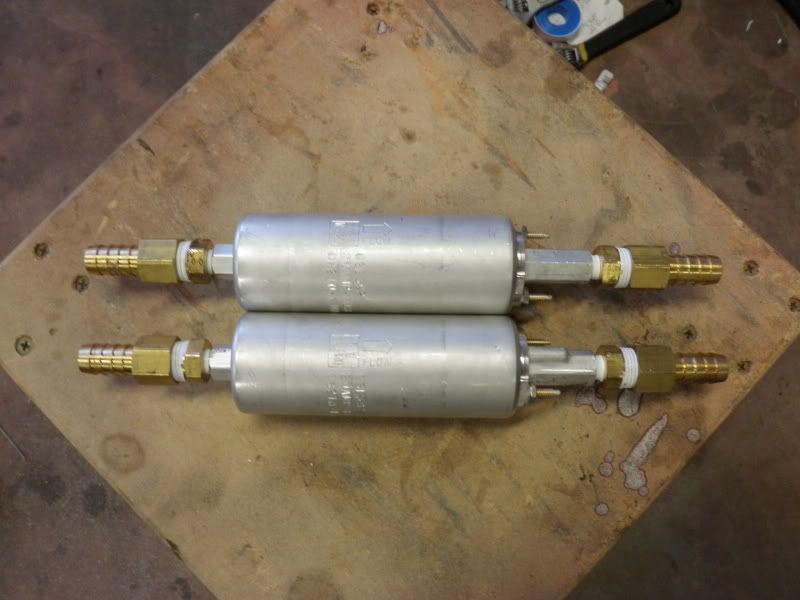

got my fittings all sorted for my fuel pumps... not pretty but it works (had ordered cooler fittings but they were outta stock and refunded and cancelled my order)

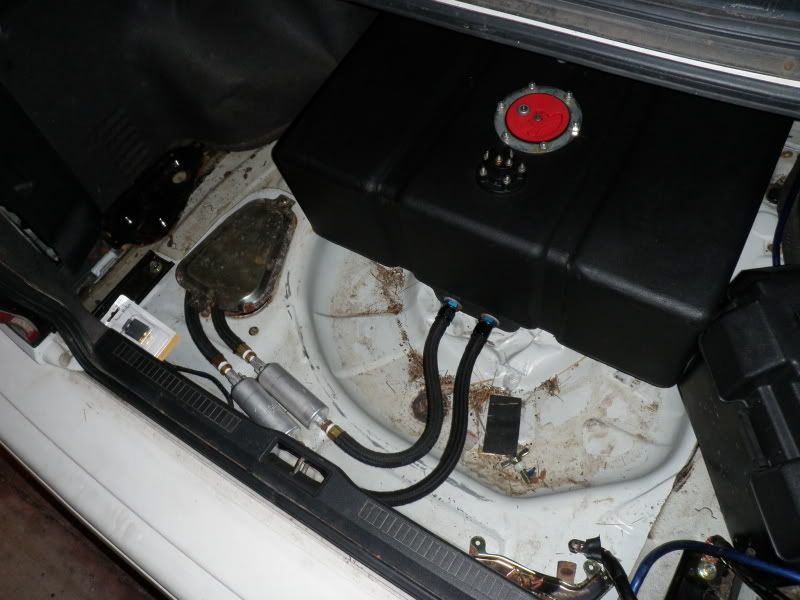

got my fuel feed lines and fuel pumps and inline filter all hooked up (still gotta run my return)

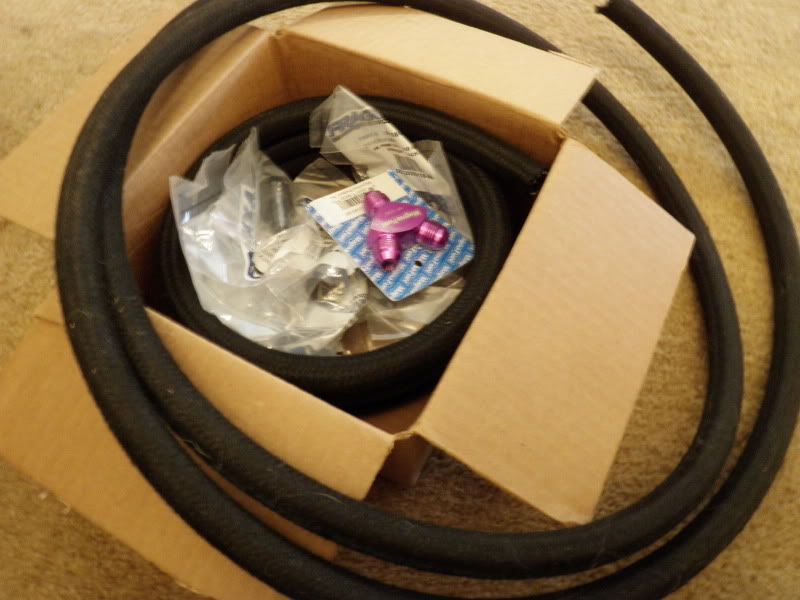

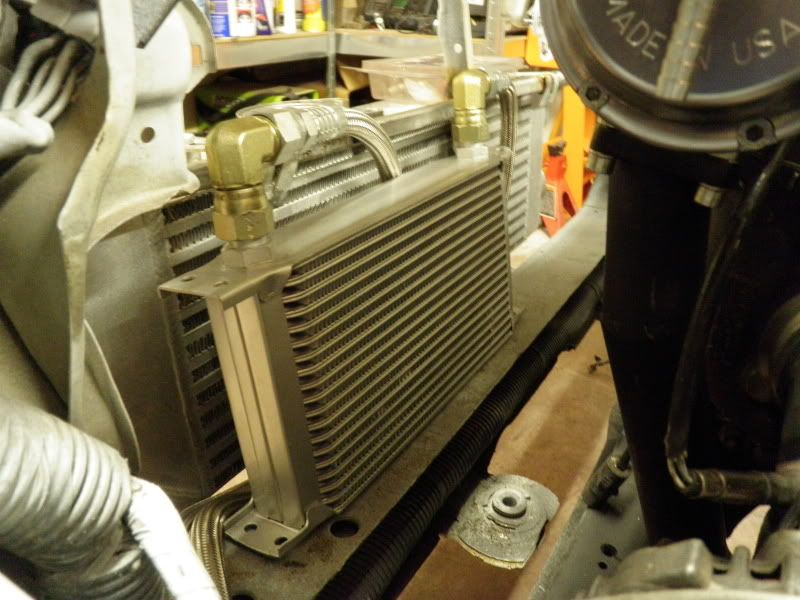

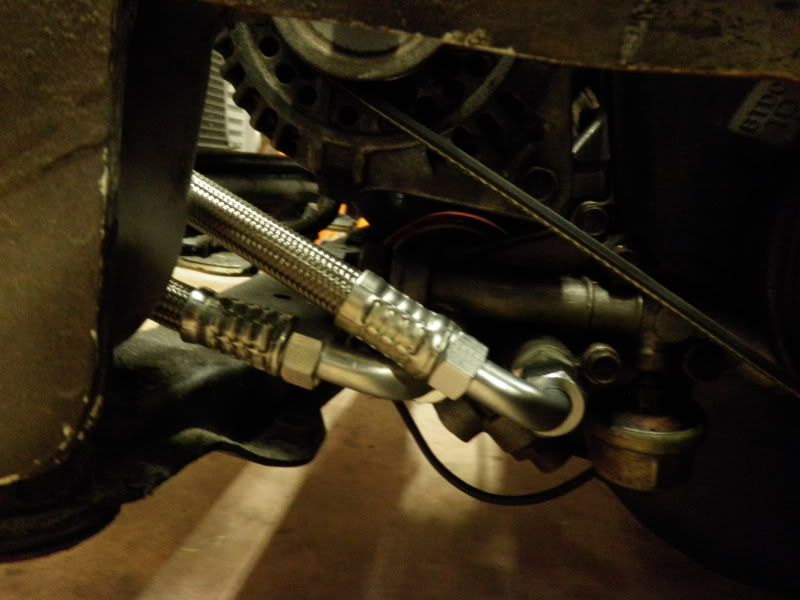

had midwest hose make me some new lines for my new oil cooler, got it put on...





then at the end of the night my car gave me a nice thanks for the hard work and broke the v-band when i was putting the down pipe on.


Last edited by a moderator:

GolfBall

Well-known member
Joined
Aug 28, 2009
Messages
125
Location
Edmond, OK

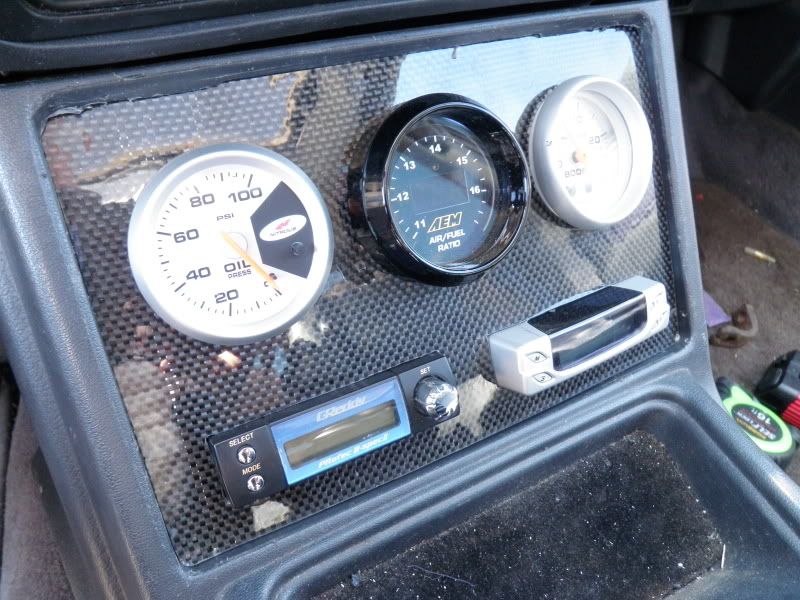

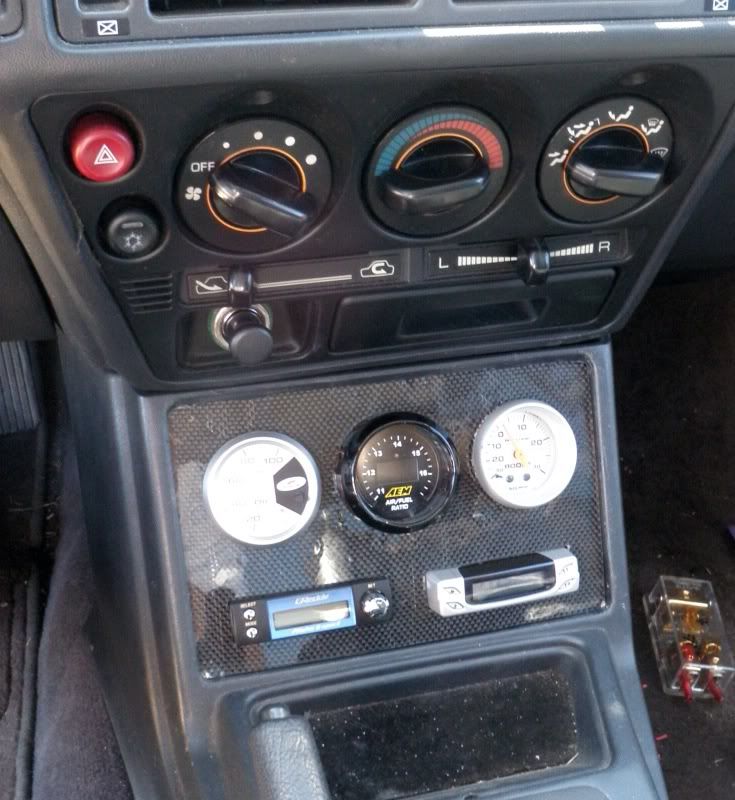

then i mounted my gauges and installed the panel.




oh and....

18 PSI FEELS GREAT !!!!! BRING ON 30 /ubbthreads/images/graemlins/smile.gif


GolfBall

Well-known member
Joined
Aug 28, 2009
Messages
125
Location
Edmond, OK
Quote:

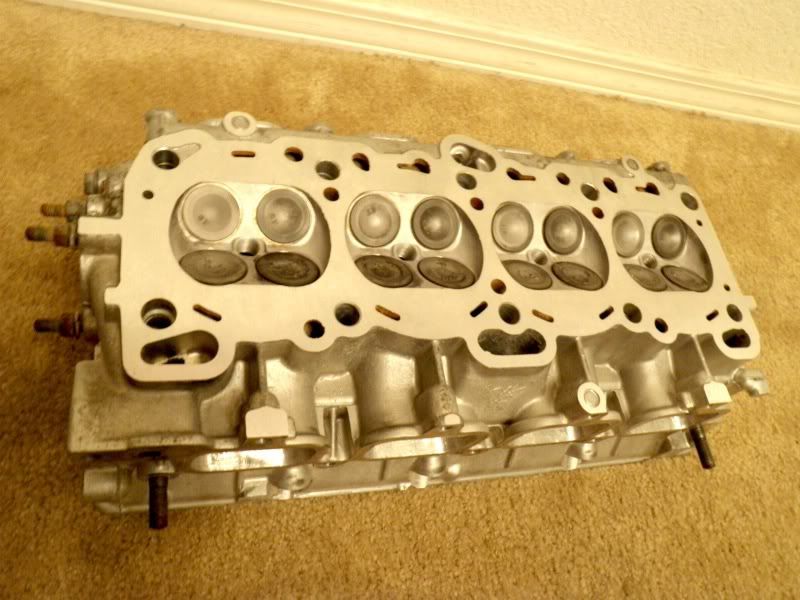

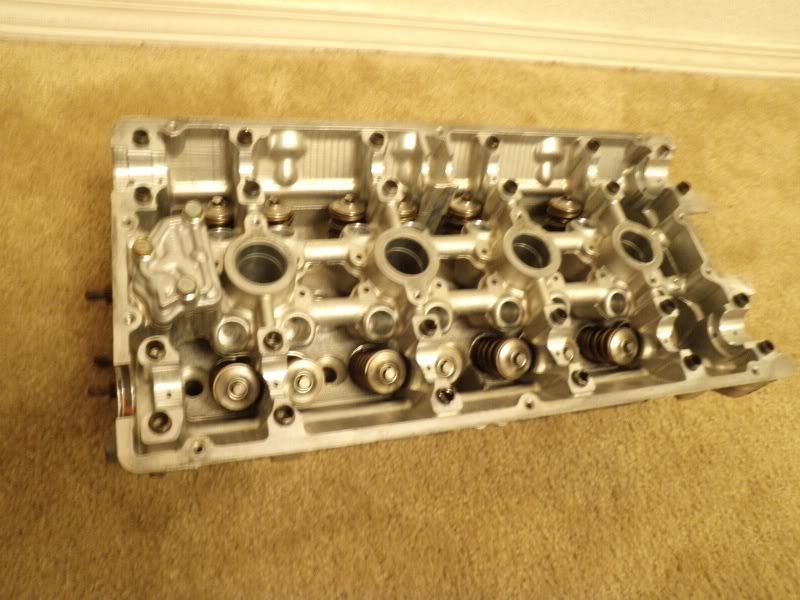

That head is junk, now that you ported the floors of the exhaust ports.



thanks for that worthless input.... i will make sure not to sell you my head then if i ever part the car out.


GolfBall

Well-known member
Joined
Aug 28, 2009
Messages
125
Location
Edmond, OK
yeah sorry about that...

i wasn't paying attention and exceeded my limit on photobucket. it will reset in a few days and be fine again.


So what turbo setup did you go with I just saw mention of FP but nothing else...


GolfBall

Well-known member
Joined
Aug 28, 2009
Messages
125
Location
Edmond, OK
precision 6262 - billet non ball bearing.

got some more done...

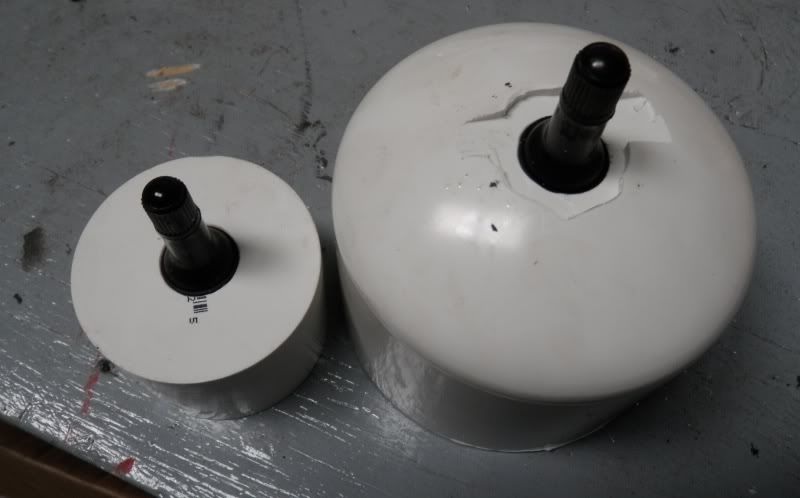

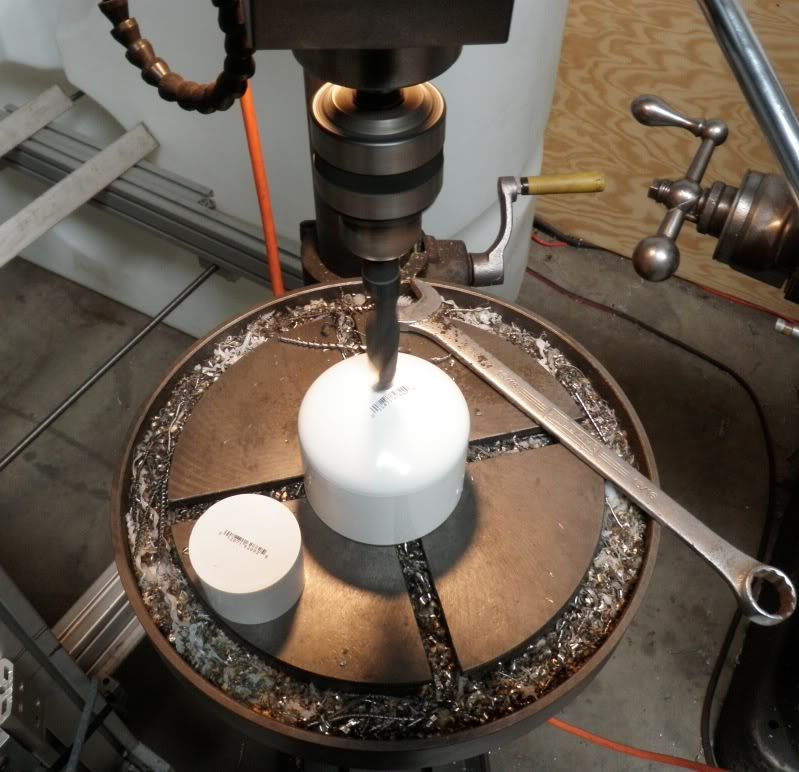

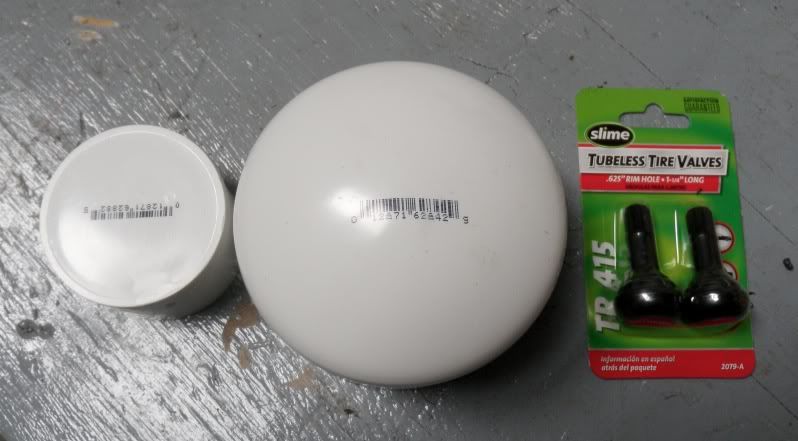

did a boost leak test but first had to make a 4 inch boost leak tester.

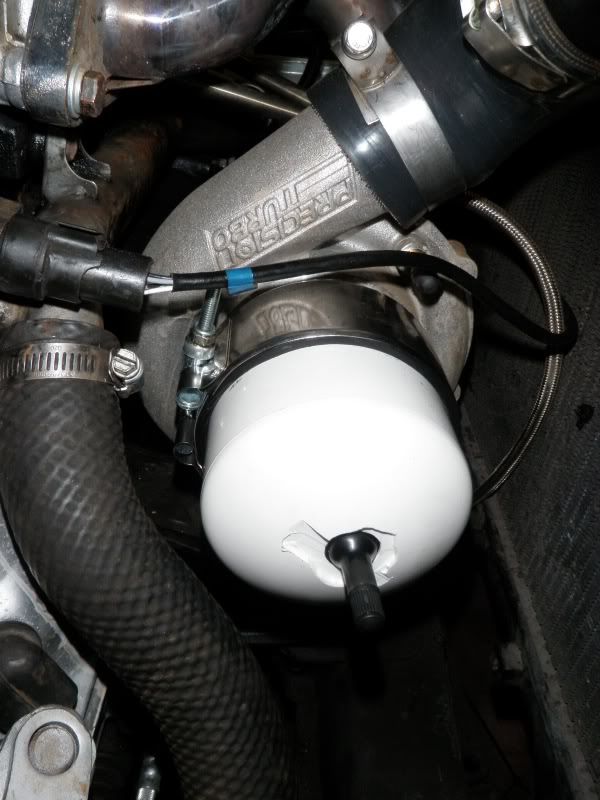

then simply clamps to the turbo

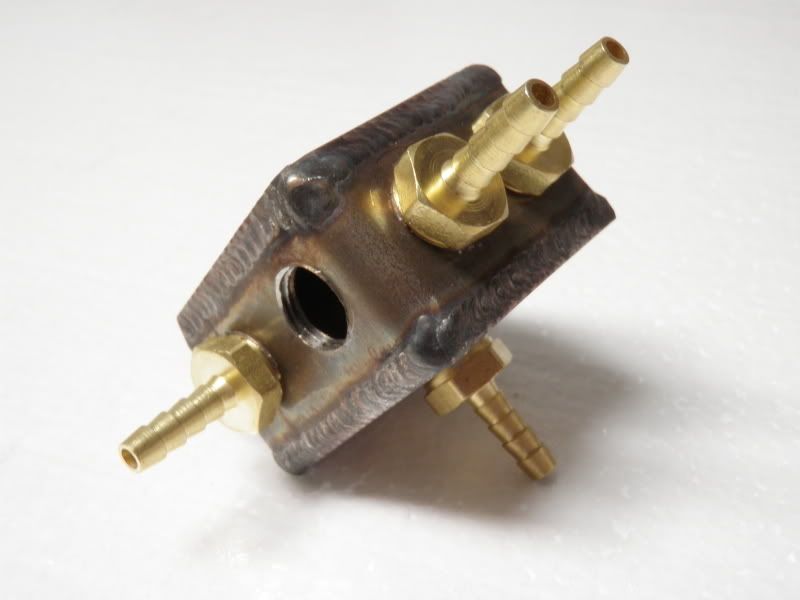

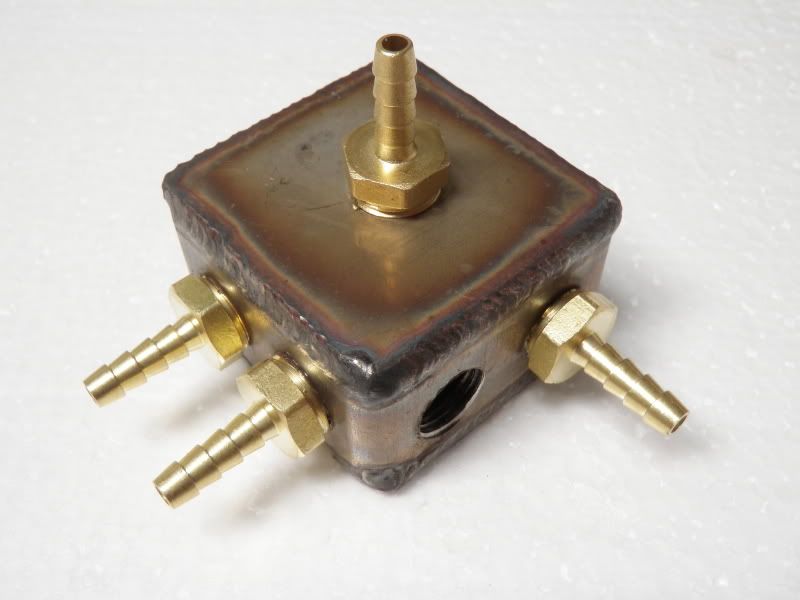

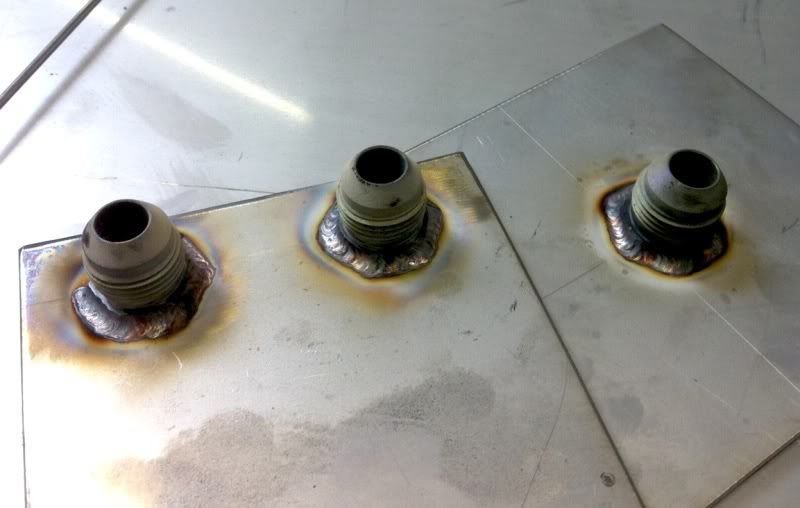

then to clean up my vacuum system i was gonna buy a distribution block and then saw they were 50 bucks and said nope.... so i made one.

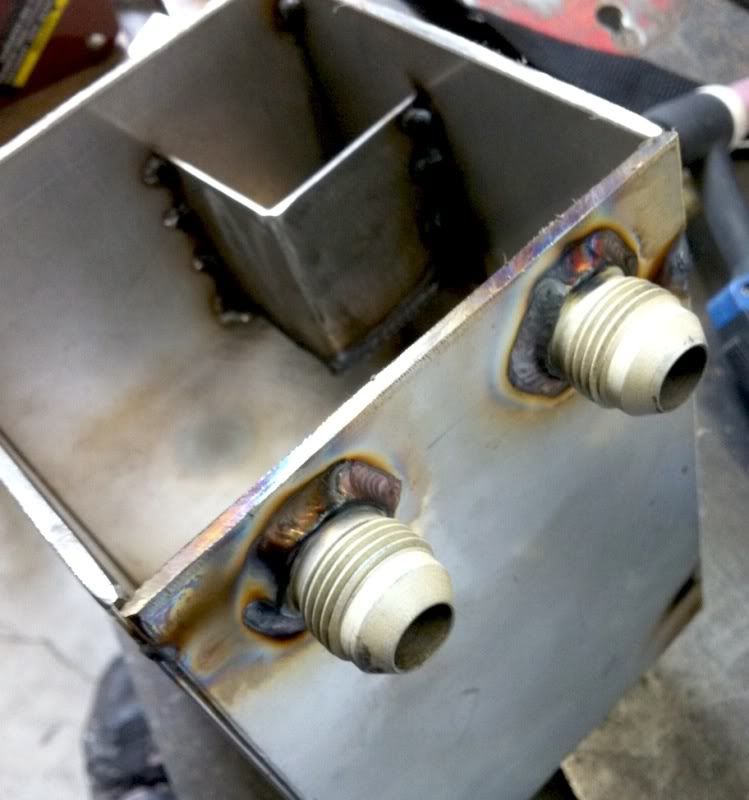

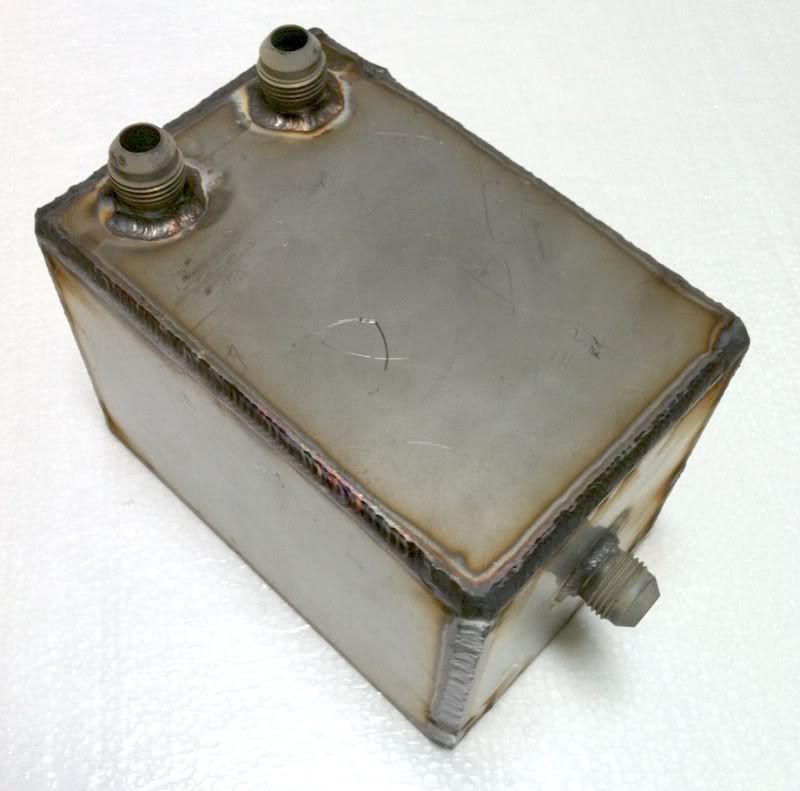

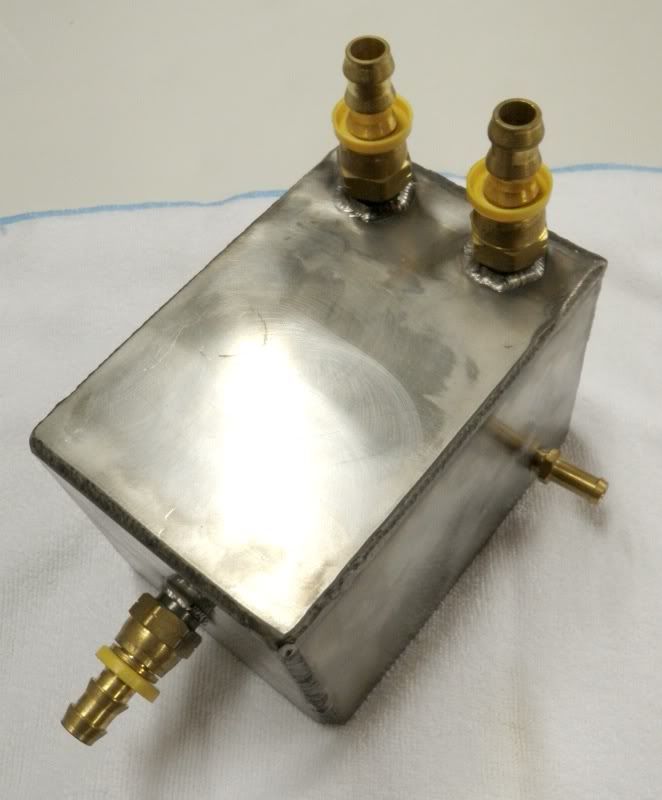

made a catch can the other day after work... its gonna be a real one to...

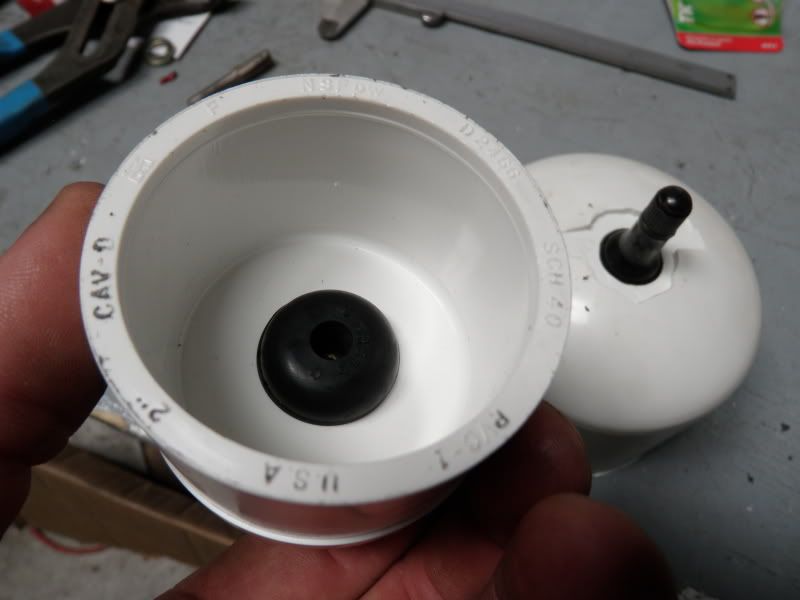

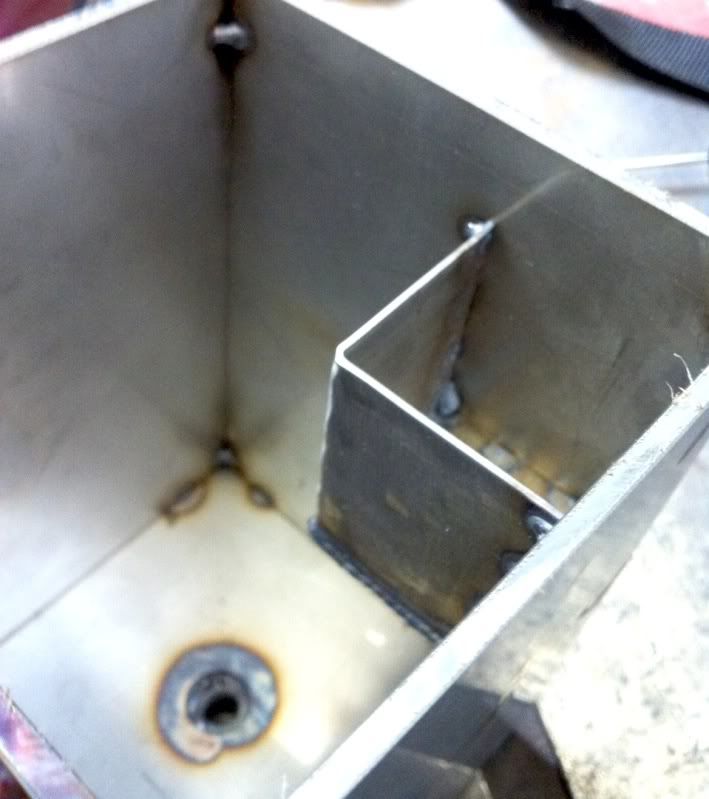

the baffle inside is where the vacuum port is to keep oil from gettin to it.






obviously none of the welds are cleaned up in this pics and it still doesn't have the vacuum port on but you get the idea.

cleaned up a bit and with my vacuum port added onto it.

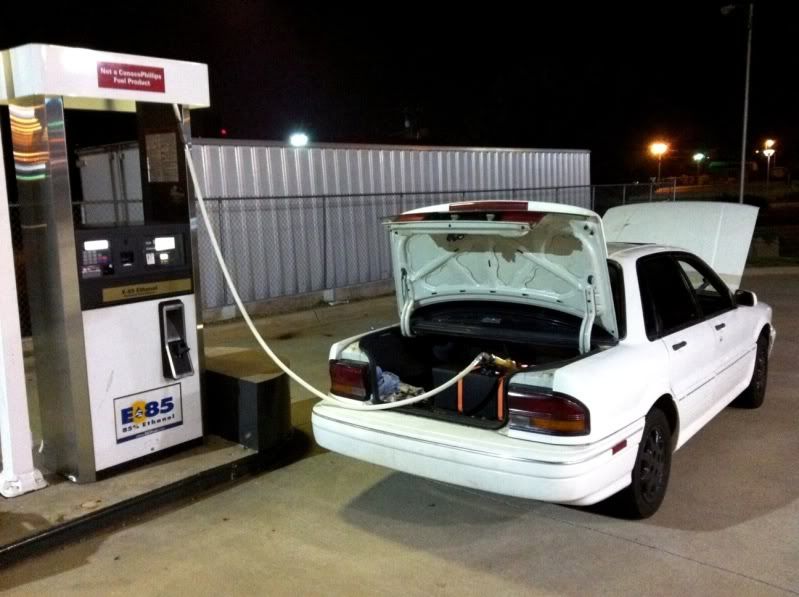

got some more E-85... hehe..

NO officer... this isn't a race car, its totally street legal.

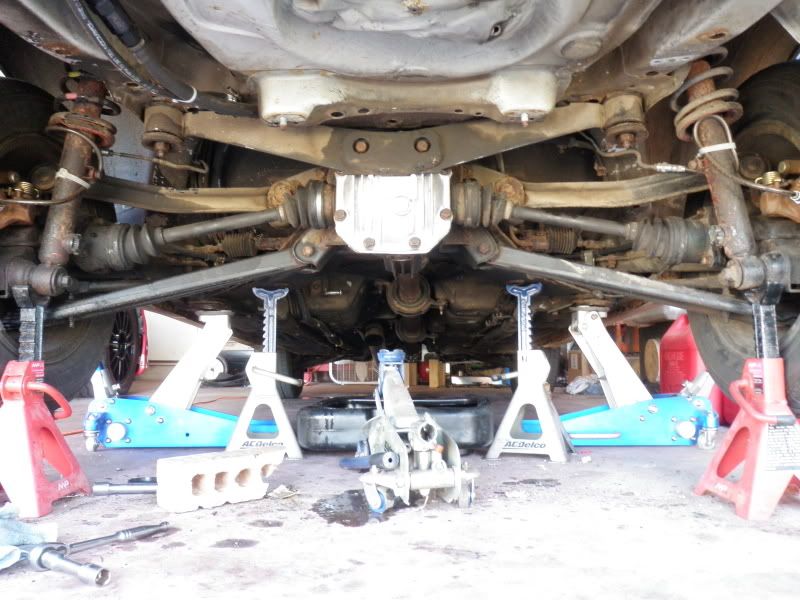

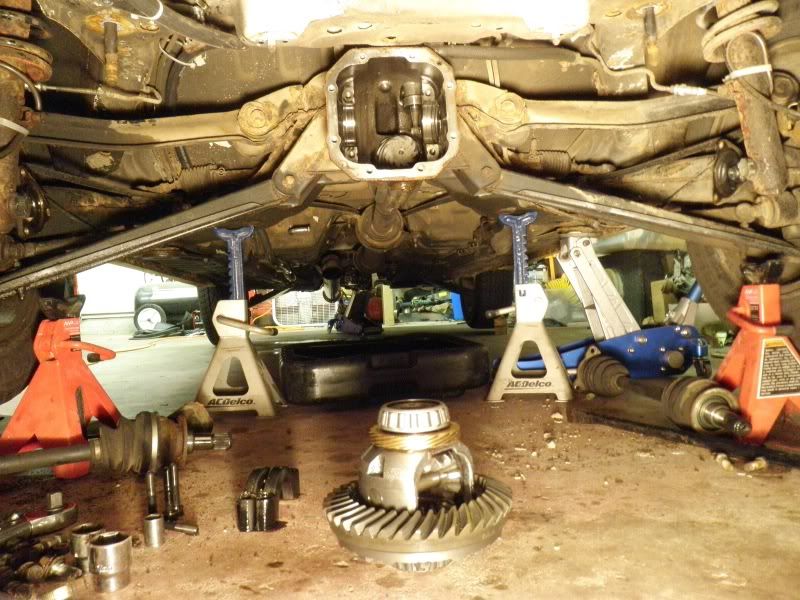

pulled my diff to weld it up...



19 years and 175,000 miles and it looks brand new...

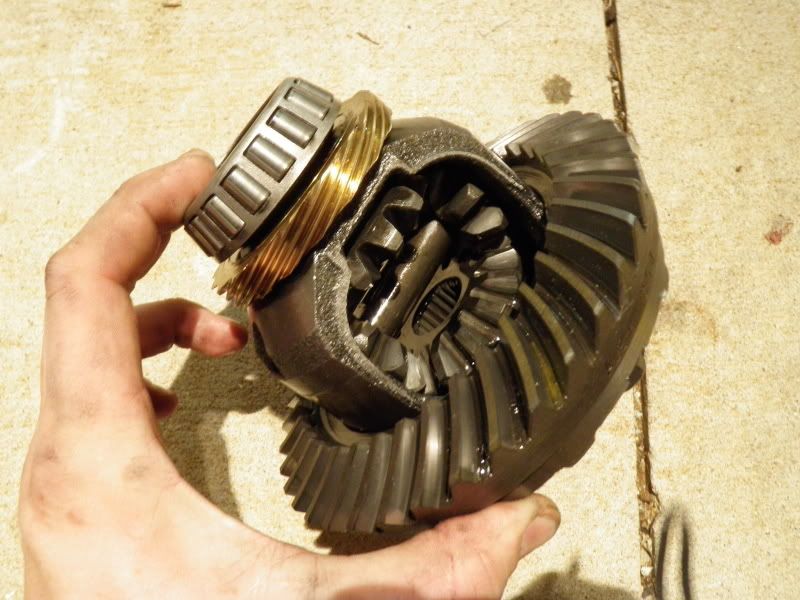

finished the diff and got it all back together.



Nice choice on the turbo my boy runs the same one on his 10sec DD evo the DBB version though.

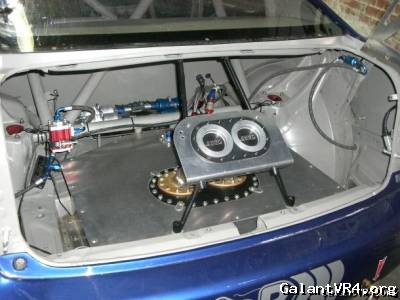

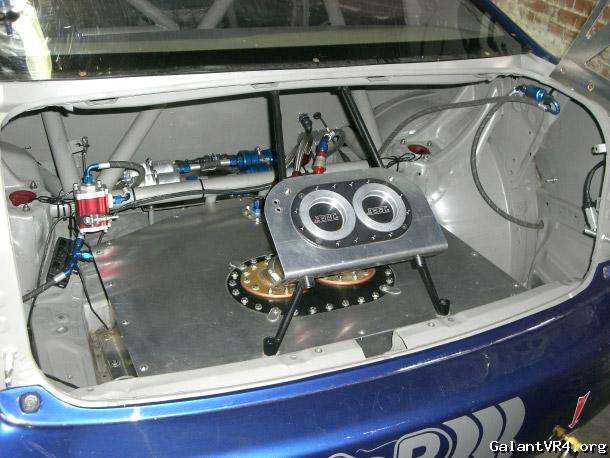

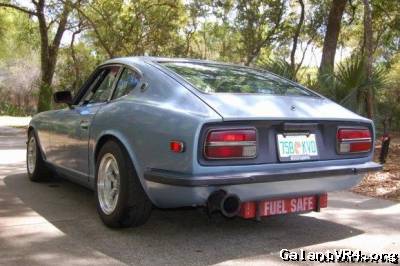

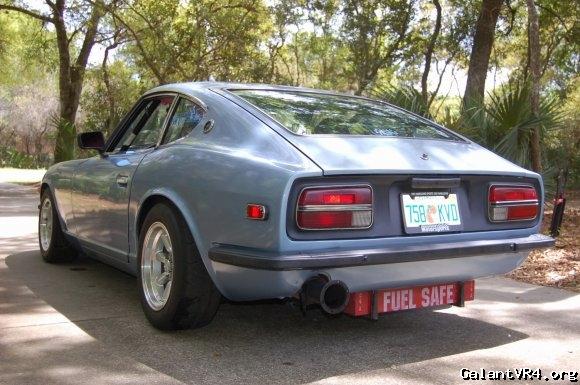

Out of curiosty though why didnt you mount the fuel cell under the car or at least do something like this


or

Last edited by a moderator:

Brianawd

Well-known member
Joined
Apr 18, 2005
Messages
2,117
Location
Portland OR,
Wow. All that work to weld up a 3bolt rear /ubbthreads/images/graemlins/banghead.gif once you brake a axle you fu-ked. You will never get the chunk of axle out. You would have been better off just putting in a 4bolt now.
