#1900 - 'GOLFBALL' build - 2.4-AUTO-NITROUS.... Street car?

[BluFalcon]

You might want to reclock the CHRA on the turbo so that the drain is facing directly down. The oil isn't under any pressure when it leaves the bearing housing, so you want the drain flange to be pretty much oriented as straight down as you can get it.



[1badgvr4]

Paint the door trim ASAP.



[Boostdtalon]

good deal man, love the work your doing. /ubbthreads/images/graemlins/applause.gif



[1990ggsxnj]

Quoting 1badgvr4:
Paint the door trim ASAP.


I concur. Cars always look a bit more updated and cleaner with the trim painted the same color as the car IMO.



[GolfBall]

Quoting BluFalcon:
You might want to reclock the CHRA on the turbo so that the drain is facing directly down. The oil isn't under any pressure when it leaves the bearing housing, so you want the drain flange to be pretty much oriented as straight down as you can get it.




hahah not wanting to be rude.... but i find it really funny how people keep telling me that.... like i clocked it like that on purpose....


anyways yeah thats as straight as it possibly will go cause the motor mount is in the way.... just a stupid combo of that turbo with that manifold just causes bad interference with the front motor mount....



[GolfBall]

Quoting 1badgvr4:
Paint the door trim ASAP.



if your talking a out the trim around the windows then HELL YES.... thats the first thing up cosmetically after i get it running decent. /ubbthreads/images/graemlins/smile.gif



[1990ggsxnj]

It seems like there's room for it to point more towards the oil pan by the persepective of the photo (which may not be in all actuality). If that's the case, I would do that before pointing somewhat away from the pan first.



The drain might be OK but you really want it pointing as straight down as you possibly can. Yes th mount is in the way & just because of where the mount is located. Most of us running a larger turbo simply cut a notch in the mount to clear the drain line. It's something that's been done many times over the past 19 years without any drawbacks. I think Terry has some pictures posted, I'll try to find them.

EDIT: Found the picture



Nice save. Love the fabrications,and the whole golfball name. Very fitting.



[GolfBall]

Quoting Garfield Wright:
The drain might be OK but you really want it pointing as straight down as you possibly can. Yes th mount is in the way & just because of where the mount is located. Most of us running a larger turbo simply cut a notch in the mount to clear the drain line. It's something that's been done many times over the past 19 years without any drawbacks. I think Terry has some pictures posted, I'll try to find them.

EDIT: Found the picture




yeah must turbo and manifold combo just must be weird caues i chopped a TON off that motor mound.... like the whole right side is gone and it still wont fit.

i basically will have to make a new motor mount or find a way to move it over.... im out of town otherwise i would take better pics to show you.

which the head it leaking (valve stem seals) anyways and smoking like crazy so im prolly gonna get the head rebuilt so while the head is off is a perfect time to mess with that mount.



[BluFalcon]

I had a PTE turbo on my Talon and ran into the same issue you did. Rather than notch the mount, or reclock the CHRA, I used a 45 degree fitting off the drain flange to a 45 fitting going into the line. The line then went straight into the oil pan. I know that the motor brackets are different between the 1G AWD DSM's and GVR4's, but with the mount notched already it should clear with the CHRA in the proper position.

Does the car smoke @ idle or WOT? If it's WOT, then it might be the turbo causing some of your smoking issues. The first drain line I made was made using -8 line/fittings. The line wasn't large enough and couldn't handle the amount of oil going into the bearing housing @ WOT. Oil blew past the turbo seal rings and out the exhaust making a very large smokescreen. Thought I had blown the turbo, or something in the motor. Resized the line with -10 hose/fittings and no issues afterwards. With your turbo clocked like it is, and some of the fittings you're using on your return line, it's possible you may have oil backing up in the housing causing the smoke. Just something to think about if it is smoking under boost.



[chucklesas]

I think the issue probably stems from having to go from the flange, then a male-male fitting to a big-ass 90. I think if you had a flange with the male fitting on it and a 45 degree it might clear. I just happen to have an extra turbo oil outlet flange here. I'm heading out of town, but when I get back maybe we can figure that part out.



[1badgvr4]

Quoting 1990ggsxnj:
Quoting 1badgvr4:
Paint the door trim ASAP.


I concur. Cars always look a bit more updated and cleaner with the trim painted the same color as the car IMO.

Uh /ubbthreads/images/graemlins/idea.gif I meant paint them back black.



[Adorsey]

^ yeah paint them black, lol.
then take off you door handles and paint those white /ubbthreads/images/graemlins/grin.gif thats something I might be doing that sooner er later.



[GolfBall]

well been a while since i updated... went wit a diff turbo and wastegate and have been waiting on parts and stuff...

so this was the old setup...

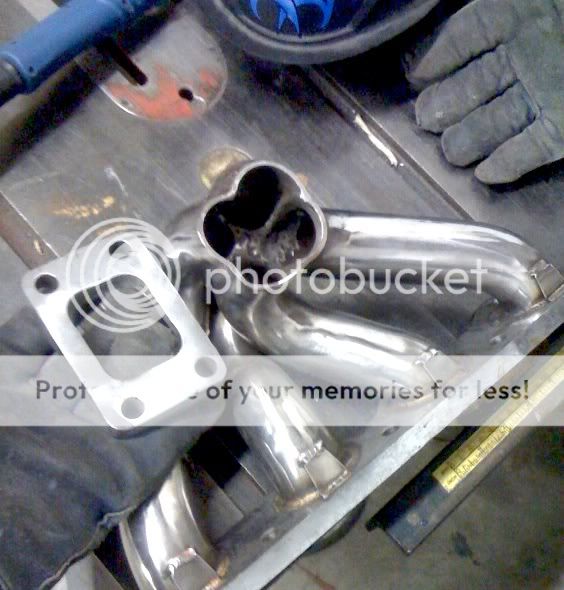

manifold sucked balls and was nothing but headaches from day one.... so i ordered a cheap tubular manifold....

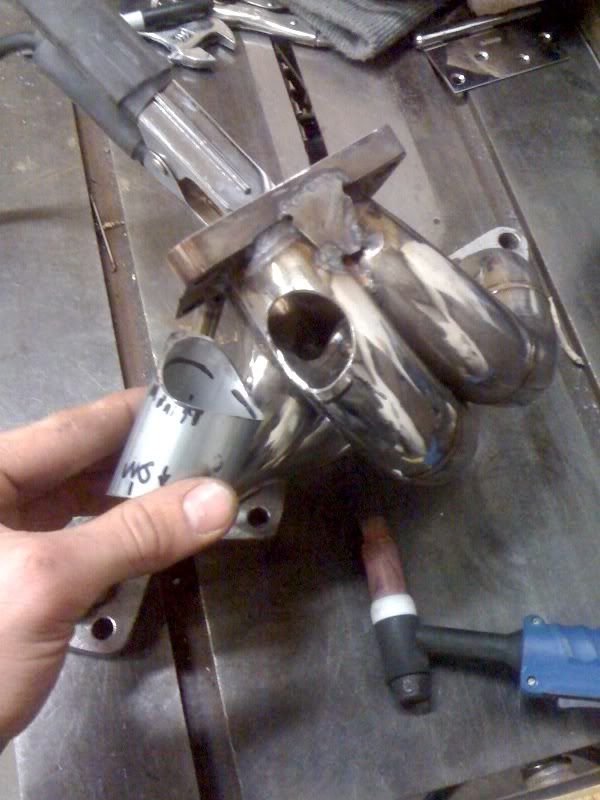

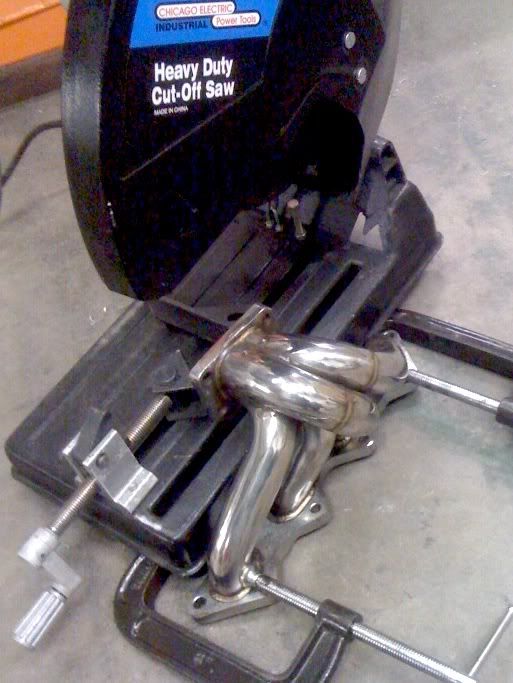

it also didn't fit worth a crap so i said f it... chop that sucka up....

cut the flange off it...

then since it was a cheap mani it didn't have a external waste-gate port so i made one....

started by cuttin a whole in the collector...

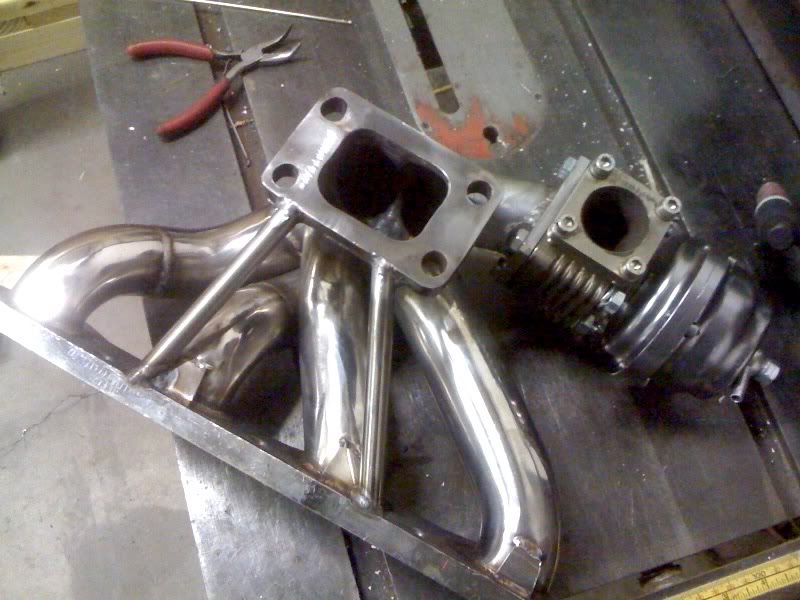

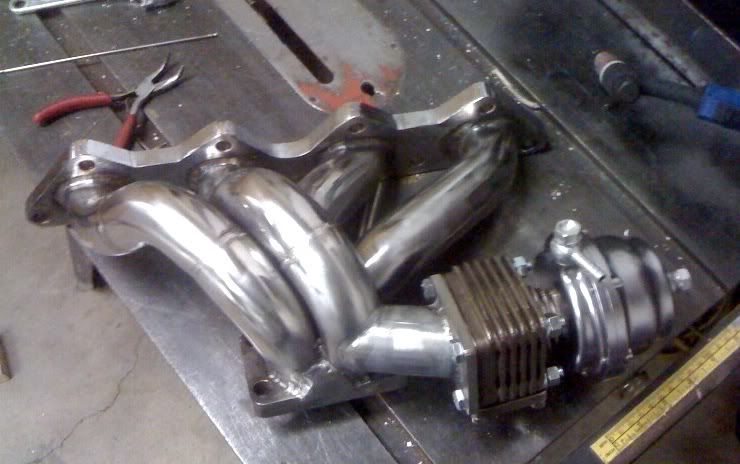

then welded on a pipe and a flange i made for the wastegate....

also figured why not so i added some support bars to keep the welds from cracking from the weight.

also re-did my down pipe for the third time to work wit this new manifold....

got the windows tinted too which made it look was better... gotta take some pics.



[GolfBall]

I haven't posted in forever and a bunch has been going on.... MOSTLY life sucking and turbo blowing up...

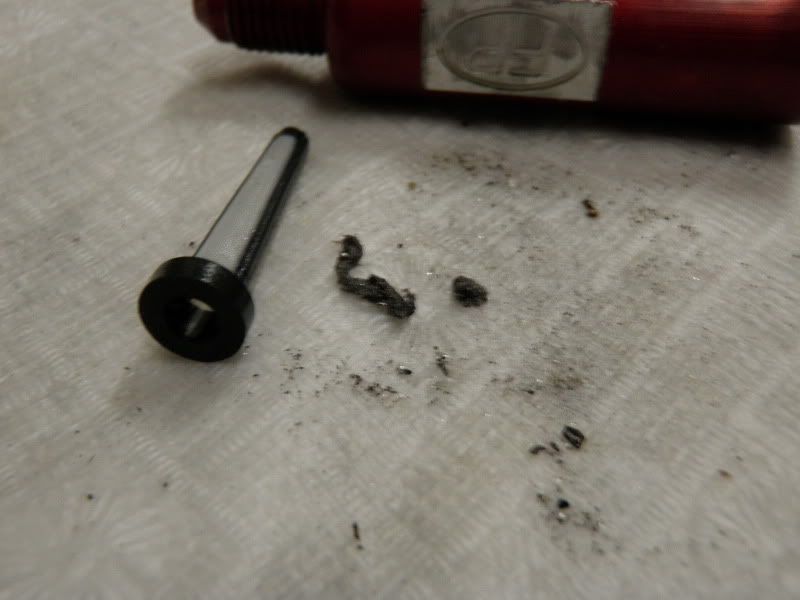

to try and keep from blowing up turbo's got an inline oil filter...

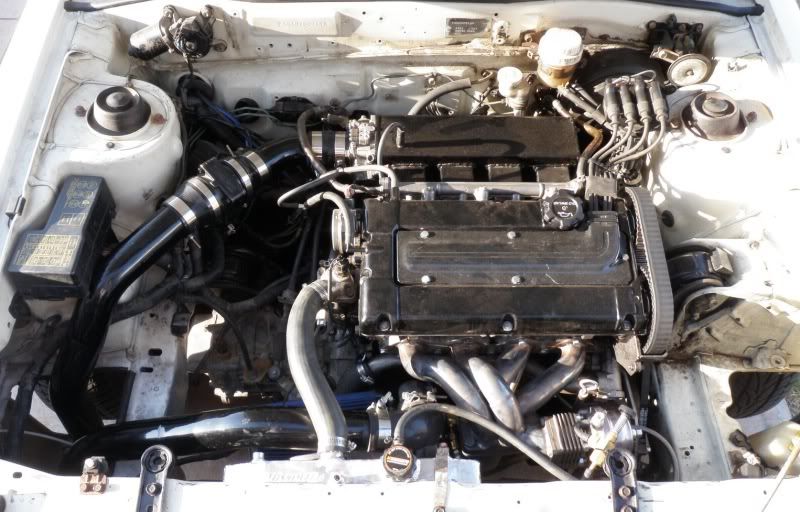

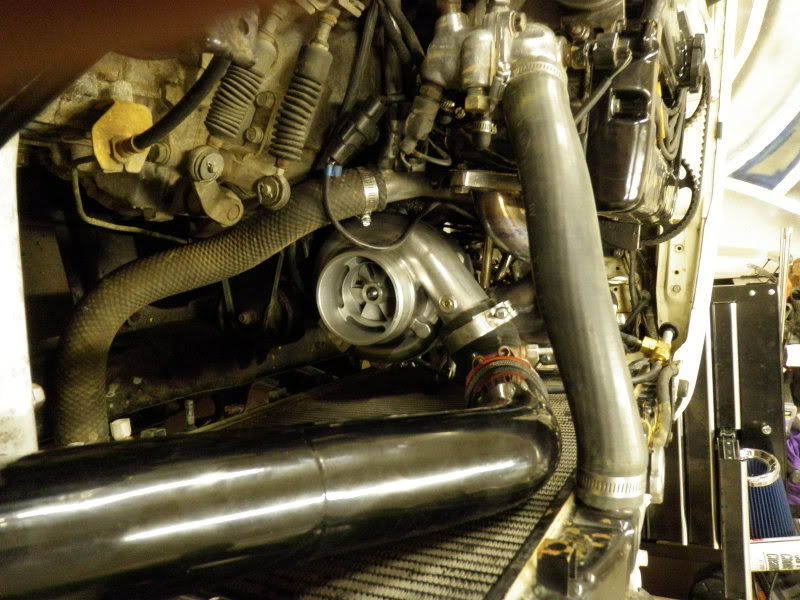

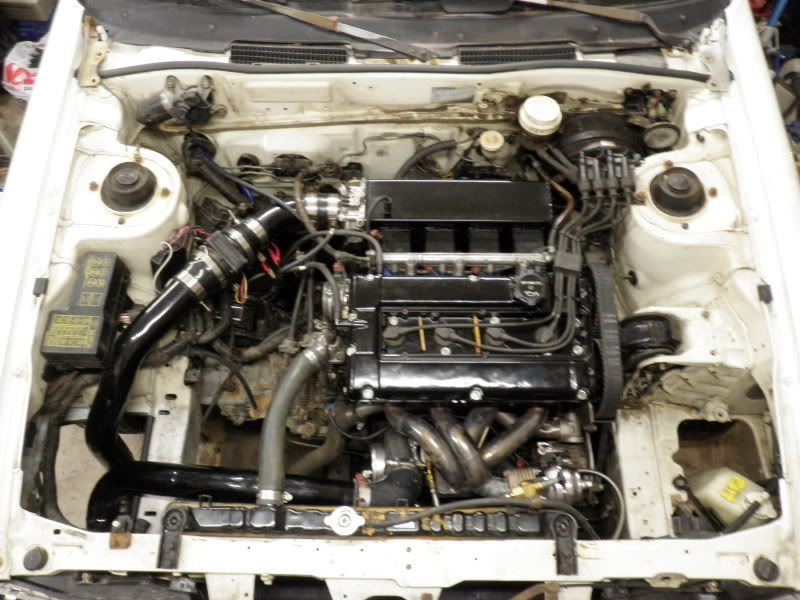

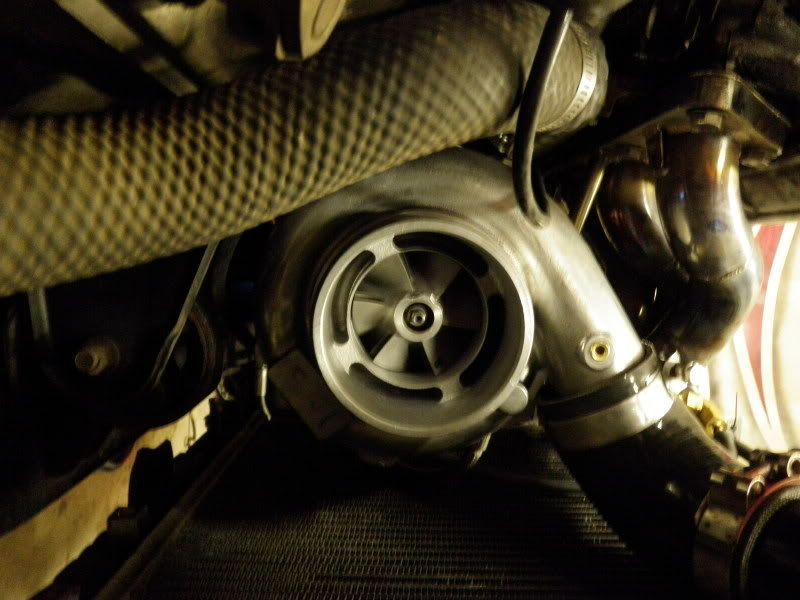

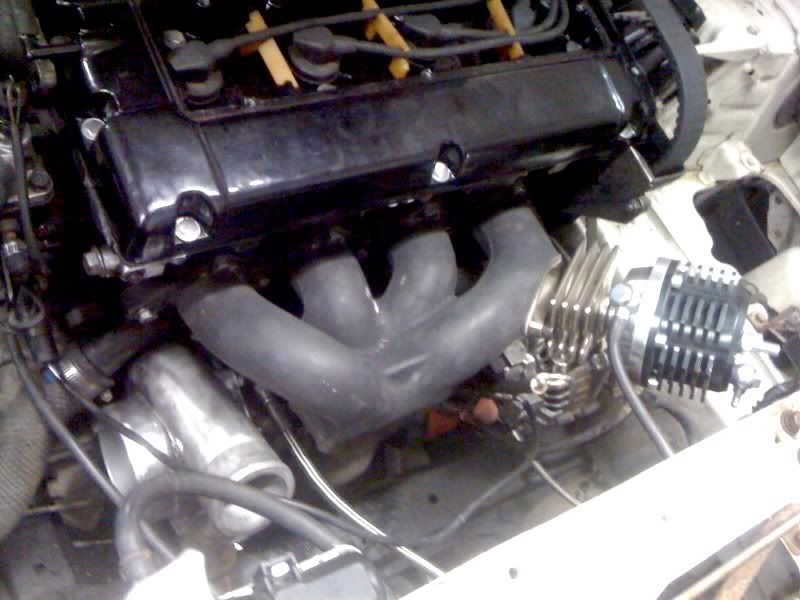

here are some pics of it all back together....

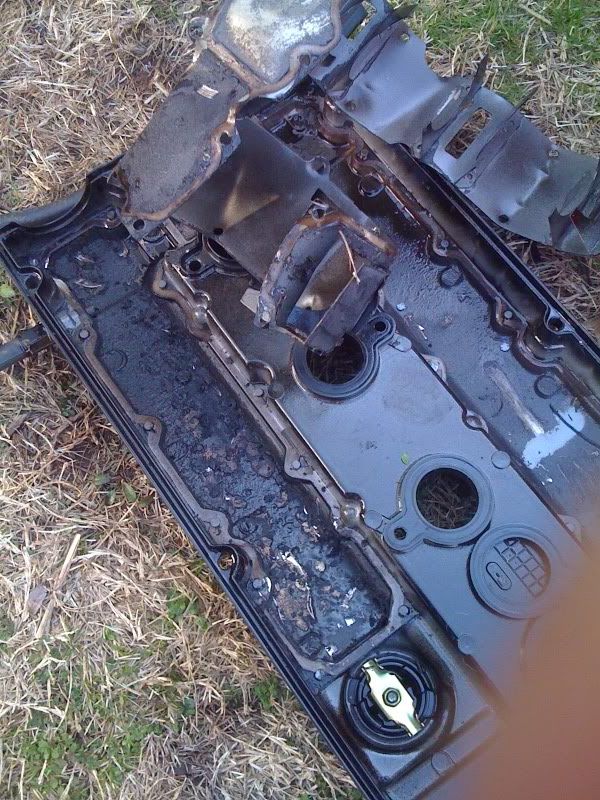

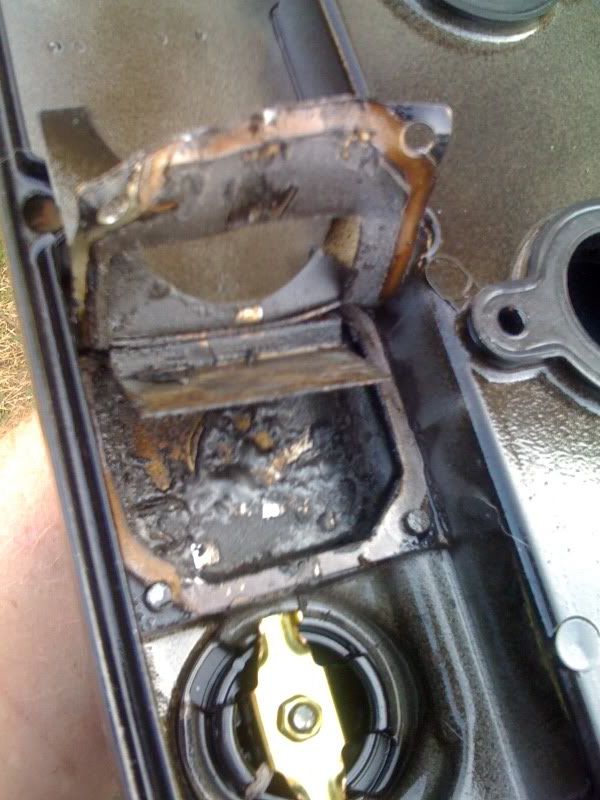

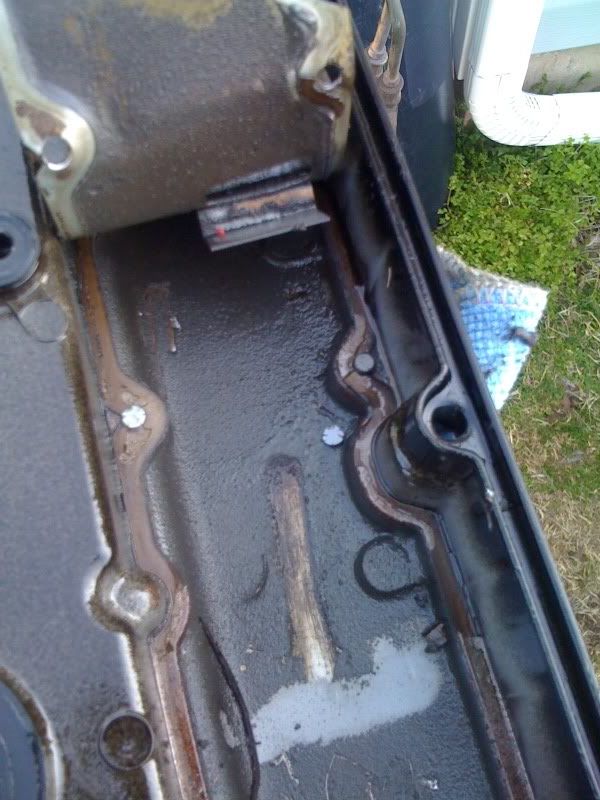

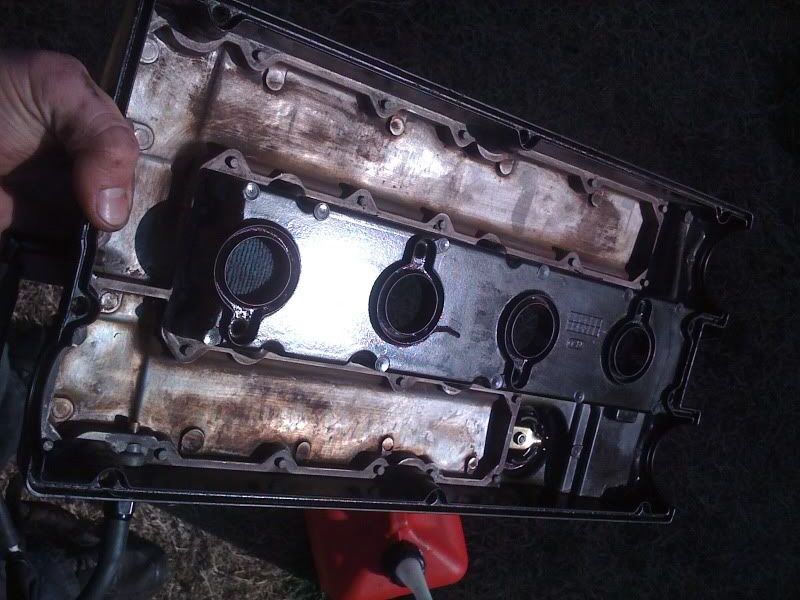

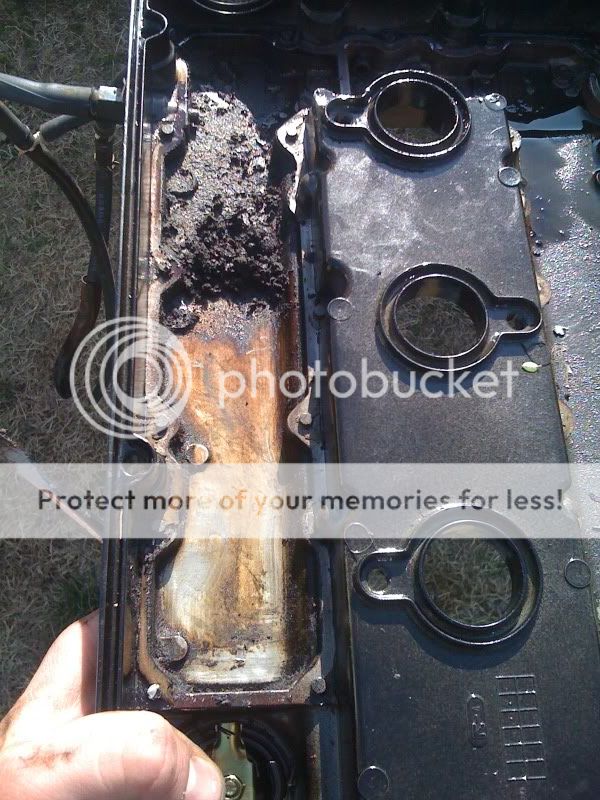

here is where i think most of it came from, i talked to a tech at FP who knew a ton and he asked if i had my valve cover powder coated i said hes and he said to check the baffle under it for crap.... well mine had crap /ubbthreads/images/graemlins/smile.gif

finally all cleaned up...

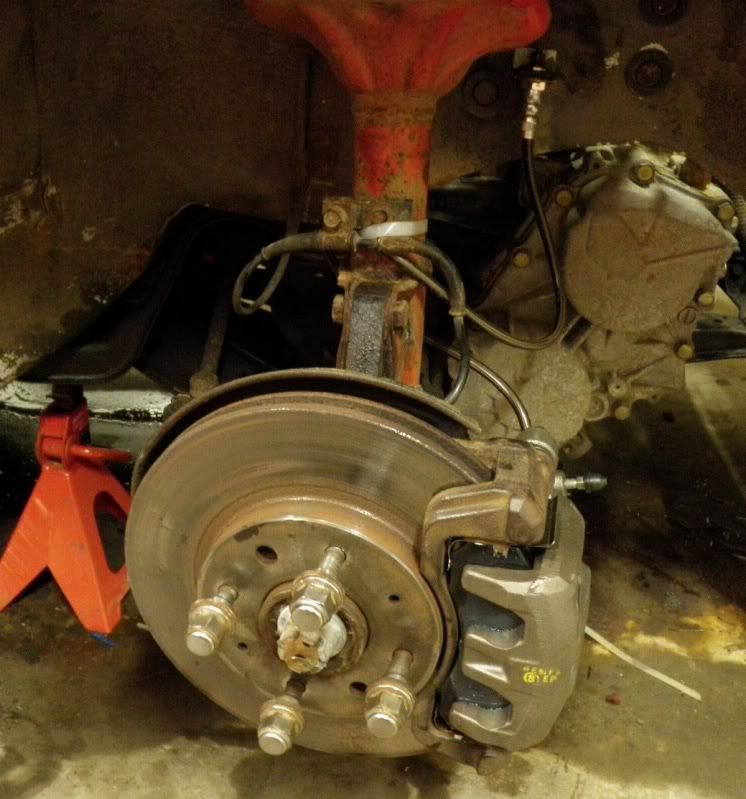

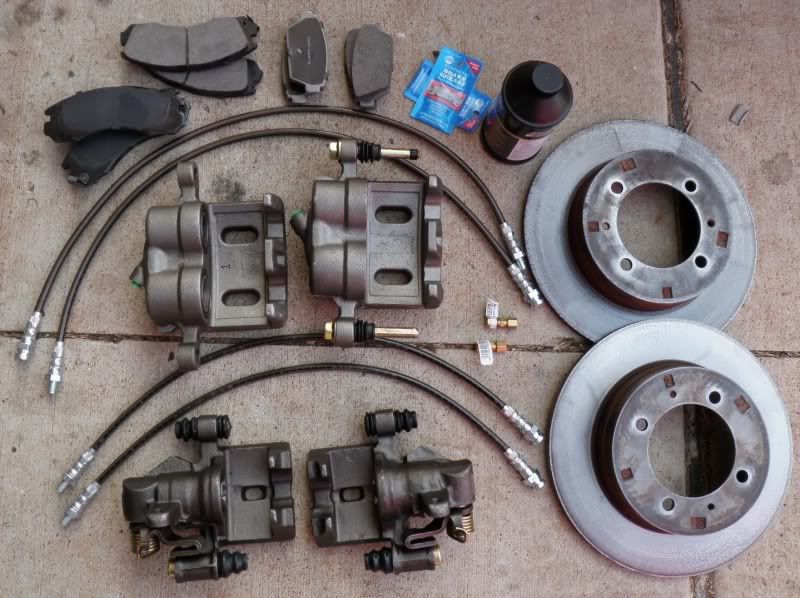

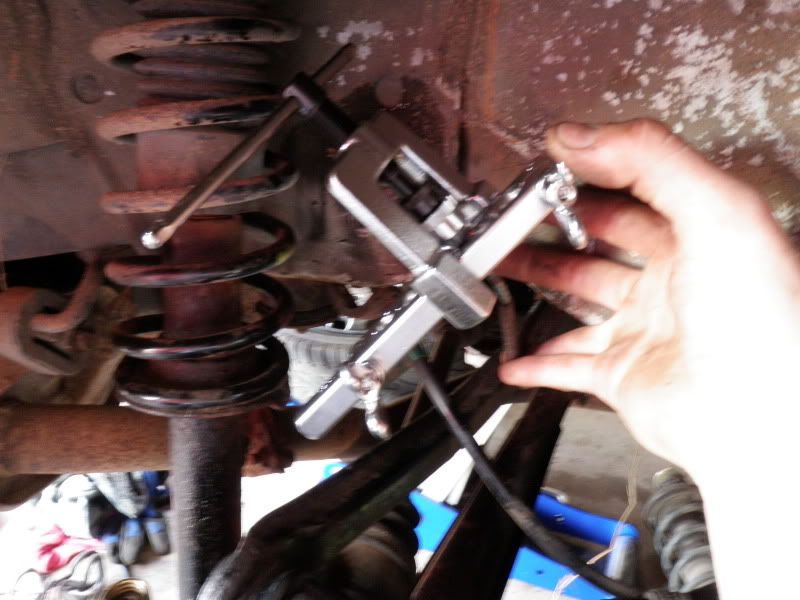

the brakes were awefull so to fix it...

4 - remanufactured calipers
4 - SS brake lines
4 - ceramic brake pads
resurfaced my calipers

the fittings and lines on the back brakes were trash so i cut em off, re-flared the lines and put new fitings on with the ss lines.

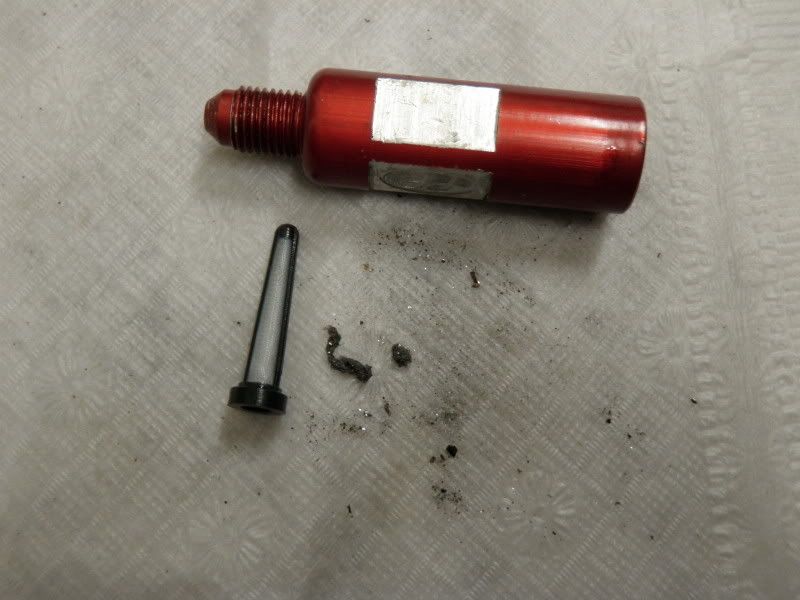

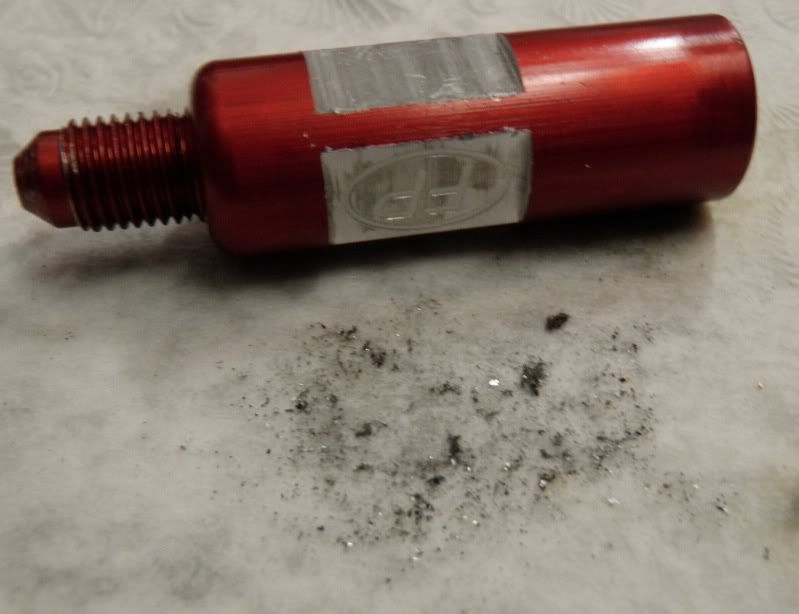

checked my oil filter again.... still gettin junk but its gettin less and less...

lastly... put in a new aluminum radiator with slim fan and had a hell'of'a time wiring it all up for some reason my car wasn't happy using the wiring from the old fan and i had to re-wire all of it and move the temp sensor to the thermostat housing...

put in a new clutch and lightweight flywheel (dont have any pics of that one)



[GolfBall]

So quick recap:
-kept blowing up turbos (even with the inline oil filter)
-got sick of it and decided to go big with a diff motor

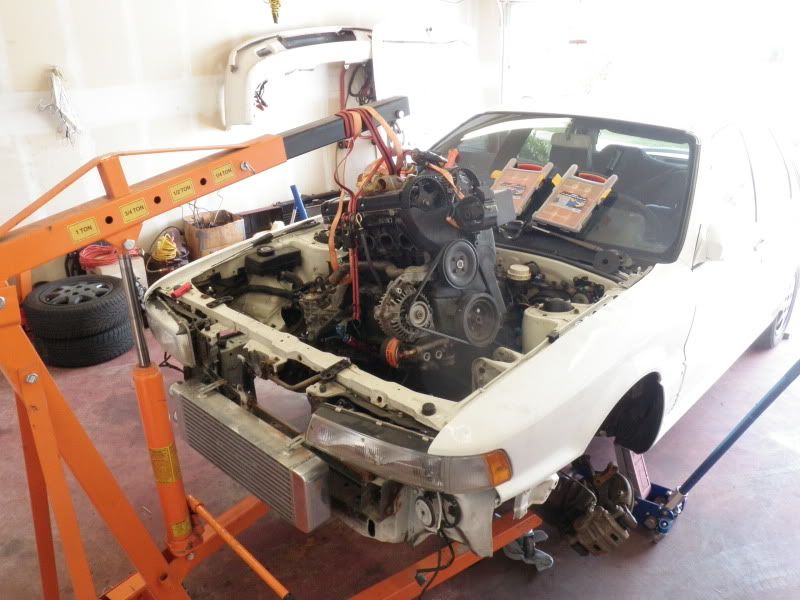

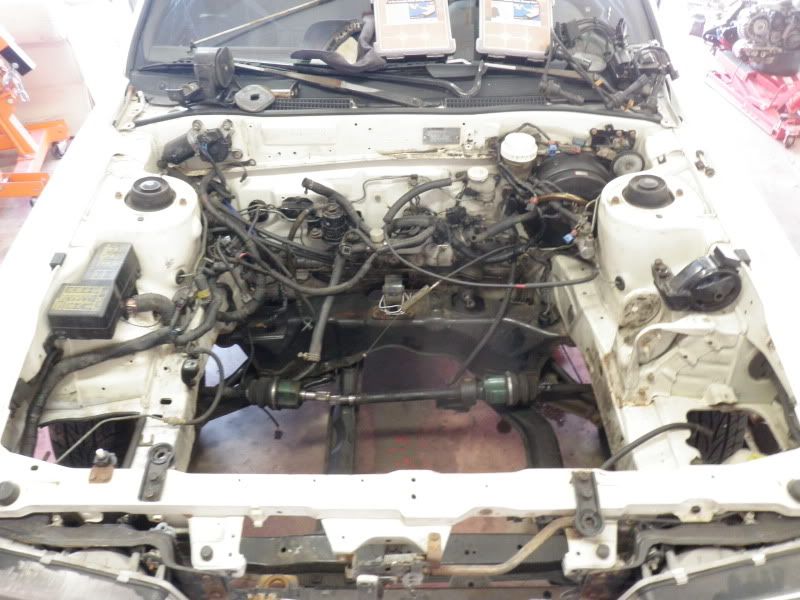

yanked the stock motor and trans out...

yikes what a mess hun? dont worry it will get tucked/shaved/sprayed and look awesome

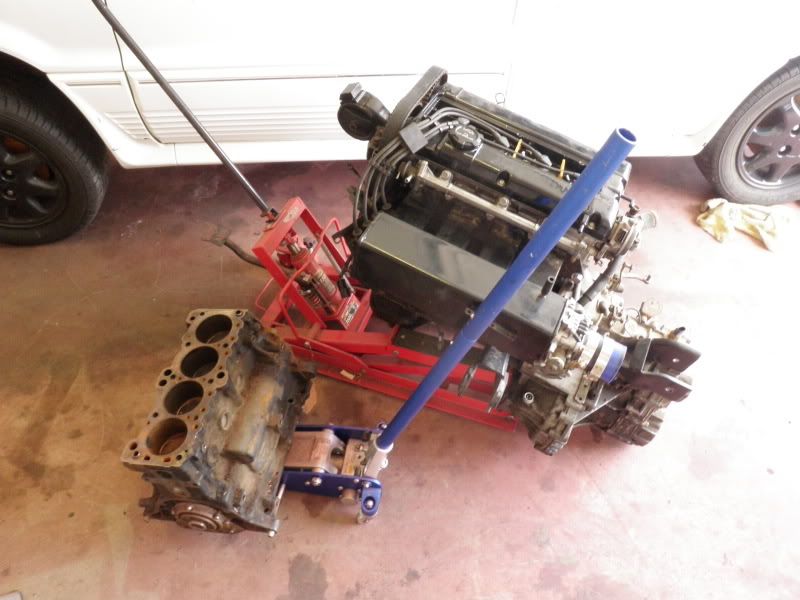

new motor getting some advice from my old one...

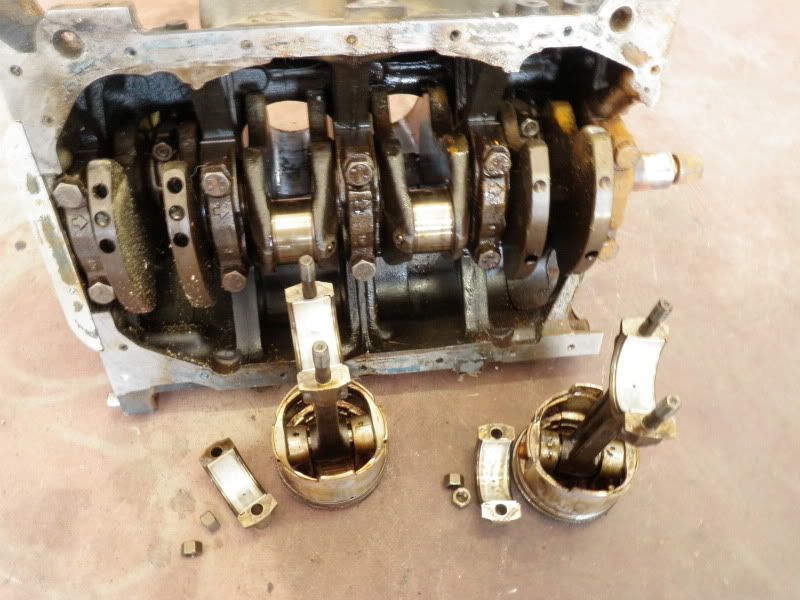

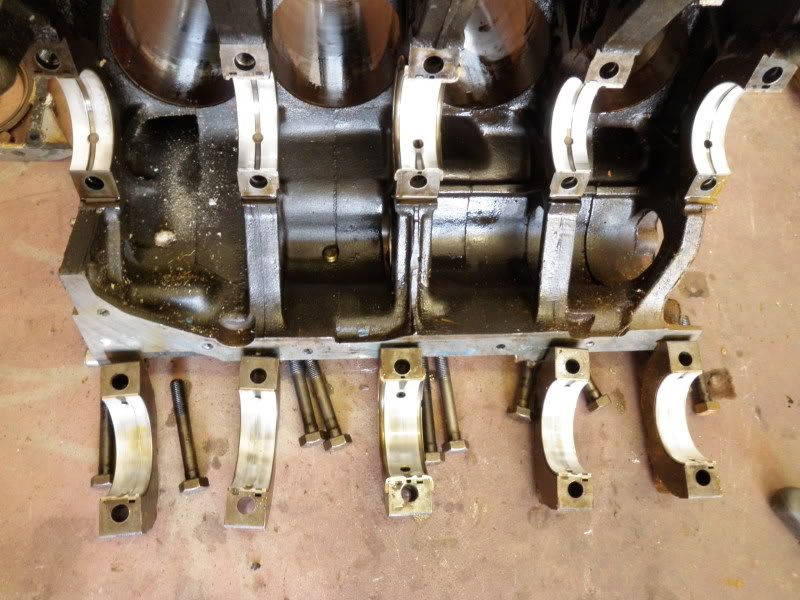

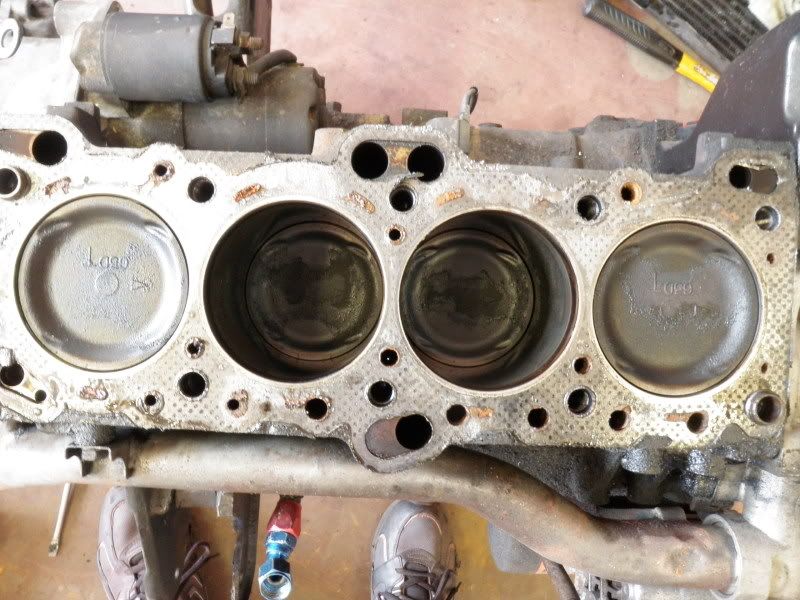

tore the new 2.4 block apart to check it all out... (only things i will be using is the block and crank)

then tore into the old motor to get the parts off im going to be using and see what condition it was in...

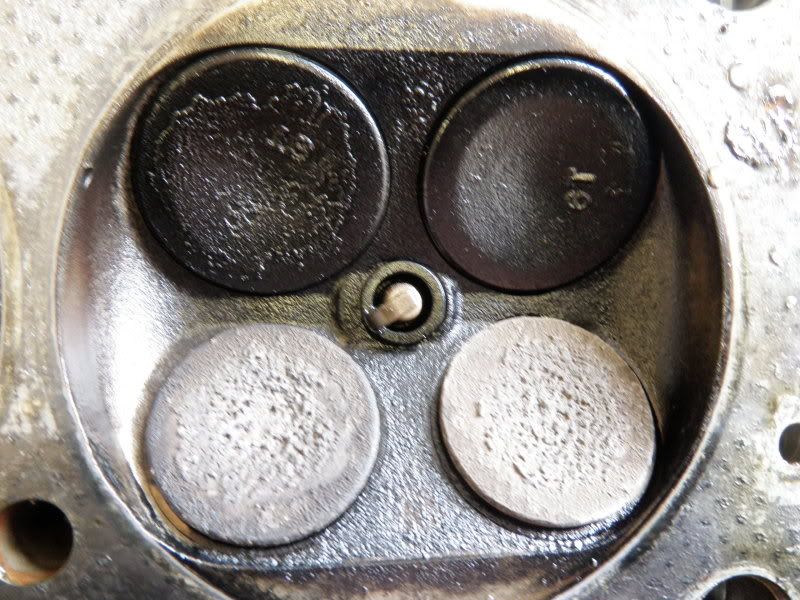

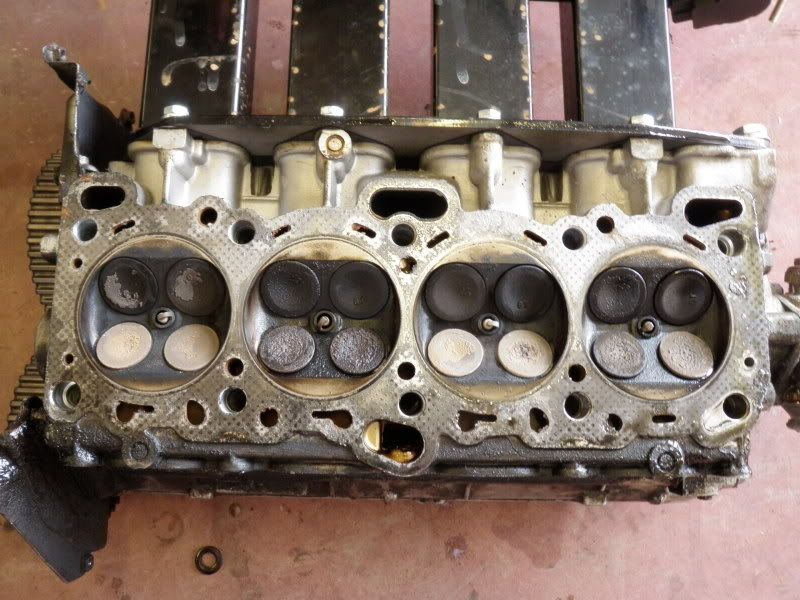

burnt valves anyone...

looking down these intake runners i cant wait to start porting and polishing...

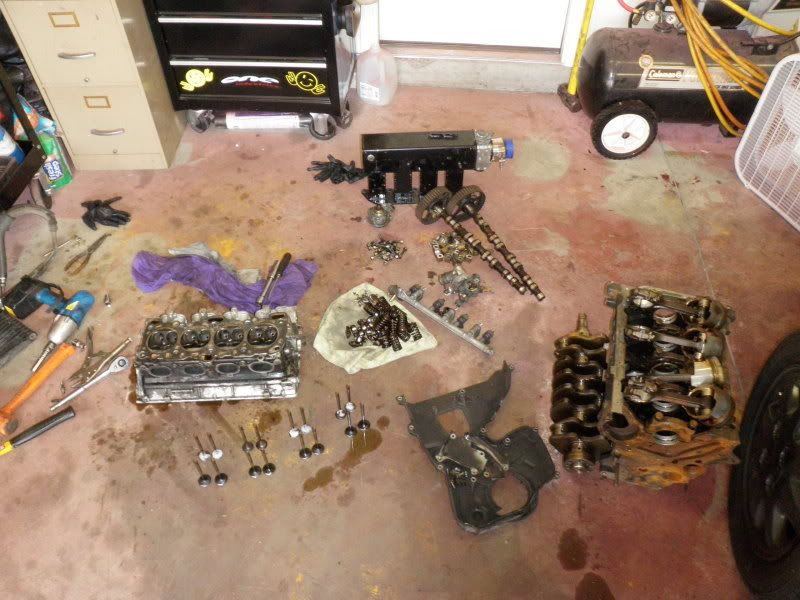

now there's just parts everywhere...

just need all my new stuff to come in so i can get this beast back on the road...

got some more done today....

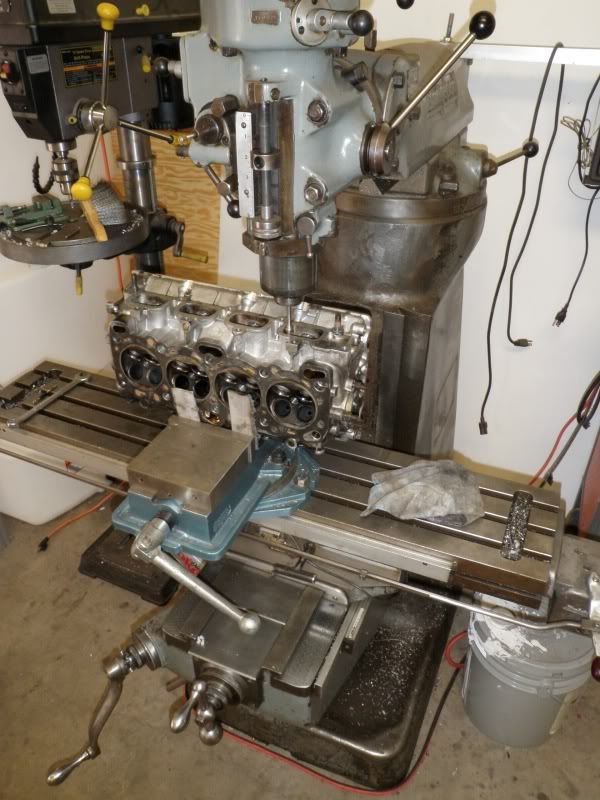

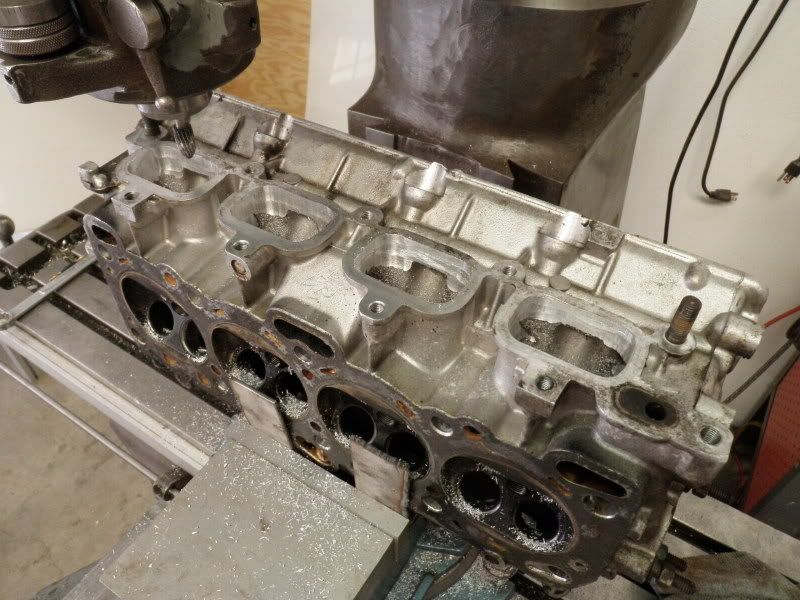

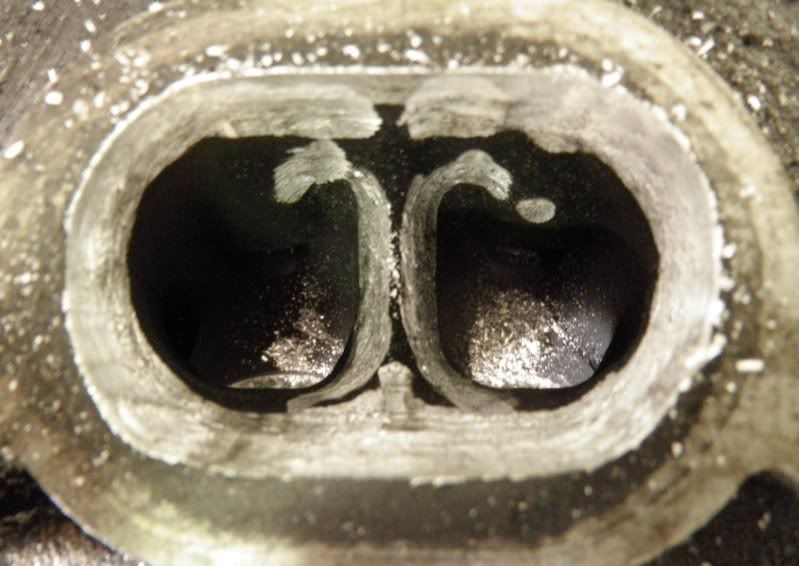

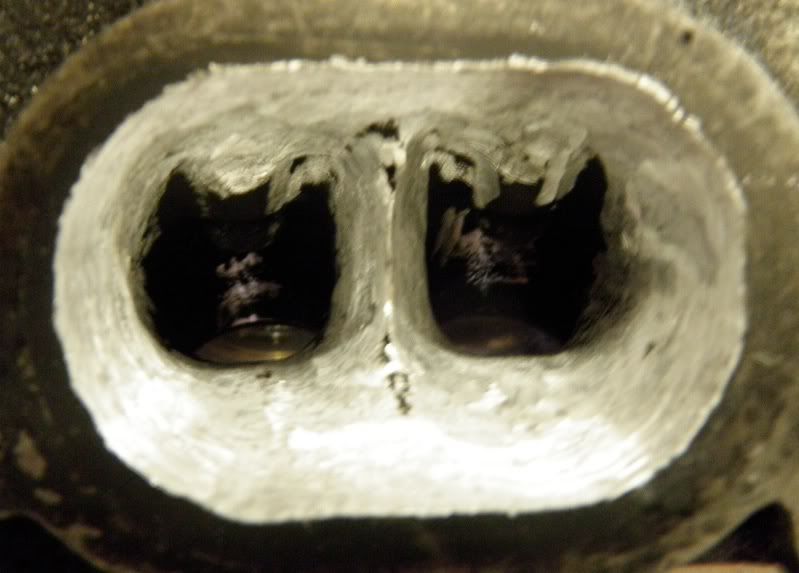

threw my head on the ol' bridgeport mill for some port work

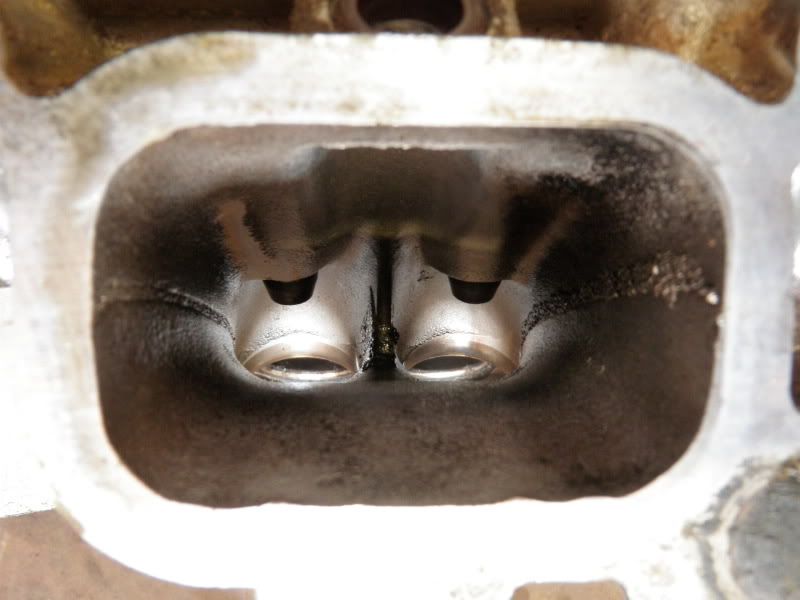

here is a fun befor picture (not the super clean part where the E85 was sprayed through my injectors /ubbthreads/images/graemlins/smile.gif

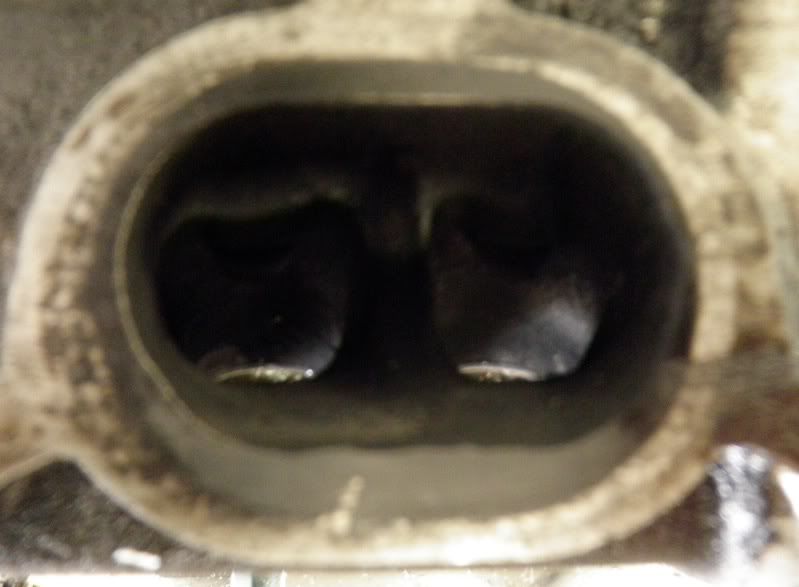

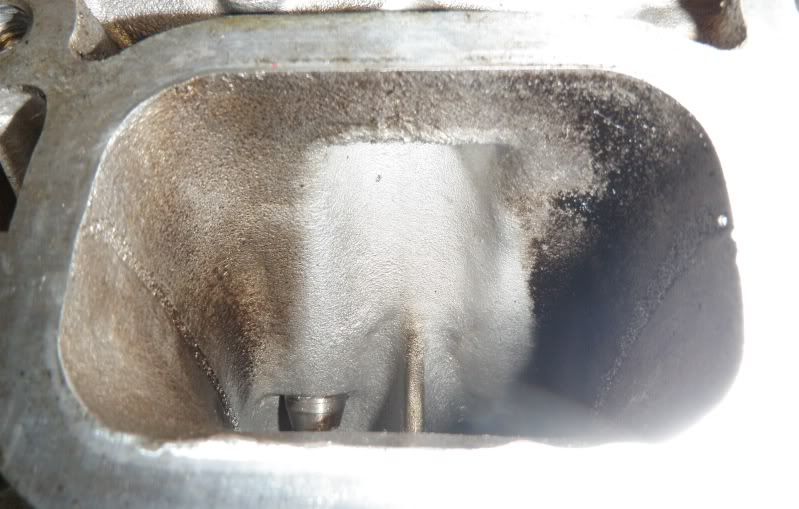

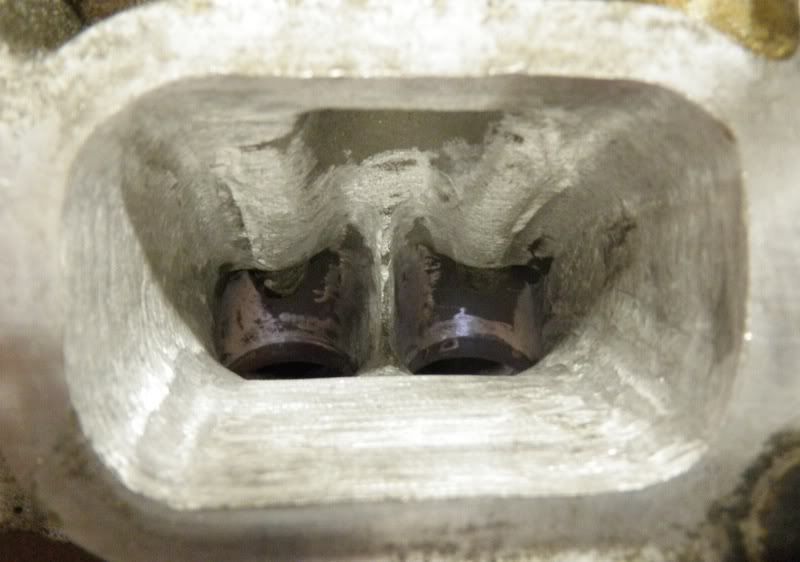

exhaust port

then got some parts in... FINALLY... /ubbthreads/images/graemlins/smile.gif

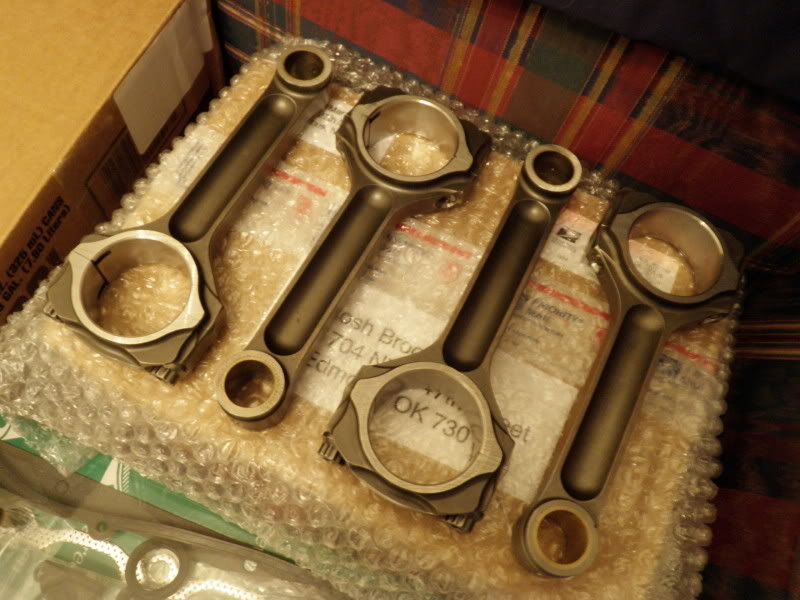

some sweet oliver I-beams

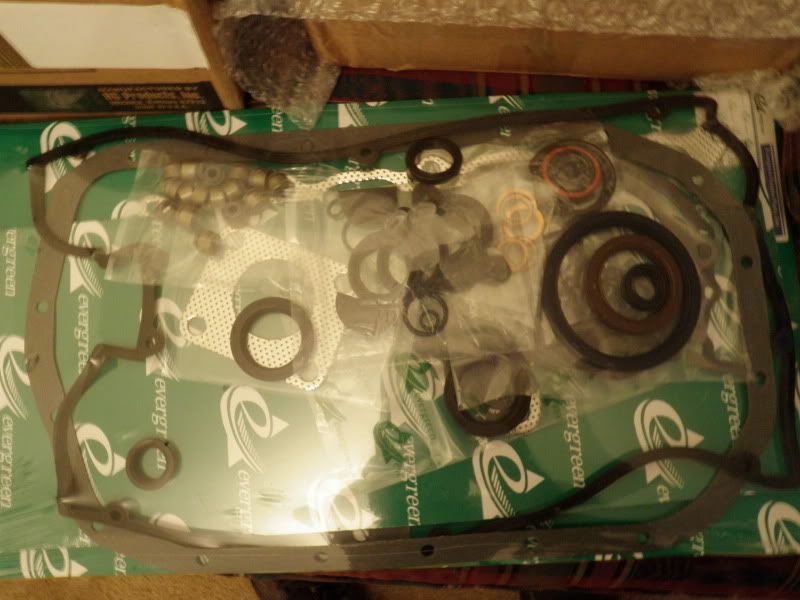

gasket set

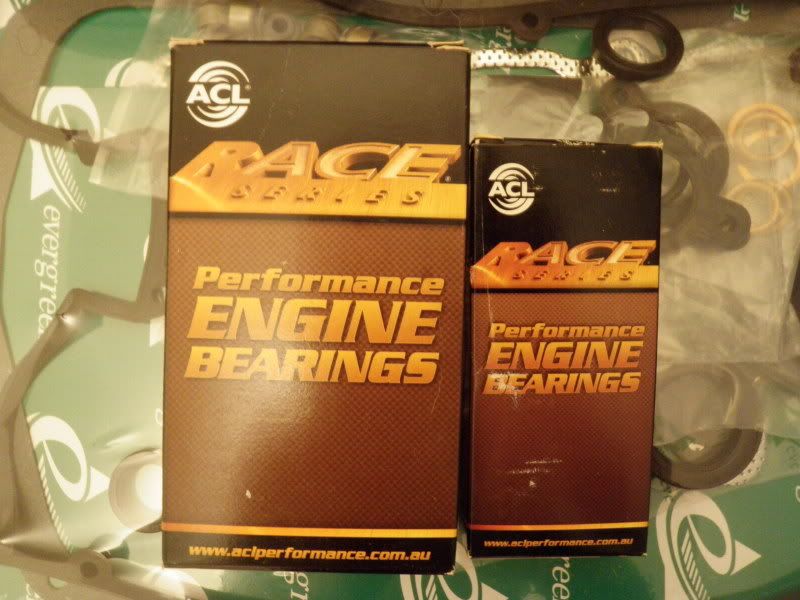

acl race main and rod bearings

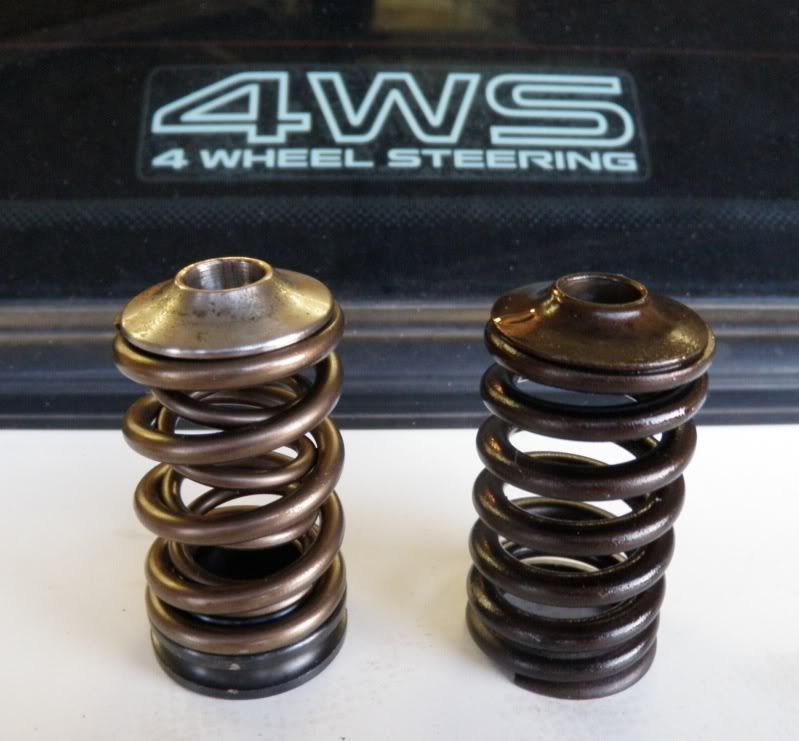

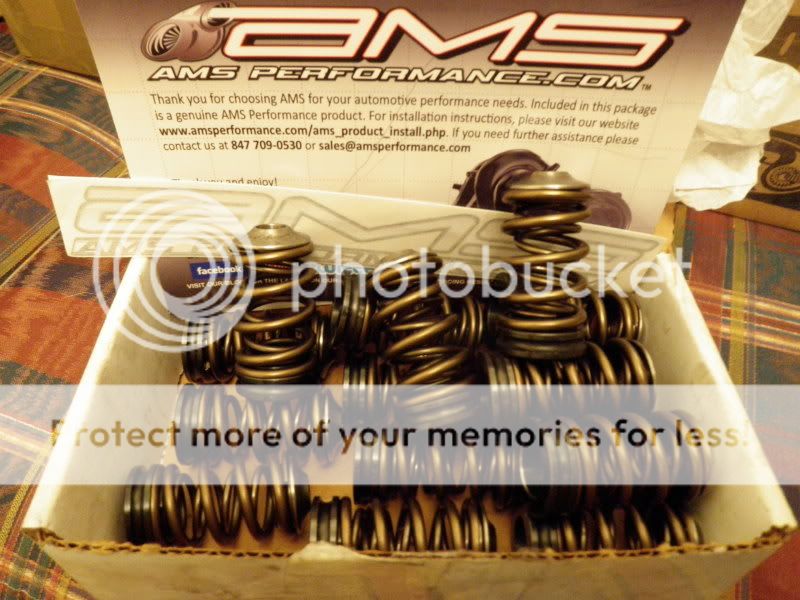

ferrea dual valve springs wit retainers

compared to the stock springs



[TurboTrader]

I'm curious. All that crap in the valve cover, is it powder coating, or is it from sandblasting, or both? Did the powder coater or sandblaster not take proper precautions to keep the crud out of the inside?

Also, I was wondering if you plan to put the inner panel back in (or fab a new one), or if it would be unnecessary to do so. Just curious and trying to learn something new. Thanks!

Looking good so far either way. I can't wait to get mine back up and running, though I'm a long ways out.



[fuel]

^^ caked on oil residue.



[GolfBall]

Quoting MadBeachDSM:
I'm curious. All that crap in the valve cover, is it powder coating, or is it from sandblasting, or both? Did the powder coater or sandblaster not take proper precautions to keep the crud out of the inside?

Also, I was wondering if you plan to put the inner panel back in (or fab a new one), or if it would be unnecessary to do so. Just curious and trying to learn something new. Thanks!

Looking good so far either way. I can't wait to get mine back up and running, though I'm a long ways out.



yeah combo of old burned caked in oil and sand from the sand blasters. maybe some powder coat in there too.... im not putting mine back in and no one "needs one" but if you do take it out you need to have a proper catch can because it will increase blow by out of the valve cover breathers.
