A quick update!

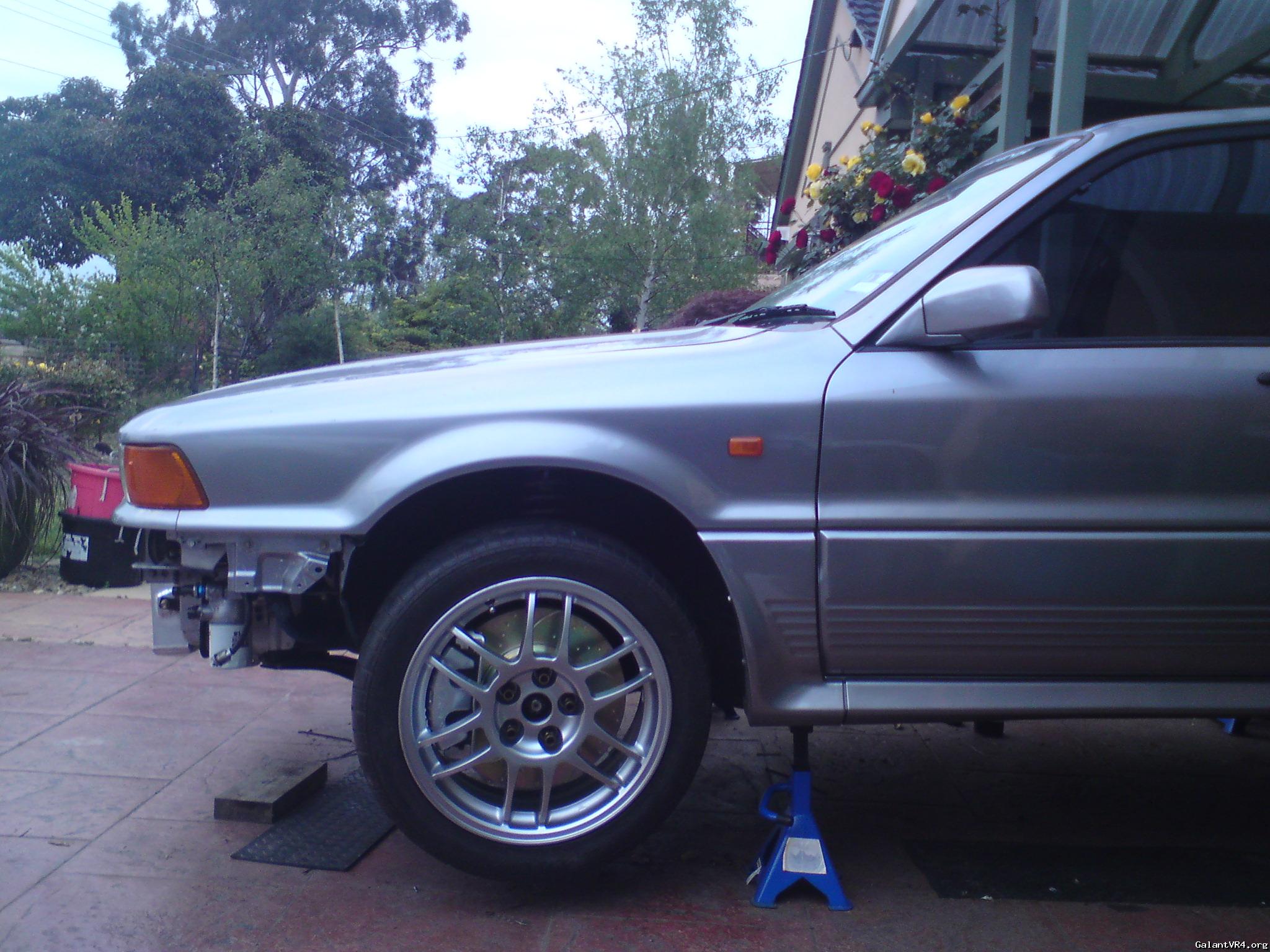

The VR4 has had a 5 stud conversion with EVO V rims.
Thanks to all those guys from this board for supplying the rear axel shaft and brake parts!
I've also done a bit more to the engine but that will be revealed once it is up and running.
Enjoy the pics!
Water pump setup

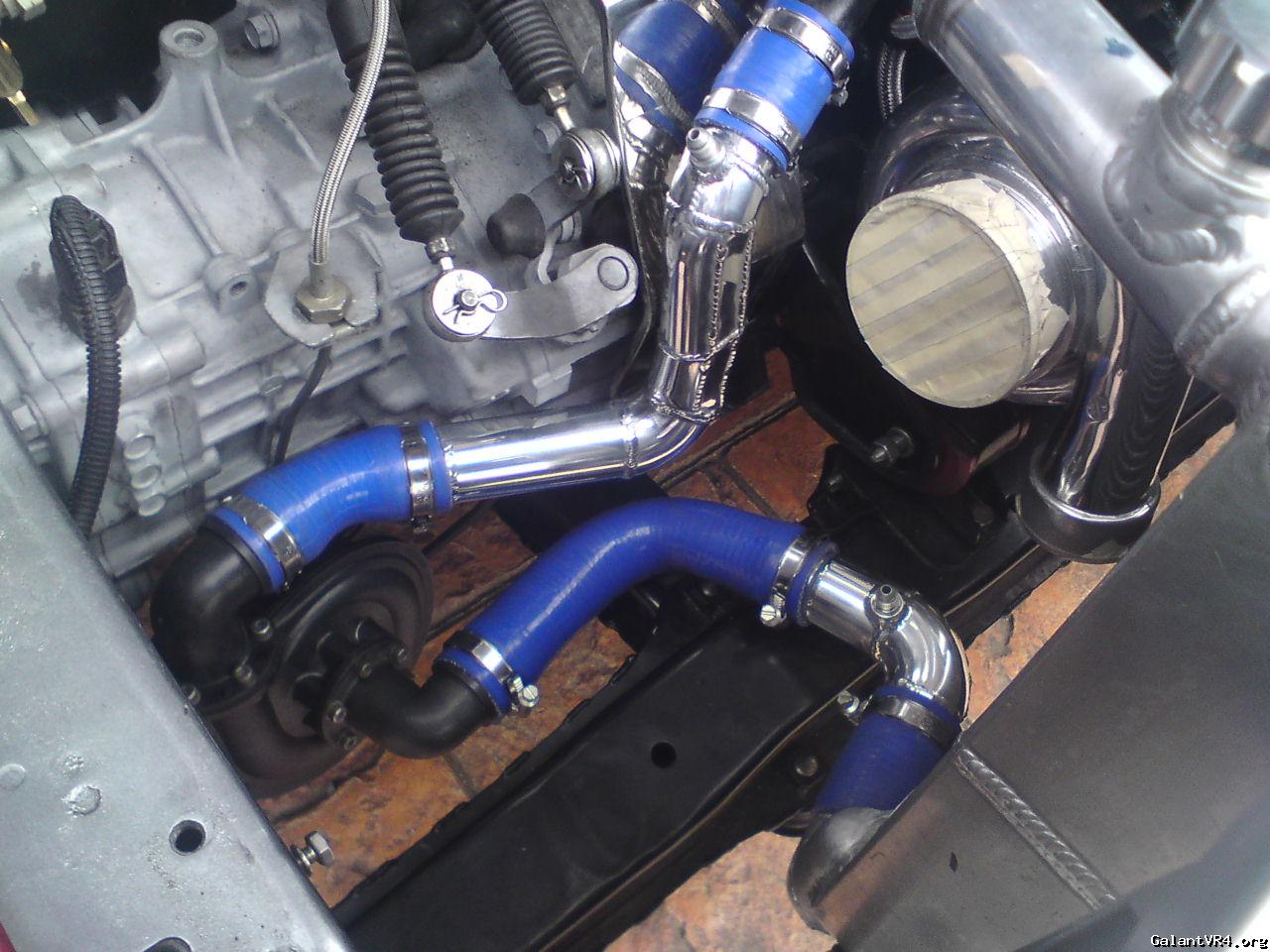

Twin BOV setup

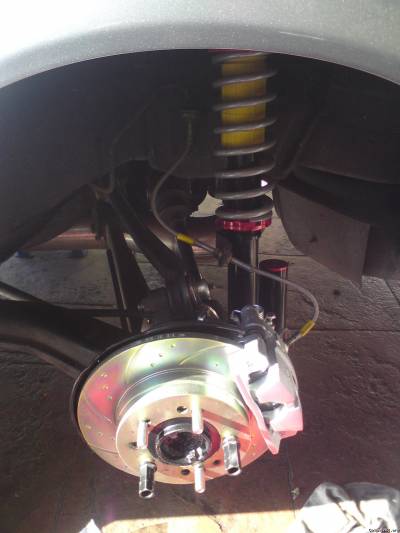

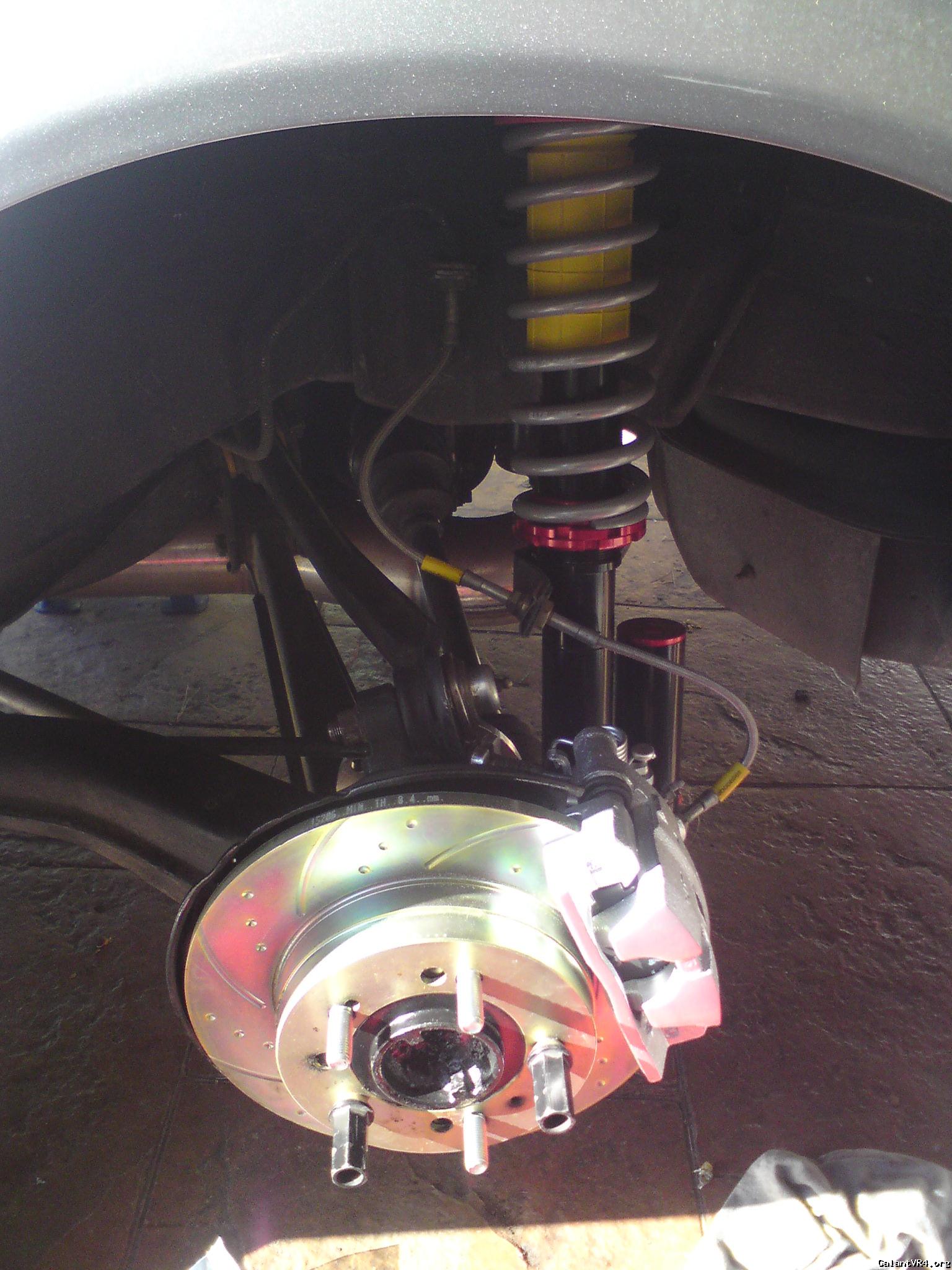

5 lug rears

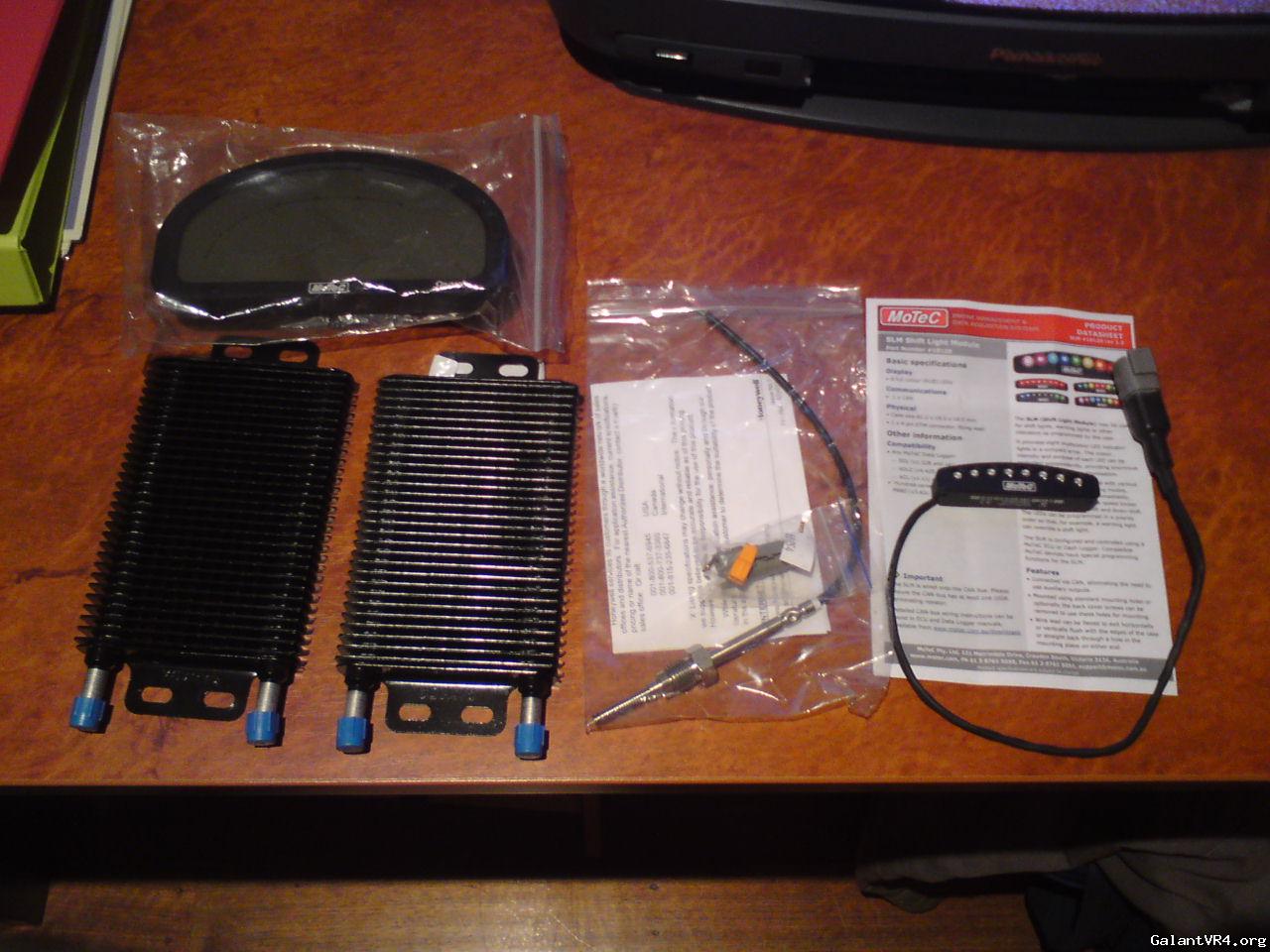

Power steering cooler + MOTEC Sports Dash Logger and MOTEC Shift Light Module

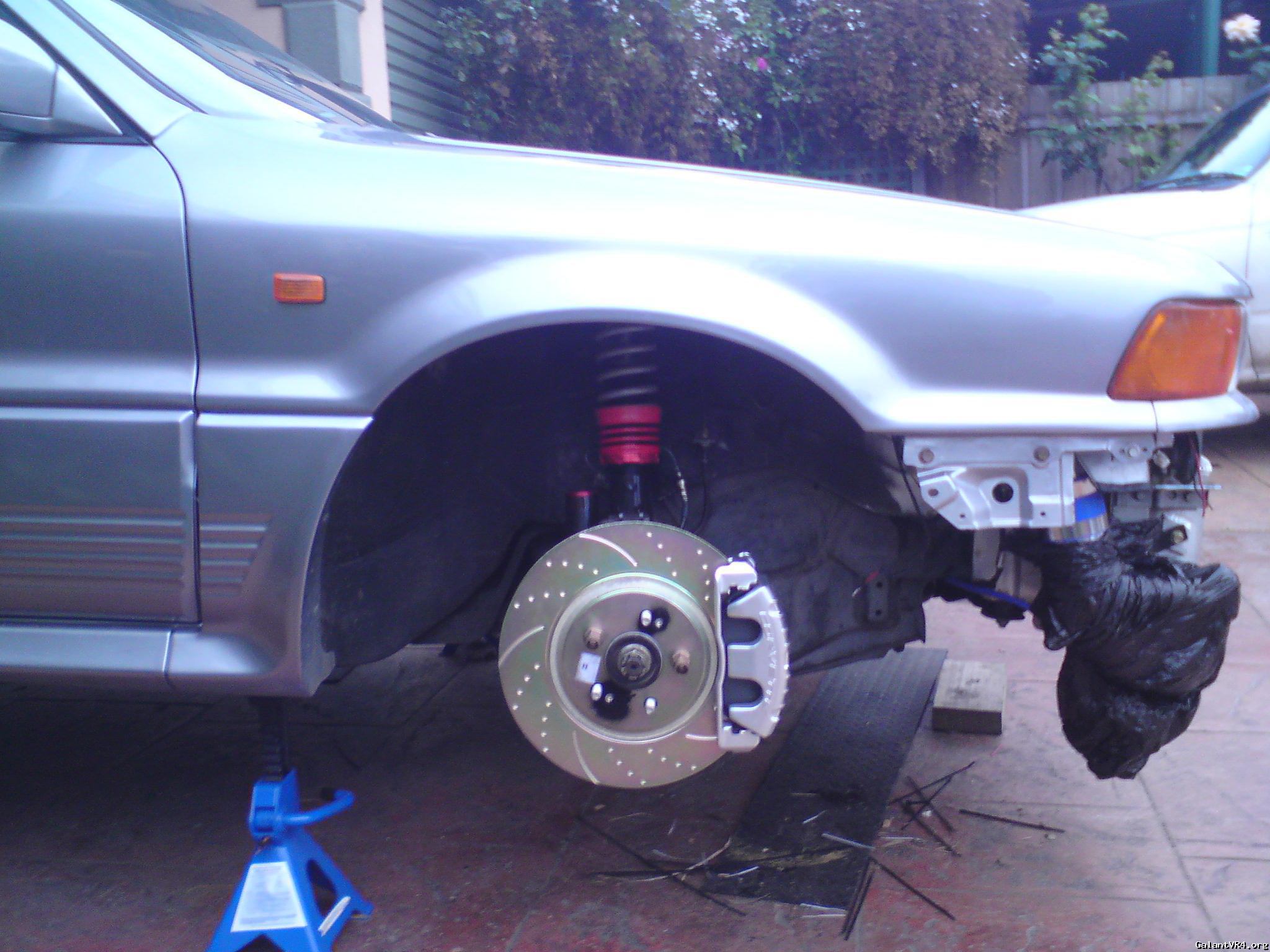

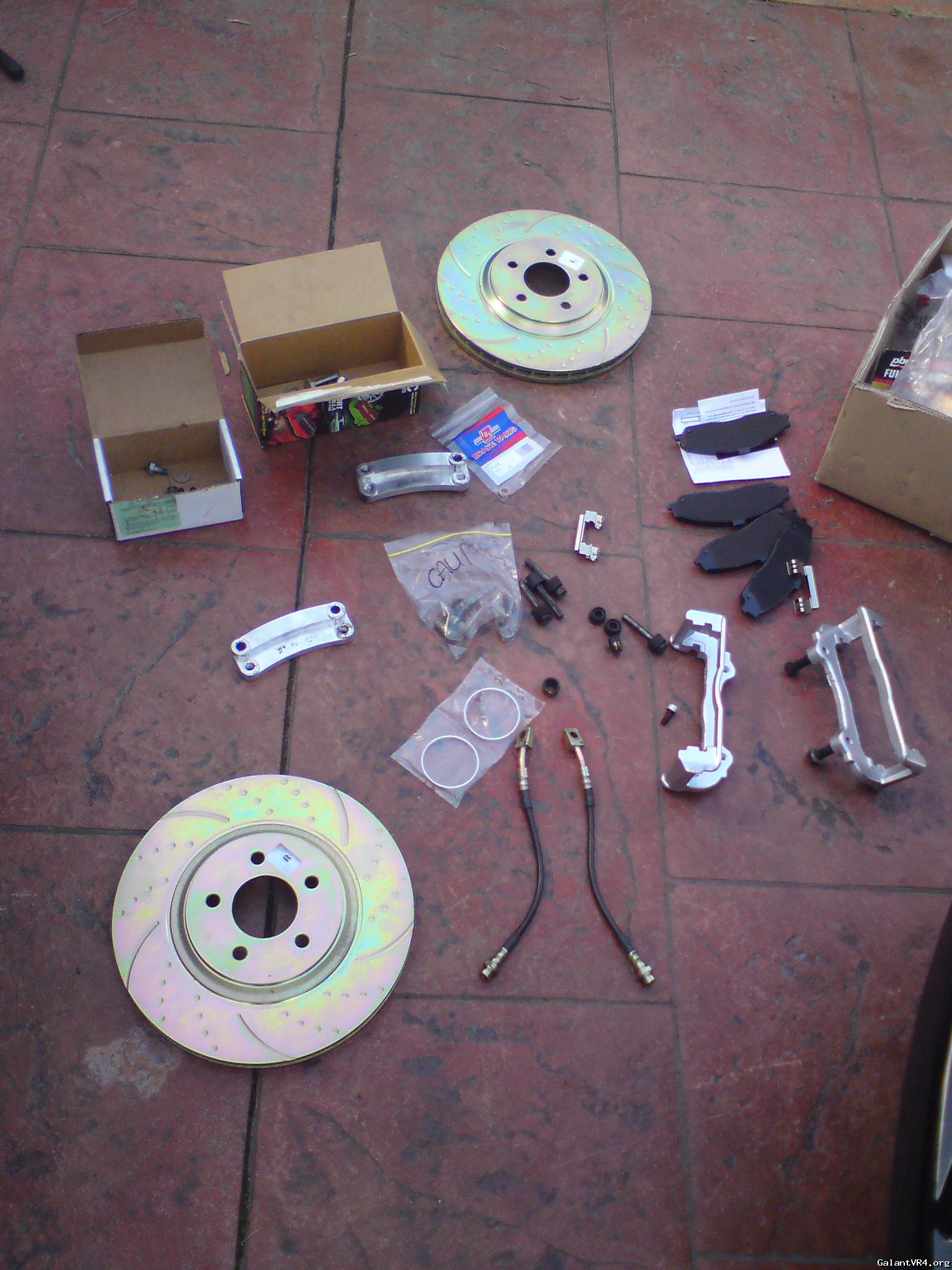

5 lug front conversion + vette brake upgrade
The VR4 has had a 5 stud conversion with EVO V rims.
Thanks to all those guys from this board for supplying the rear axel shaft and brake parts!
I've also done a bit more to the engine but that will be revealed once it is up and running.
Enjoy the pics!
Water pump setup
Twin BOV setup
5 lug rears
Power steering cooler + MOTEC Sports Dash Logger and MOTEC Shift Light Module
5 lug front conversion + vette brake upgrade
