Rims, Size, Offset, Tires: Post all of the pics here.

[PreskitVR4]

Quoting kcpaz:
17x8 offset is 35 with 245 tire.


they clear, but I'm running a pretty healthy dose of negative camber



Nice hood. I think I might have the same one /ubbthreads/images/graemlins/wink.gif
17x8 Rota Boost 48mm offset. Did it the hard way though, they were out of the 35mm offset and it was my last week working for DTC so I ordered the Subie offset and then bought 10mm spacers for the front, 15mm spacers for the rear with longer studs. The stagger is flawless with 245/40/17 Yokohama S-drive. Yoks run wide for some reason /ubbthreads/images/graemlins/laugh.gif

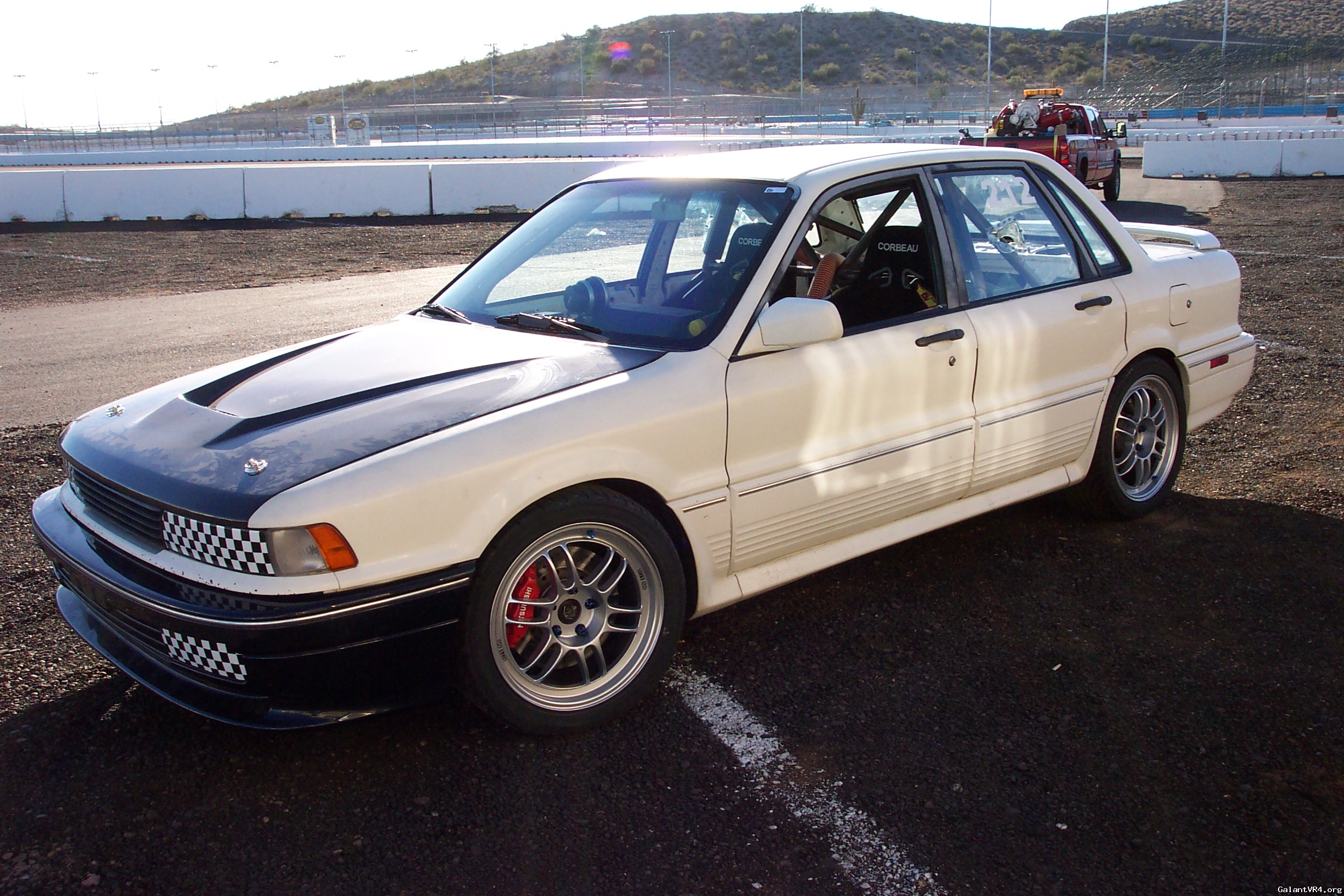

These are my "dress shoes" 18x8 Volk CE28s 38mm offset with 235/40/18 Falken RT-615



[PreskitVR4]

Quoting GeorgeBillings:
I'm looking for pics of tires on a 16x7. I just bought a set of rims and the offset is 40. So I'd like to get an idea of what size tire I should buy.



I would recomend a 225/50/16 on that 7" wide wheel, if its lowered, 225/45/16 /ubbthreads/images/graemlins/smile.gif



[GeorgeBillings]

It's lowered a little bit. I was going to do a 215/50/16?



[FCR]

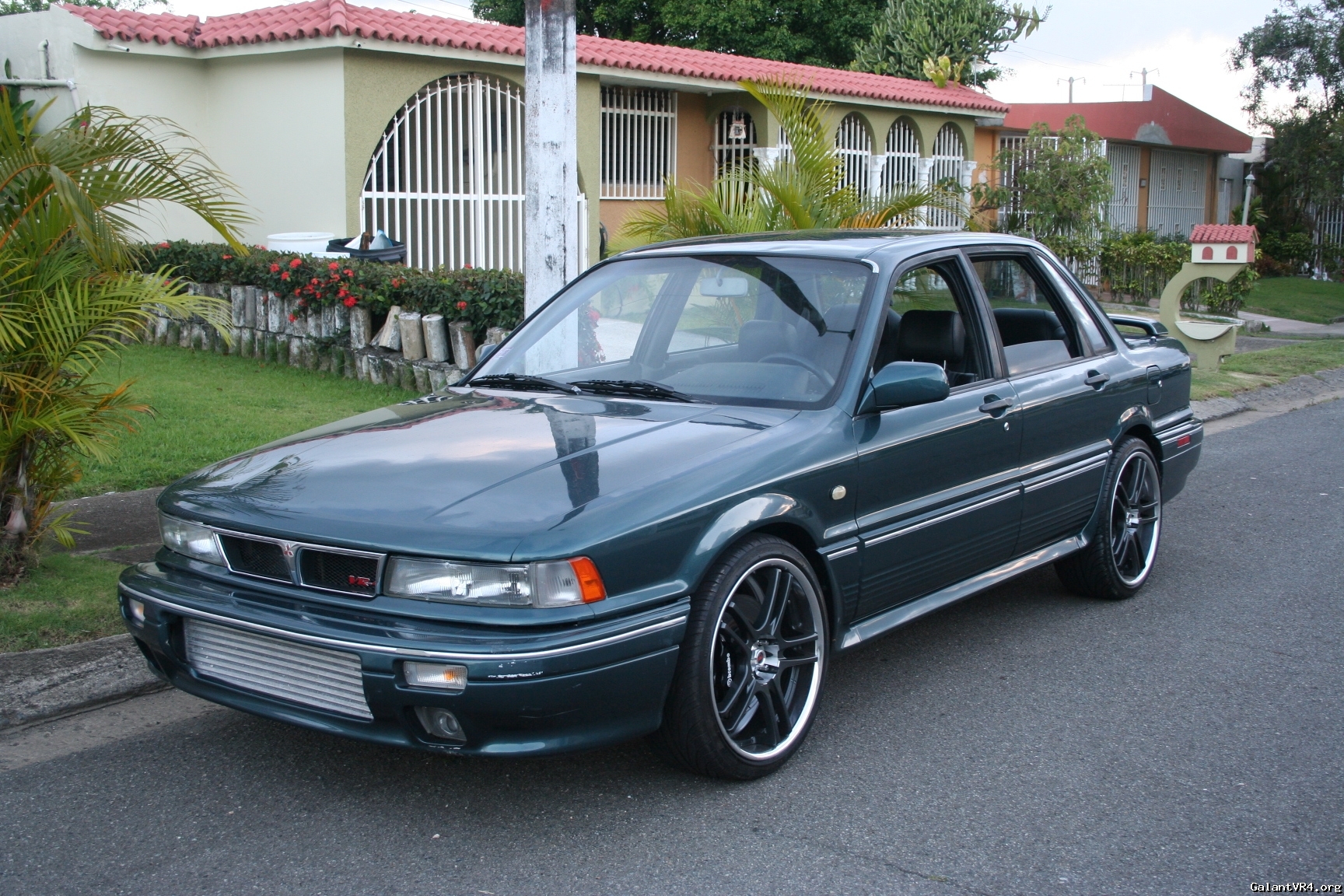

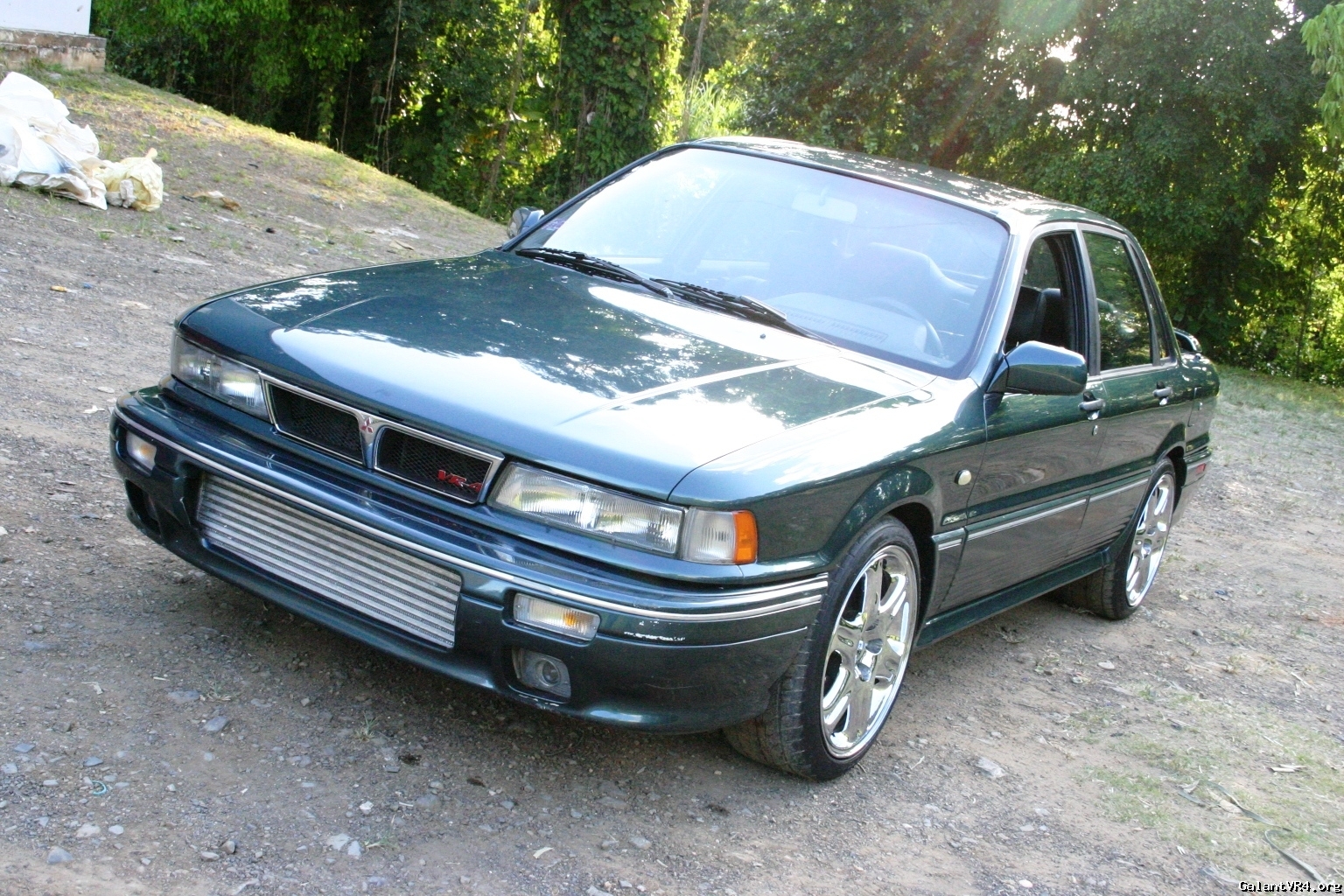

3k vr4 18x8 38 offset nitto 235-40-18

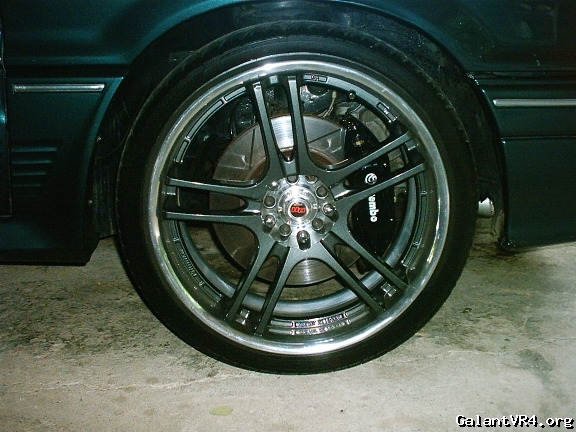

19x8.5 RH PRO J5 35 offset nitto 235-35-19

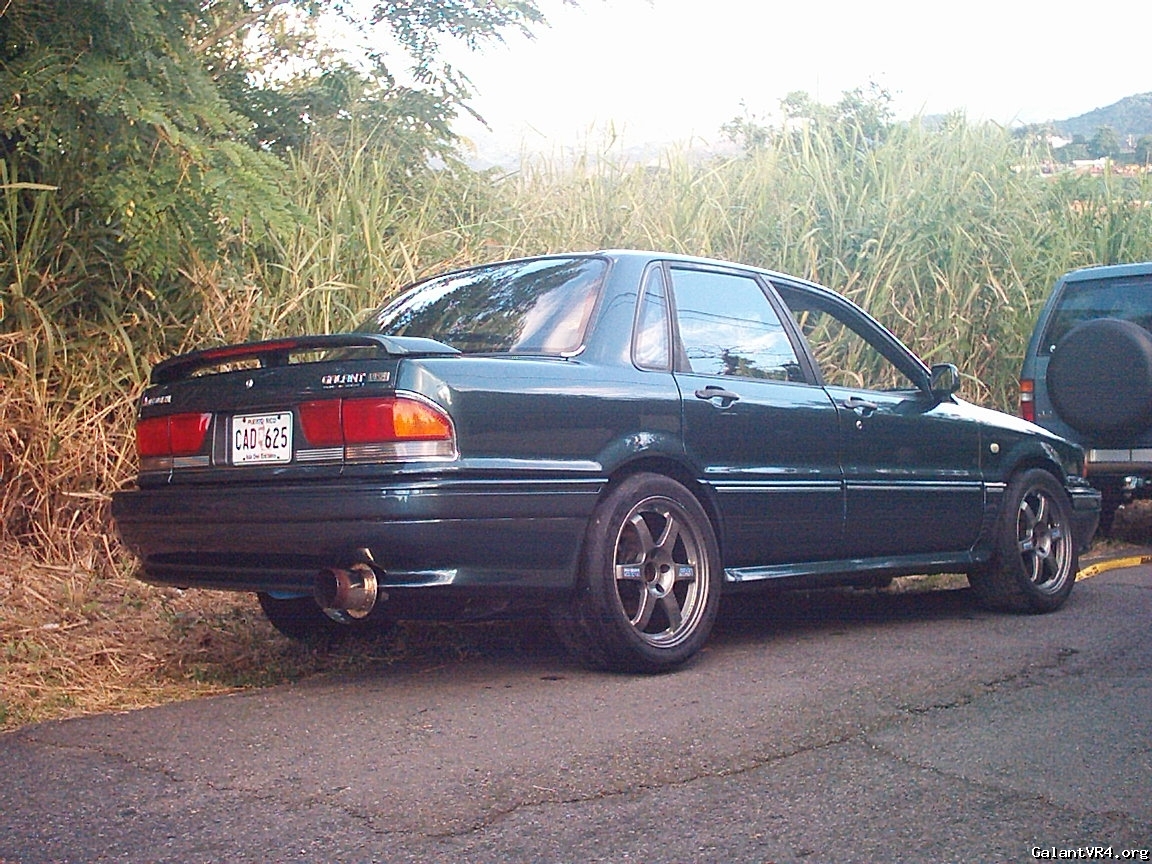

17x9 Volk TE37 38 offset toyo ra-1 255/40/17

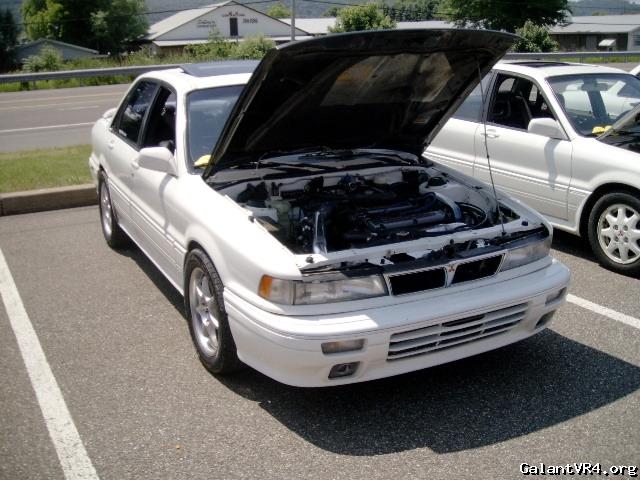

[Nartanian]

^^ Jesus Christ what fmic do you have? That things looks HUGE.



[GeorgeBillings]

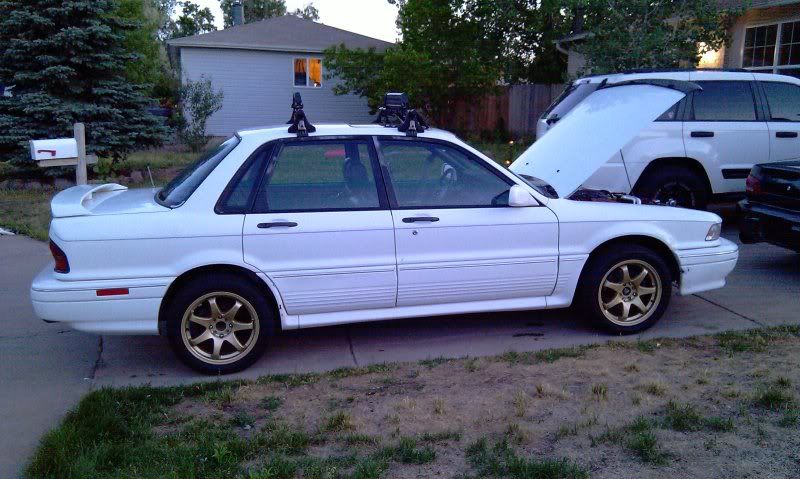

These are 16x8 +44 Offset and 235/45/16 tires. I think it needs a 50 series though.



[Circuit]

I am going to test fit a set of 17x8/8.5 +37 wheels next week. No tires though, so I will have to use the jack to move the wheel up to the right height. I will be running the 8.5's in the rear and am thinking I will have to modify the control arm a bit, yeah?

I will probably run 235/40 or 245/40's all around so I don't mess up the center diff because of different rolling diameters. The extra 1/2" of wheel width in the rear should give me a bit more oversteer too =)



[kartorium]

You might have to massage the arm a tiny bit, but not too much. Mine are at a +48 and I had to take out the entire lip of the arm and then throw in a 5mm spacer.



[Andy_S]

Quoting Circuit:
I am going to test fit a set of 17x8/8.5 +37 wheels next week. No tires though, so I will have to use the jack to move the wheel up to the right height. I will be running the 8.5's in the rear and am thinking I will have to modify the control arm a bit, yeah?

I will probably run 235/40 or 245/40's all around so I don't mess up the center diff because of different rolling diameters. The extra 1/2" of wheel width in the rear should give me a bit more oversteer too =)



Thats not going to work so well. Although they are both a 40 series, the rolling diameter will be different.



[bustedsm]

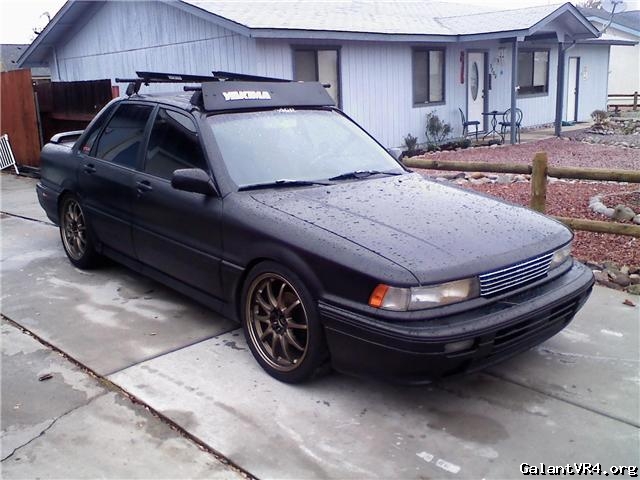

17x8" Rota Torques +35 (Falken Azenis RT-615 225/45/17)



[Circuit]

Quoting Andy_S:
Quoting Circuit:
I am going to test fit a set of 17x8/8.5 +37 wheels next week. No tires though, so I will have to use the jack to move the wheel up to the right height. I will be running the 8.5's in the rear and am thinking I will have to modify the control arm a bit, yeah?

I will probably run 235/40 or 245/40's all around so I don't mess up the center diff because of different rolling diameters. The extra 1/2" of wheel width in the rear should give me a bit more oversteer too =)



Thats not going to work so well. Although they are both a 40 series, the rolling diameter will be different.



I meant either 235/40's at all 4 corners or 245/40's at all 4 corners, not different widths front and back.



[GeorgeBillings]

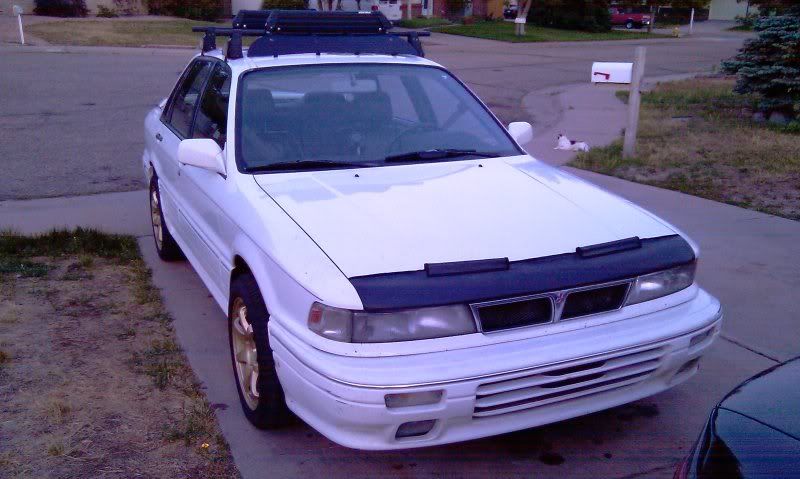

205/50/16 16x7 +25 Offset XXR 522 Gold



[EMX5636]

Wheels look good on the white car, now you just gotta lower it!



[GeorgeBillings]

They are 17x7.5 +42 offset with 235/45/17



[SleepinGVR4]

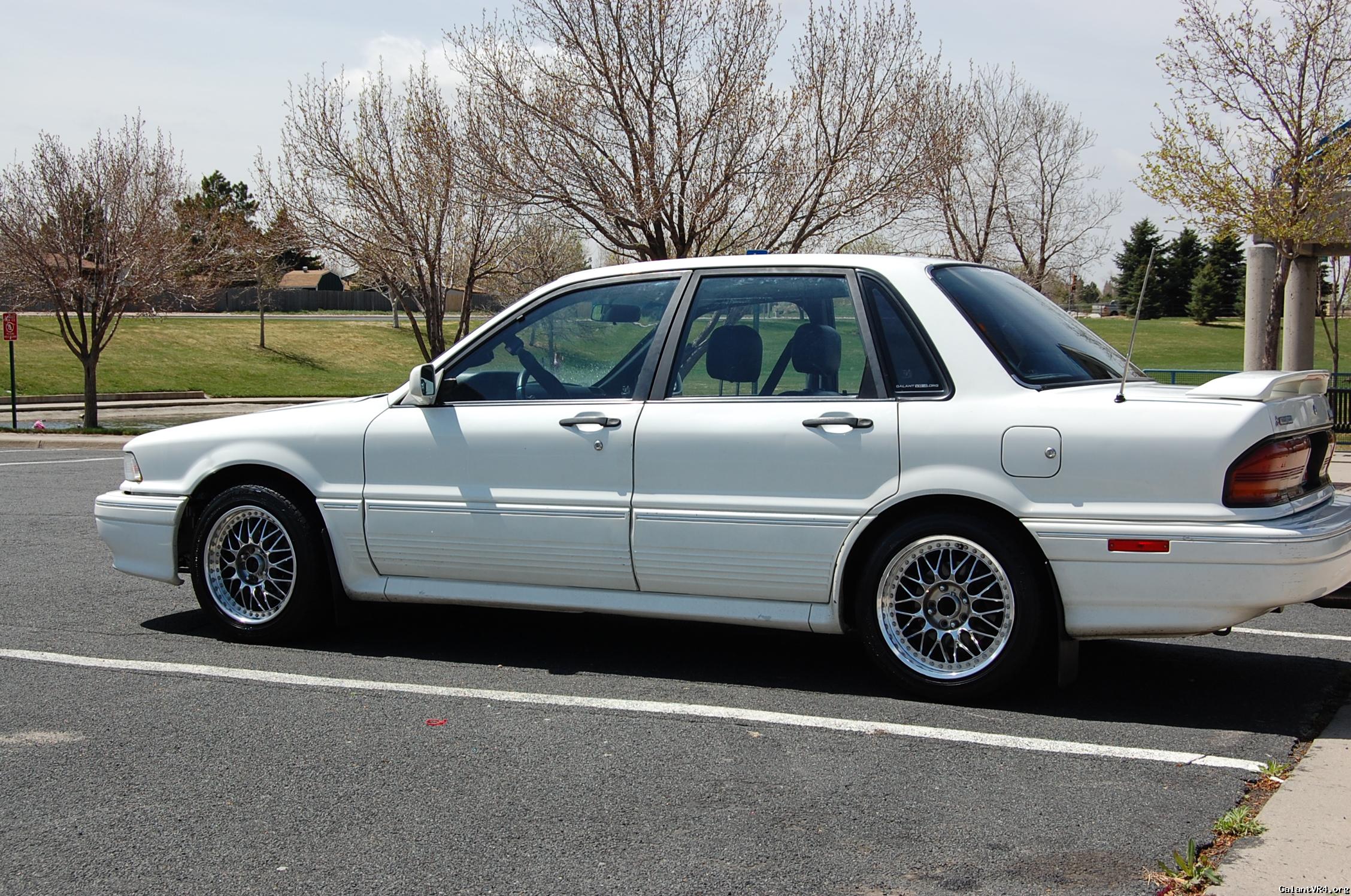

16X7 225/50/16 The fronts barely stick out past the fender, and the rears completely fill the wheel well.



[MMCVR4]

Quoting PreskitVR4:




Nice VR-4 & GT-Four! 17x8.0J 35et & 225/45-17 on both of mines.



[GeorgeBillings]

What type of rims are on the bottom picture?



[MMCVR4]

Dunlop Formula CP-R.



[PreskitVR4]

Quoting MMCVR4:
Quoting PreskitVR4:




Nice VR-4 & GT-Four! 17x8.0J 35et & 225/45-17 on both of mines.





Fun having two of the rarest production vehicles on the continent in one place huh?



[GSNT]

Quoting GeorgeBillings:
These are 16x8 +44 Offset and 235/45/16 tires. I think it needs a 50 series though.



What kind of rims are these?
