James
Well-known member
Can someone tell me what year coolant temp sensor this is?
The Top Mitsubishi Galant VR-4 Resource
Join the best E39A 1991-1992 Mitsubishi Galant VR-4 community and document your GVR4 journey. Login to browse without most ads.
Need help quick please!
- Thread starter James
- Start date
[edit - oh, you were looking to see what year it goes to...don't know, but it looks just like the 92]
Looks like the one that goes one top of the housing, since the one that goes on the bottom has one terminal at a 90 deg...however, want to say there is a connector that looks just like that in the radiator (bottom), but could be mistaken.
[edit - I just posted this pic in another thread, but gives a good view of the one I am referring to at the top of the housing]:
Looks like the one that goes one top of the housing, since the one that goes on the bottom has one terminal at a 90 deg...however, want to say there is a connector that looks just like that in the radiator (bottom), but could be mistaken.
[edit - I just posted this pic in another thread, but gives a good view of the one I am referring to at the top of the housing]:
Last edited:
James
Well-known member
It came out of the top of the thermostat. My question is what year is it from to order a new one??? The 90-94 is different, the one I bought is from a 2g because the prongs look the same, but the plug is different.
James
Well-known member
Here's some pics of the setup itself..
this is for the galant?

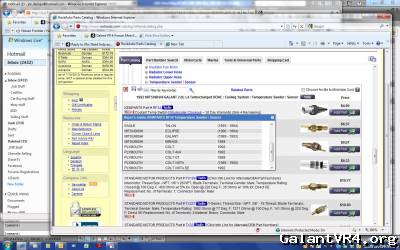

According to Rock Auto (the one for galant, which looks just like the pic you posted; you need to get one from a 1G or 89-93 galant, as 2g has diff p/n):
that one on the right of your pic (with the longer probe) does not look right, as you are probably aware now.
According to Rock Auto (the one for galant, which looks just like the pic you posted; you need to get one from a 1G or 89-93 galant, as 2g has diff p/n):
that one on the right of your pic (with the longer probe) does not look right, as you are probably aware now.
Last edited:
James
Well-known member
When I went to order the one for a 1g the prongs were different. One prong was up and down, the other was left and right.
This is for my galant, Dsm motor was swapped in.
This is for my galant, Dsm motor was swapped in.
You sure it was the correct sensor you went to order? Reason being is a 1G should be same as Galant and your housing looks just like mine, so should be the same (that old sensor you posted is identical). Where are you ordering this from? If a local chain, bring your piece with you, as those guys aren't the brightest stars in the sky and especially on older cars.
Remember the BOTTOM sensor has the two terminals that are in different orientations, as you described, so it's possible you have that sensor and not the one on the top. One is for the A/C, iirc, fwiw...BUT, also that one (bottom) has the terminals exposed and no shroud around them...look at the pic I posted for what I'm talking about.
Remember the BOTTOM sensor has the two terminals that are in different orientations, as you described, so it's possible you have that sensor and not the one on the top. One is for the A/C, iirc, fwiw...BUT, also that one (bottom) has the terminals exposed and no shroud around them...look at the pic I posted for what I'm talking about.
Last edited:
James
Well-known member
Here's pics of the plug side
James
Well-known member
Well which one is the "coolant temp sensor" that tells the ECU how much fuel ect depending on the temp?
James
Well-known member
Ok so the top sensor is a fan relay? Bottom one is the coolant temp sensor
My fans come on just fine so ill assume even though that top sensor looks best to sh*t my fans still work.
My fans come on just fine so ill assume even though that top sensor looks best to sh*t my fans still work.
Last edited:
James
Well-known member
Well replacing the sensor didn't fix my idle problem. But hey it's one more new part!
Thanks for the quick help.
Thanks for the quick help.
mitsuturbo
Well-known member
Off topic, but what sort of intercooler setup are you running? That looks like a DSM turbo outlet.
mitsuturbo
Well-known member
Also, here is why replacing that sensor did not help with your problem...
It's for the A/C.
thermostat housing sensors plugs sensor plug coolant temp sender senders pigtail wire wires
(Keywords for future searches, since it took me a while to find this pic again, and it's been posted repeatedly.)
It's for the A/C.
thermostat housing sensors plugs sensor plug coolant temp sender senders pigtail wire wires
(Keywords for future searches, since it took me a while to find this pic again, and it's been posted repeatedly.)
Last edited:
turbowop
Well-known member
I thought the vertical switch in the top of the thermostat housing water neck was just a switch to turn on the AC pusher fan when coolant temps get REALLY hot, like around 233F or so. If you turn on the AC, that fan comes on, but if you're coolant starts to overheat, even with the AC off, that switch will turn on that fan as a last resort to cool things down.
James
Well-known member
ThE one I replace was number2. On that picture
And when I said the motor was swapped from a Dsm I mean the entire setup, SMIC and all. So yea that's a Dsm outlet Off a 14b
And when I said the motor was swapped from a Dsm I mean the entire setup, SMIC and all. So yea that's a Dsm outlet Off a 14b
Last edited:
mitsuturbo
Well-known member
Quoting turbowop:
I thought the vertical switch in the top of the thermostat housing water neck was just a switch to turn on the AC pusher fan when coolant temps get REALLY hot, like around 233F or so. If you turn on the AC, that fan comes on, but if you're coolant starts to overheat, even with the AC off, that switch will turn on that fan as a last resort to cool things down.
That's right, as far as i understand.
Quoting James:
ThE one I replace was number2. On that picture
And when I said the motor was swapped from a Dsm I mean the entire setup, SMIC and all. So yea that's a Dsm outlet Off a 14b
I'm confused. You posted a photo of #3, which is A/C related. Yet you state you replaced #2. Did i miss something, or were you asking about two different sensors here?
I thought the vertical switch in the top of the thermostat housing water neck was just a switch to turn on the AC pusher fan when coolant temps get REALLY hot, like around 233F or so. If you turn on the AC, that fan comes on, but if you're coolant starts to overheat, even with the AC off, that switch will turn on that fan as a last resort to cool things down.
That's right, as far as i understand.
Quoting James:
ThE one I replace was number2. On that picture
And when I said the motor was swapped from a Dsm I mean the entire setup, SMIC and all. So yea that's a Dsm outlet Off a 14b
I'm confused. You posted a photo of #3, which is A/C related. Yet you state you replaced #2. Did i miss something, or were you asking about two different sensors here?
Quoting turbowop:
I thought the vertical switch in the top of the thermostat housing water neck was just a switch to turn on the AC pusher fan when coolant temps get REALLY hot, like around 233F or so. If you turn on the AC, that fan comes on, but if you're coolant starts to overheat, even with the AC off, that switch will turn on that fan as a last resort to cool things down.
No, the vertical sensor ( #3 in pic ) controls the AC compressor clutch, disengages/cuts off the compressor if the coolant temp is too high.
The horizontal sensor facing the firewall, #4 in pic, is the secondary/AC fan sensor.
I thought the vertical switch in the top of the thermostat housing water neck was just a switch to turn on the AC pusher fan when coolant temps get REALLY hot, like around 233F or so. If you turn on the AC, that fan comes on, but if you're coolant starts to overheat, even with the AC off, that switch will turn on that fan as a last resort to cool things down.
No, the vertical sensor ( #3 in pic ) controls the AC compressor clutch, disengages/cuts off the compressor if the coolant temp is too high.
The horizontal sensor facing the firewall, #4 in pic, is the secondary/AC fan sensor.
mitsuturbo
Well-known member
Oh yeah. that's right.
I wonder what DSMs do. They don't have that other A/C fan switch like we do.
I wonder what DSMs do. They don't have that other A/C fan switch like we do.
