FS: Subframe and mustache bushings *SALE 10% OFF UNTIL 8/30 for $157 Contact me

blacksheep

Well-known member
Joined
May 1, 2002
Messages
15,485
Location
Urbandale, Iowa 50323
Quoting DSMjoe:

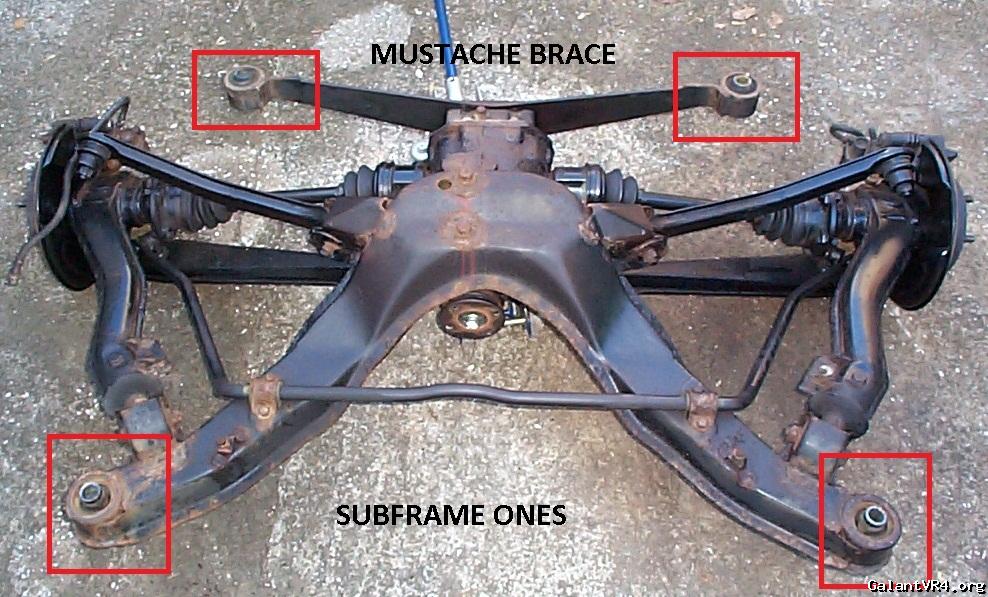

I installed the Mustache Bushings over the weekend, everything worked out perfect. John is a good guy with a good product. I will post photos of the K member ones installed once i get back from vacation. Thanks Again.








What is with those control arms? They look pretty impressive..


blue64tsi

Well-known member
Joined
Jan 2, 2009
Messages
49
Location
brewster, ohio
after getting rid of all the stock rubber bushing material and cleaning everything up. there is another inner "sleeve" if you will. not on the mustach bar just on the other bushing location. with these does that inner sleeve need removed?


curtis

Well-known member
Joined
May 4, 2003
Messages
11,892
Location
Clarksville TN
I designed these with considerations for the northern cars being attacked by detroit cancer, crud or what some call rust, we don't have it here.....Figured those cars need all the steel they can get. harbor fright sells a wire wheel kit for a drill and after burning out the rubber with a map torch attack with a wire brush on the drill and then paint the sleeves or just coat with some grease/wd40 etc and press together and then press in the pin. I set tolerances so the bushing requires force to set it into place and then the pin adds even more to it to lock them into place for now on.


I've found a short piece of pipe ( steel or PVC ) a block of wood/ thick piece of metal and a 6 inch c clamp or vice is all you need to press these in. Tried to make this an easy install for the guys that don't own a shop full of tools.


boostx

Well-known member
Joined
Apr 24, 2003
Messages
4,326
Location
Orlando, FL
*SALE 10% OFF UNTIL 2/28. $157 shipped to you if the payment is sent as a gift .. YES as a gift.


to be sure, this is for the rear subframe, does this also replace the trailing arm bushings?
also how you have bushings for the front? maybe tie rod ends?


boostx

Well-known member
Joined
Apr 24, 2003
Messages
4,326
Location
Orlando, FL
These bushing are for the rear subframe only. They do not replace the the trailing arm bushings.

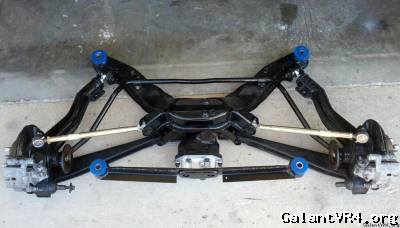

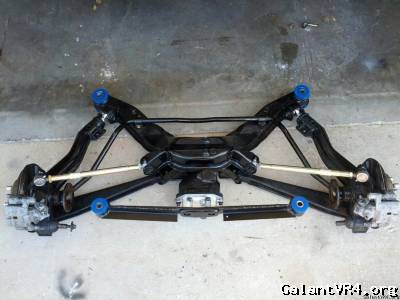

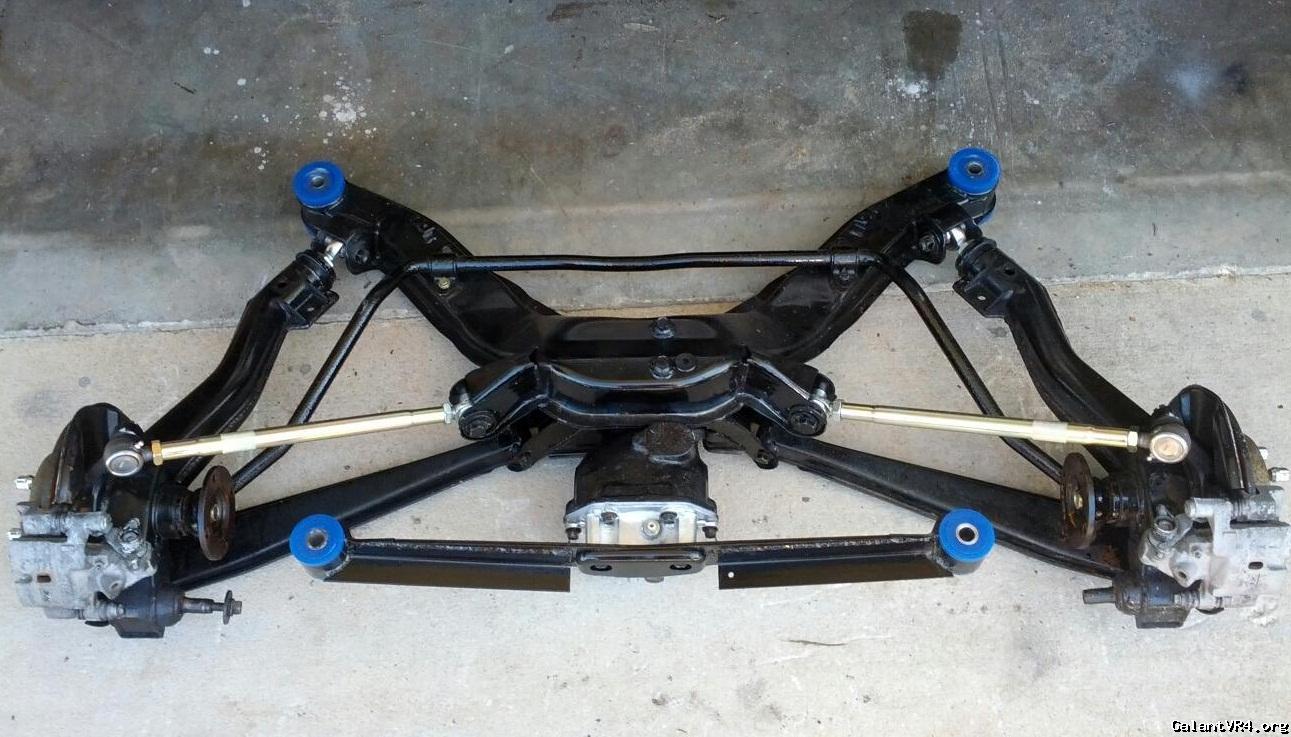

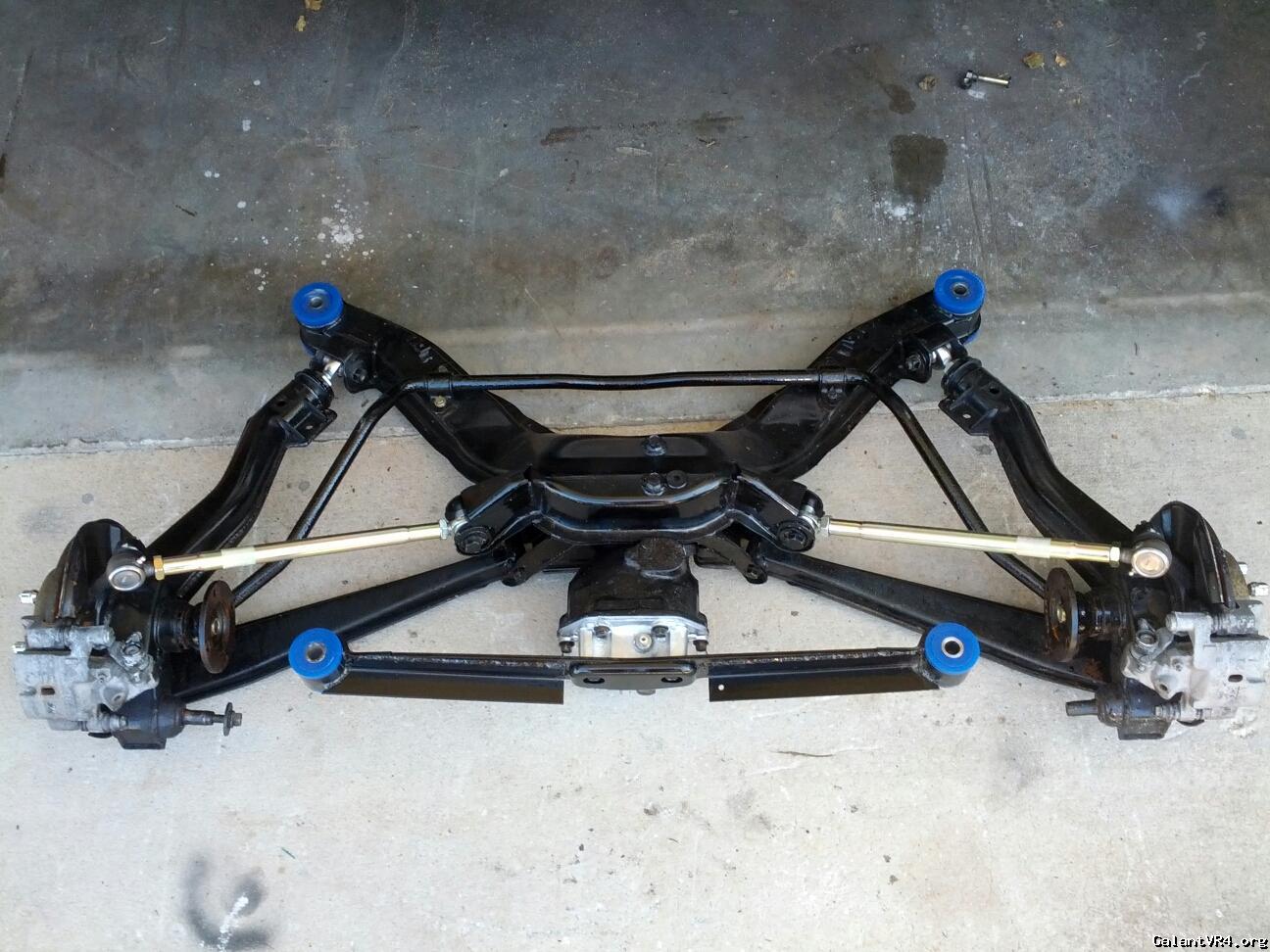

See the blue blue bushings installed.


fuel

Well-known member
Joined
Feb 23, 2009
Messages
2,166
Location
Toronto, ON, Canada
Quoting Boostx:
*SALE 10% OFF UNTIL 2/28. $157 shipped to you if the payment is sent as a gift .. YES as a gift.


Does that include to Australia or New Zealand? :p
