FEELER: evo 8 IC piping kits

[Brunoboy]

the piping that passes by the headlight doesn't fit, can you take close up pics of the route and angles of the piping , thanks



[throughfaith323]

i got caught up with installing my friends WOT box and forgot to take the pictures...sorry

i should prob be able to get the up here sunday..i'll do my best.



[Brunoboy]

thanks need it asap



[Brunoboy]

Bump, someone with pics close up???? I just need to know around the headlight and how it routes, i really am slow, and it doesnt fit -___-.
-shane



Shane, take a pic of where you are stuck.



[Brunoboy]

will do. right now hold up



[Brunoboy]

actually it fits now, idk if its how its supposed to be routed, but i routed it and it works, just cant use my high beam anymore -___-.



[throughfaith323]

dude im so sorry. i totally and honestly forgot... i've had alot of hw with finals and stuff coming up...i have school all day tomorrow so earliest i can get pictures is wednesday...im really sorry dude. ill try to remeber for wednesday. shoot me a text if you want and remind me wednesday...609-661-3345



[Brunoboy]

thanks yo, just get it when you can, im driving it the way it is right now though. seems ok lol



[throughfaith323]

lol cool...i have off school tomorrow. lab was cancleded /ubbthreads/images/graemlins/smile.gif so i should be able to get the pictures early tomorrow.



[Brunoboy]

Bump for pics yo! =]



[throughfaith323]

dang thanks for reminding me...ill be back in half hour with pictures.



[1990ggsxnj]

Yea Yea, almost believed you the LAST time /ubbthreads/images/graemlins/wink.gif



[throughfaith323]

here they are:

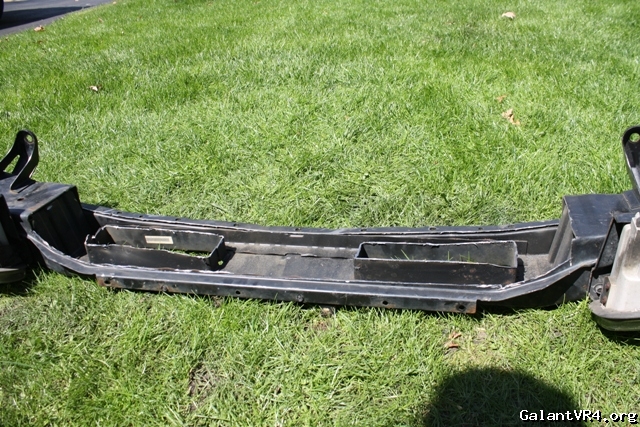

1:bumper cut
2:from front of car--left side of intercooler.

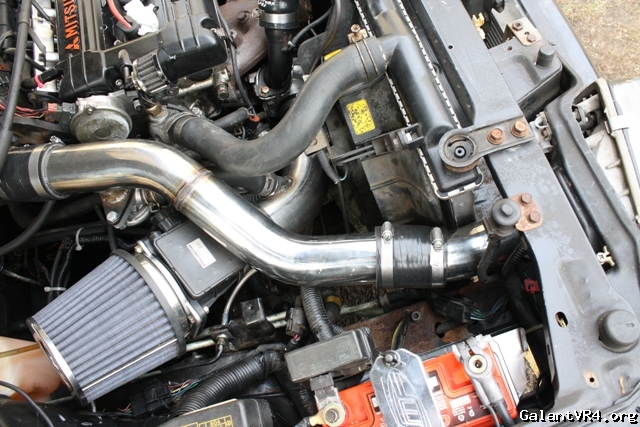

3:large view of routing

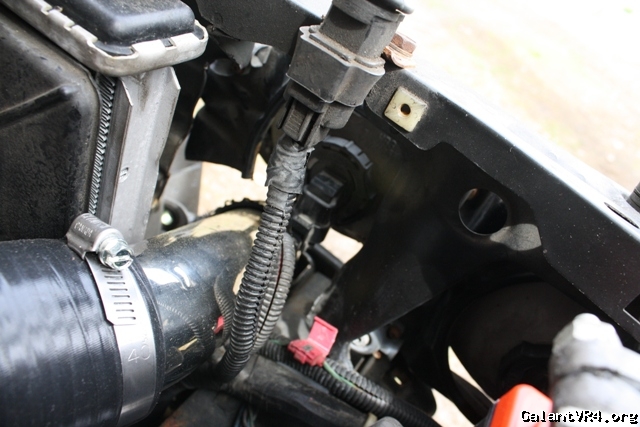

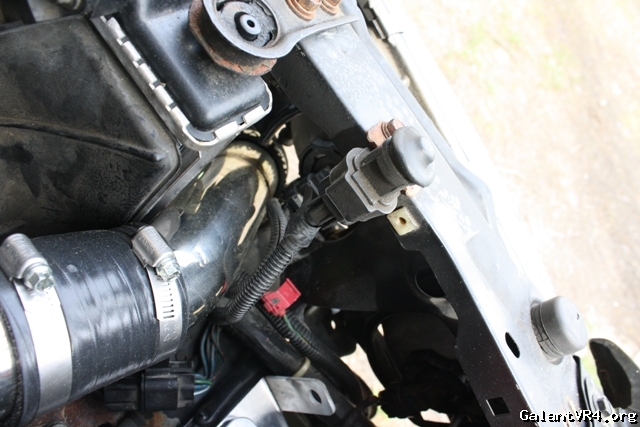

4:zoom view of where confusion might be...as you can see in this picture; from the intercooler goes the 45degree coupler then the short pipe starts off straight and as it goes past the radiator it take the short 45 degree bend to a straight coupler to the "Z" pipe with the BOV flange on it.

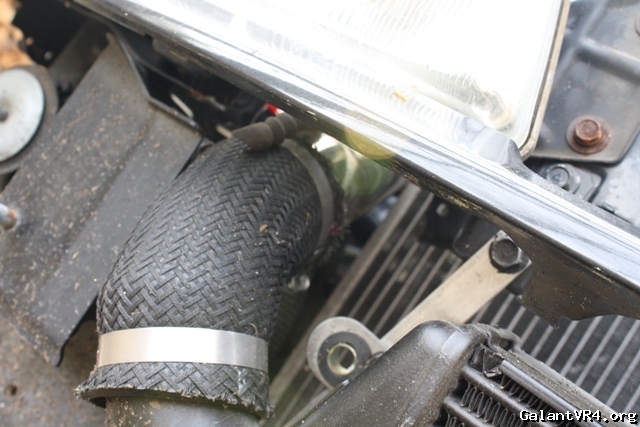

5:zoom view of light being cut(also jon has a picture somewhere else on this thread)

1----


2----


3----


4----


5----



[throughfaith323]

Quoting 1990ggsxnj:
Yea Yea, almost believed you the LAST time /ubbthreads/images/graemlins/wink.gif



hahaha now do you believe me Darren? i kept forgetting cause of school :/...sorry guys.



[464/2K]

Quoting throughfaith323:



3----






that pipe needs to be rotated like this



[throughfaith323]

Quote:
that pipe needs to be rotated like this




thanks for your input in trying to help me out...i know thats what your intentions were unless you ment it for burnopy. cause i can't rotate it like that since i used a piece of stainless steel i had left over from my exhuast. thats why mine is rotated clockwise about 45degrees. mine also did not line up perfect when it was the way yours is...i think its cause my radiator seemed to be a bit longer then the piping was made for >>> which caused my short pipe to be moved over to the left a tad >>> which left me with the rotated "Z"(upper intercooler) pipe. it worked out for me tho since the intake pipe just makes it under the "Z" pipe.



[CarRacer]

Any progress on selling the materials needed to get the money to pay back the $160 owed to Doug in Germany?



[464/2K]

Ahh i see.



[throughfaith323]

Quote:
Ahh i see.



yea....really really really clean car by the way. mine will be really clean by end of summer..i'm working on pulling all little things off andcleaning them and painting them. plus replacing all rusted bolts and eliminating all eye soars lol.
