Evo 8 cams in a 4G63
- Thread starter 1qkfwd
- Start date
Turbotalon1g
Member
I'm interested in this, but it does sounds like a lot of work for small results.
tektic
Well-known member
Would like to know how you indexed the cam angle sensor as well.
i used evo 8 intake cam as 1g intake cam.
cam gear dowels should be indexed first.
here's how to index it: click
once you've marked or indexed the cam gear dowels, put the evo 8 intake cam on the 1g intake side of the cyl head with the new cam gear mark/dowel at 12:00.

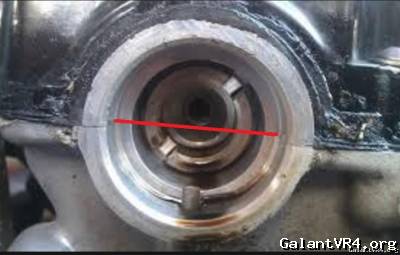

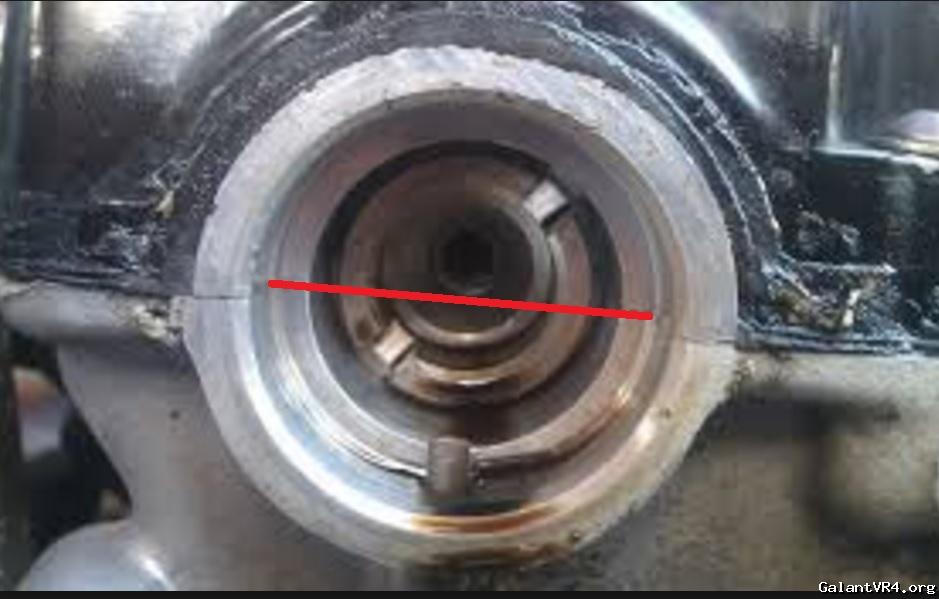

with the CAS side of the cam exposed but without the cam caps, you will have the base of the cas side cam cap as a reference line to mark the cam.
this line you will 'draw' will be the center line of the slot that needs to be machined on the evo 8 intake cam.

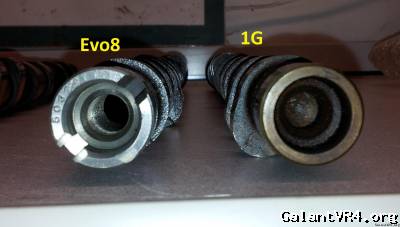

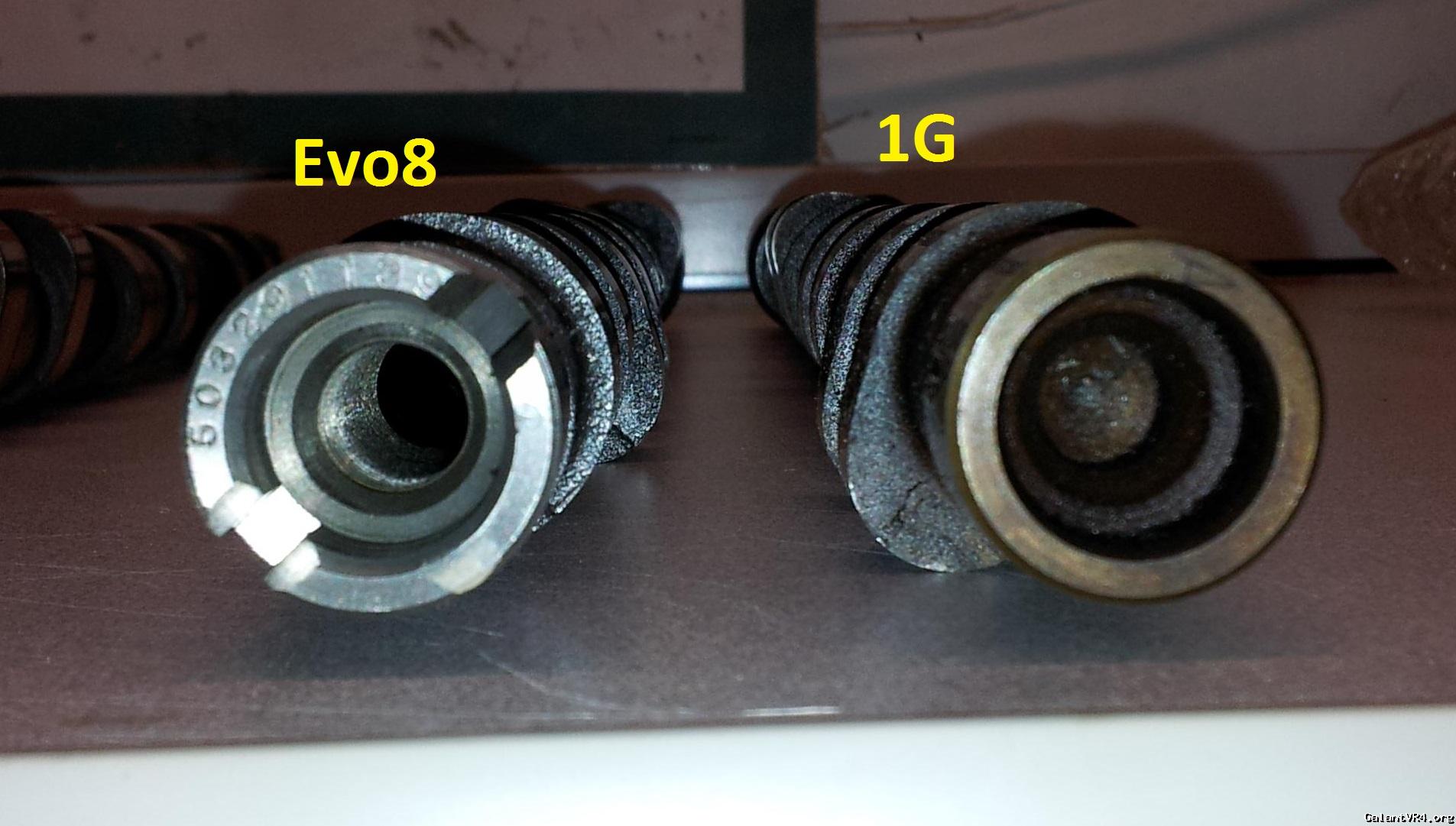

hope you get it from these pics below...[first pic is exhaust cam, but attached just to show you how it should be indexed]...
*thanks for the pics taken from gvr4 and dsmtalk...
cam gear dowels should be indexed first.
here's how to index it: click
once you've marked or indexed the cam gear dowels, put the evo 8 intake cam on the 1g intake side of the cyl head with the new cam gear mark/dowel at 12:00.
with the CAS side of the cam exposed but without the cam caps, you will have the base of the cas side cam cap as a reference line to mark the cam.
this line you will 'draw' will be the center line of the slot that needs to be machined on the evo 8 intake cam.
hope you get it from these pics below...[first pic is exhaust cam, but attached just to show you how it should be indexed]...
*thanks for the pics taken from gvr4 and dsmtalk...
Last edited:
tektic
Well-known member
That's a good thread I didn't find. Thank you. So to sum it up: aftermarket cam gears with two holes, mark parallel to the top surface of the head and then cut.
Last edited:
yes.
done it several times already with evo 7, hks, fp.
it was easier to find later evo cams than dsm ones, thus the need to study.
be careful with the aftermarket cam gears with the 2 dowel holes.
the dowel holes are 90deg apart, BUT the evo cam gears' timing marks inline aren't at 12:00 when the dowel holes is at 12:00.
take a look several times before actually putting the new dowel holes.
done it several times already with evo 7, hks, fp.
it was easier to find later evo cams than dsm ones, thus the need to study.
be careful with the aftermarket cam gears with the 2 dowel holes.
the dowel holes are 90deg apart, BUT the evo cam gears' timing marks inline aren't at 12:00 when the dowel holes is at 12:00.
take a look several times before actually putting the new dowel holes.
