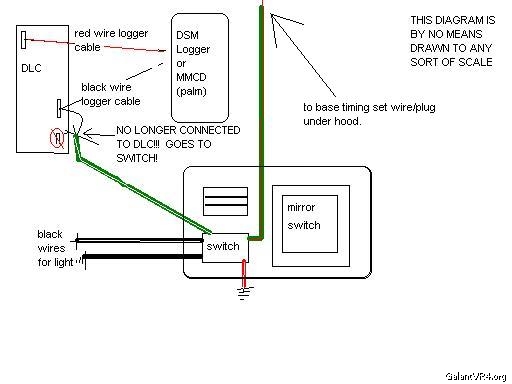

working on some sort of makeshift schematic now... i will first explain it with the wire colors and where they go (using a 1g DSM pwr/eco switch)
there are two black wires.. these power the light.. one goes to ground, one goes to power.. your choice.. it matters not which way you wire these, so long as you dont run the ground to the exact same place you're running the ground for the switch itself.. which happens to be a RED wire for our purposes. You can ground this anywhere that seems like a good solid earth (ground) connection. Then you use the GREEN with WHITE stripe for the LOGGER GROUND(the bottom connection in the DLC) and no longer connect the bottom wire to the DLC.. it goes straight to the switch. In the UP position this closes the circuit, grounding this wire to chassis. Now, you have one wire left over, and it's GREEN with a RED stripe... this goes all the way up thru the firewall, and into your timing set terminal. In the DOWN position, this creates an OPEN circuit for the logger ground and CLOSED circuit from the TIMING SET connection to EARTH/GROUND
The pwr/eco switches out of DSMs have diff. harnesses than a Galant, but same color coded wires at the switch. Either will work fine. You need to take out the little nose ring stud thing inside the switch that holds it down when you press it though.. i'll provide a couple pics if needed.
working on some sort of makeshift schematic now... i will first explain it with the wire colors and where they go (using a 1g DSM pwr/eco switch)
there are two black wires.. these power the light.. one goes to ground, one goes to power.. your choice.. it matters not which way you wire these, so long as you dont run the ground to the exact same place you're running the ground for the switch itself.. which happens to be a RED wire for our purposes. You can ground this anywhere that seems like a good solid earth (ground) connection. Then you use the GREEN with WHITE stripe for the LOGGER GROUND(the bottom connection in the DLC) and no longer connect the bottom wire to the DLC.. it goes straight to the switch. In the UP position this closes the circuit, grounding this wire to chassis. Now, you have one wire left over, and it's GREEN with a RED stripe... this goes all the way up thru the firewall, and into your timing set terminal. In the DOWN position, this creates an OPEN circuit for the logger ground and CLOSED circuit from the TIMING SET connection to EARTH/GROUND
The pwr/eco switches out of DSMs have diff. harnesses than a Galant, but same color coded wires at the switch. Either will work fine. You need to take out the little nose ring stud thing inside the switch that holds it down when you press it though.. i'll provide a couple pics if needed.
