Bolting up an EVO 8 suspension...Need advice

[4Grim]

There is great info for those planning on using the EVO suspension on the GVR4's with these threads. I do have a question though that I haven't seen brought up regarding GVR4 specific coilovers (IE: Ground Controls) with the OEM EVO struts and shocks?

Will the GVR4 specific coilovers be able to slide over the EVO strut and shock body's? I am sure the struts/shocks heights are similar but how about the actual strut/shock body's? I am asking because I am contiplating the idea of using the EVO suspension, but would like to use my Ground Controls instead of the EVO springs.



Quote:
How did you weld? I've got some good advise for welding struts off some other people if it comes to that. However I hope it doesn't.


I made the conversion. and when you weld in the bushings. get a wet towel and make short stich welds. cooling down the weld and the strut with the rag in between.

the front springs i cut one coil. starting from the top of the spring. it all worked quite well. but i had problems with camber afterwards.



[464/2K]

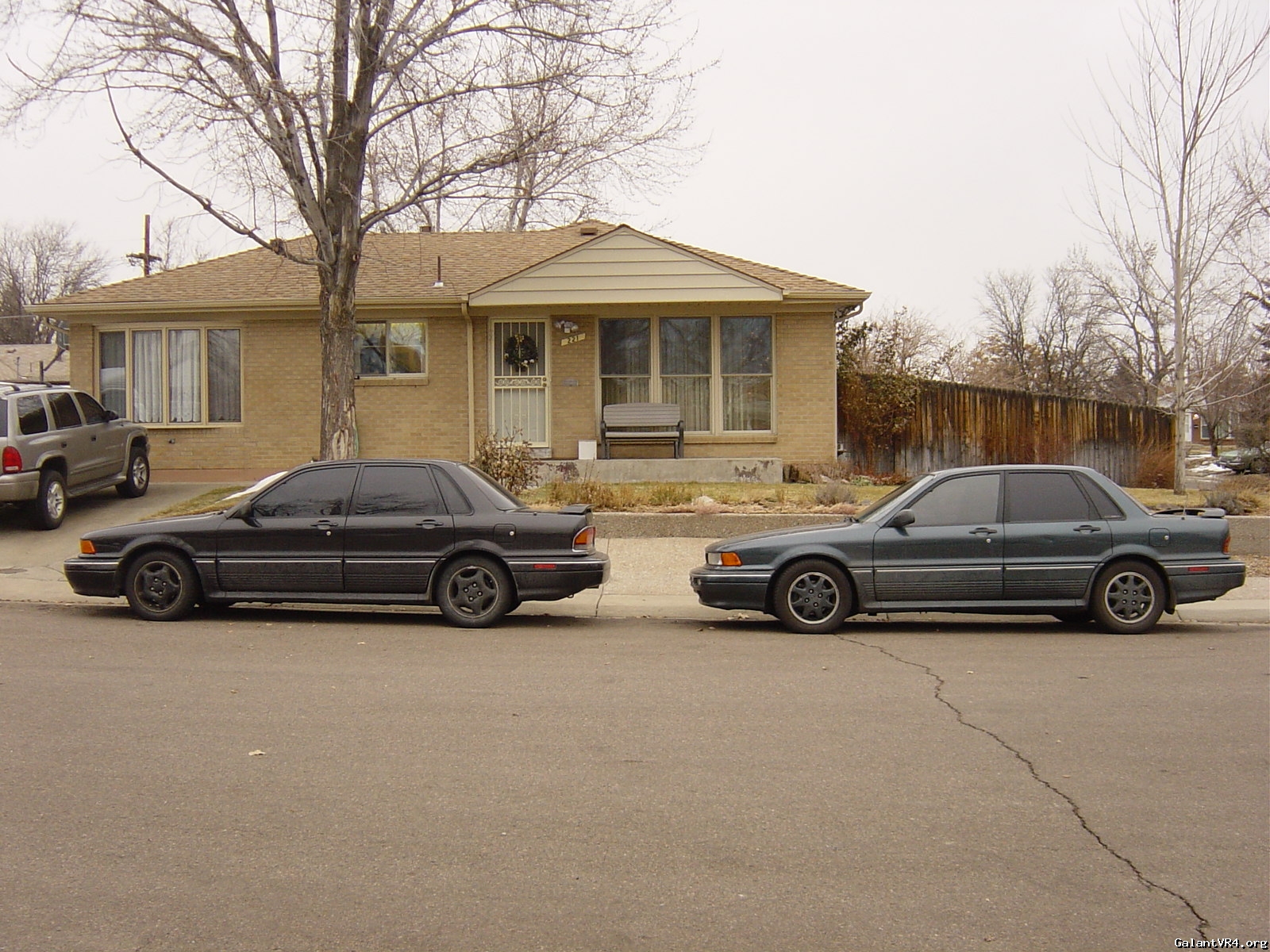

black car has AGX/H&R setup, green has MR bilsteins/Tein H-tech springs.



Quote:
What I want is a full coilover kit not springs but everything for the vr4 is either realy pricey or no one can get them any more . I am looking for somthing like the tein ha's or the jic magic fla2.



VR4 full coil over kits are VERY expensive. Why don't you just get a second hand set of TEIN coilovers for Evo 1 - 3 then modify the bottom bush to fit? Easy.
