Alternator Heat Shield Completed

CarRacer

Well-known member
Joined
Jun 28, 2007
Messages
4,372
Location
Shakopee, MN

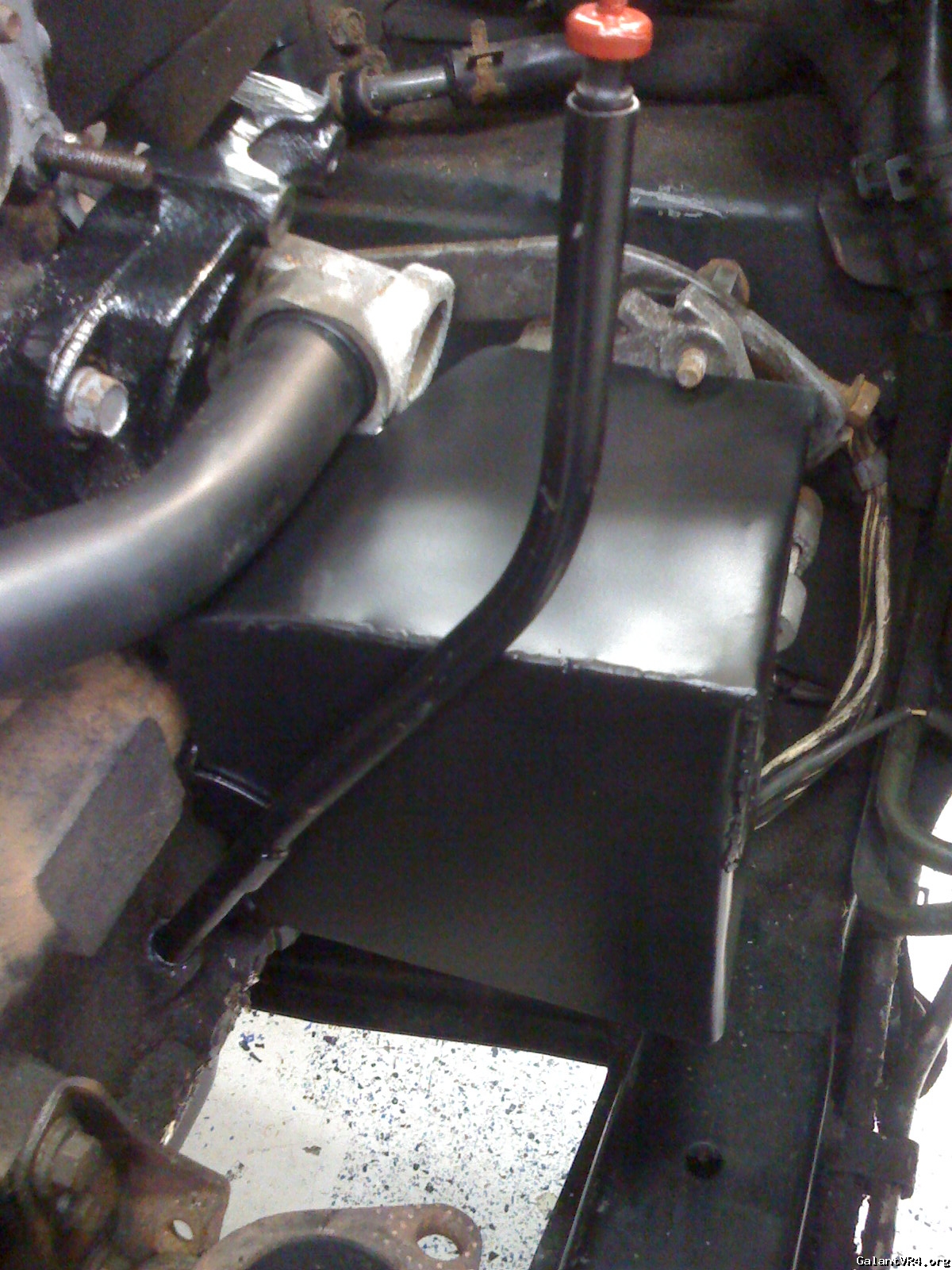

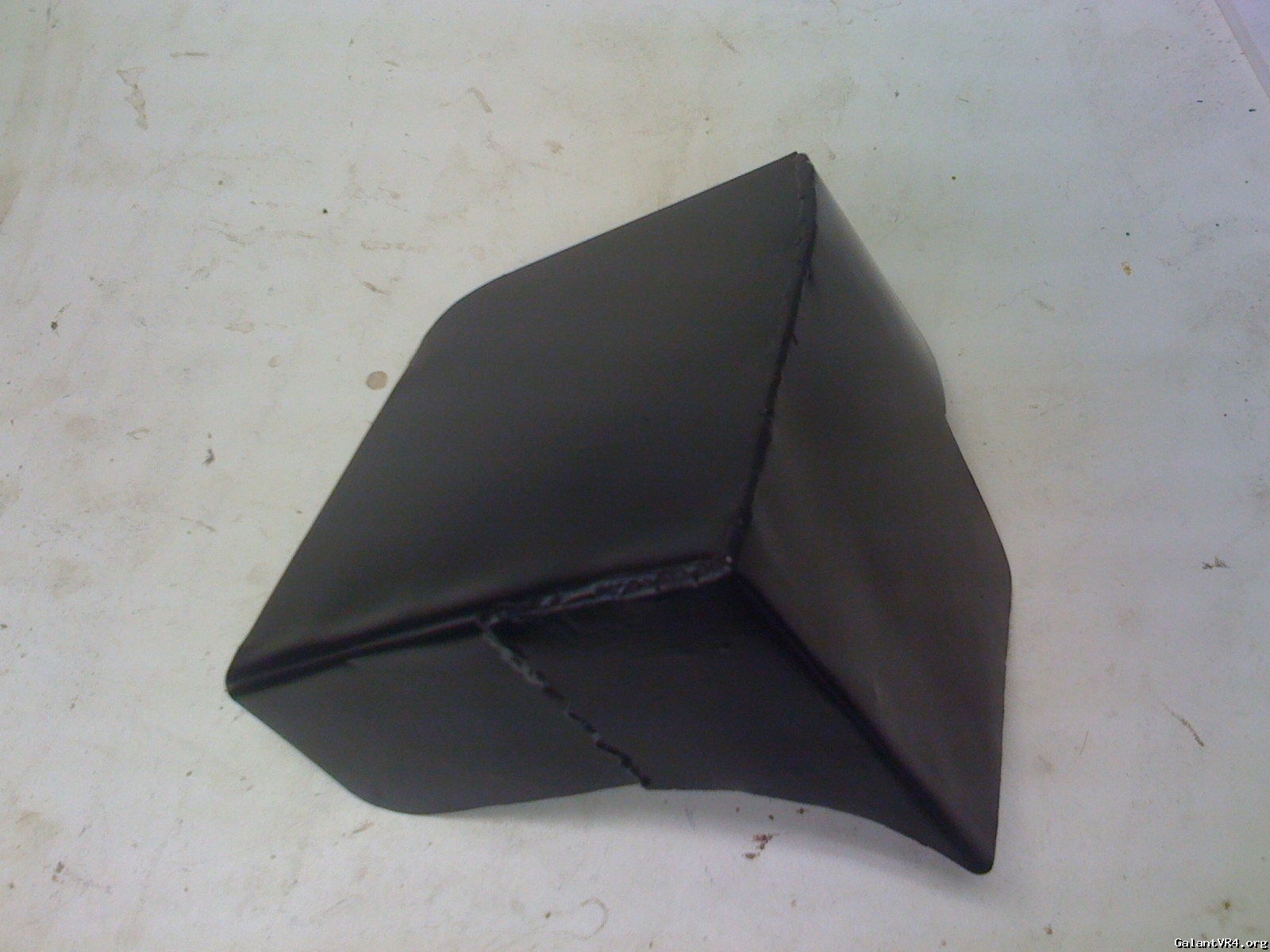

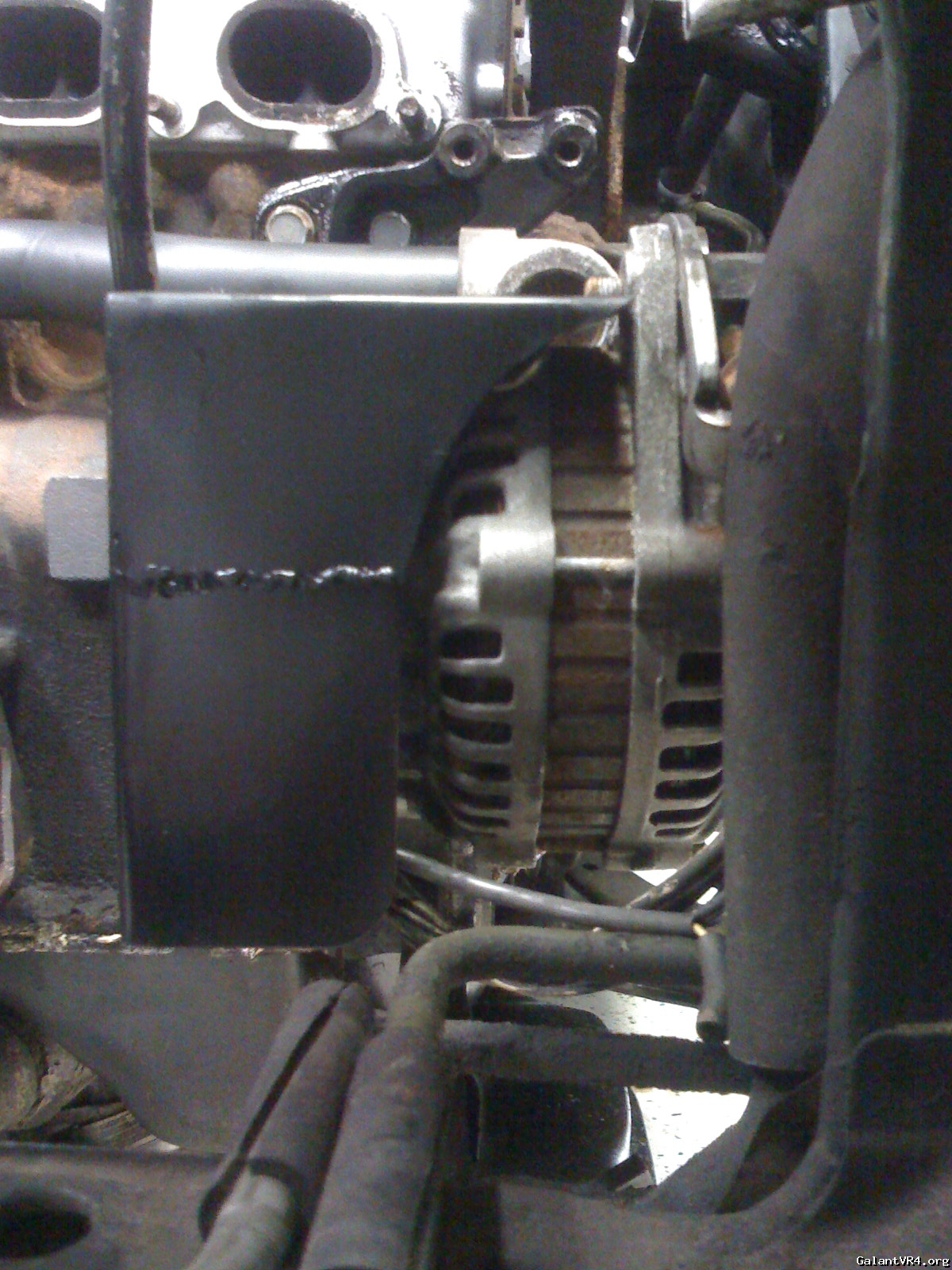

I cleaned up the welds and painted the shield to see how it would look finished.

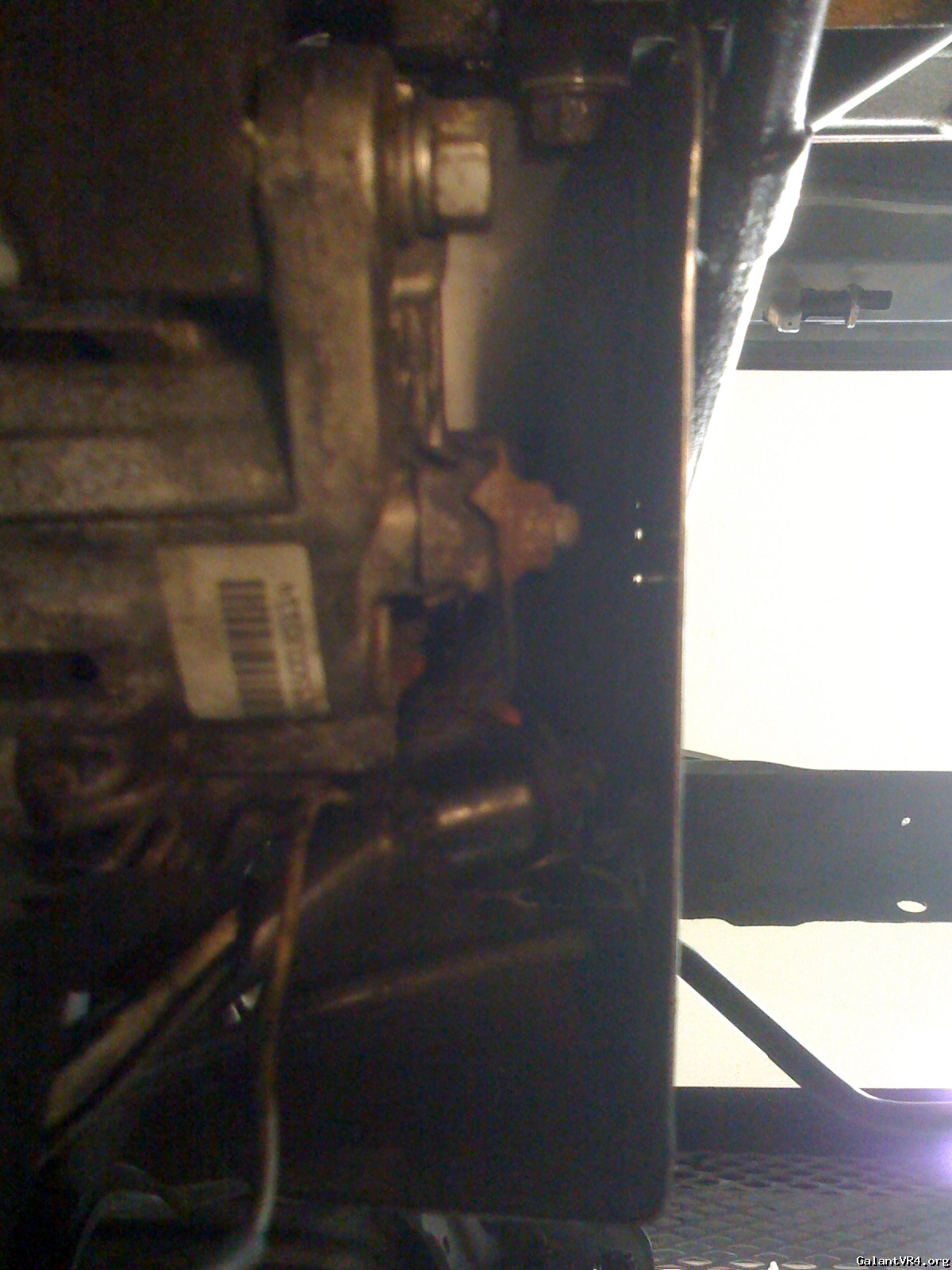

I don't think I'll have to swiss cheese it on the front either. I took a picture from underneath that really shows the airgap that it has. The front cutout allows air to the vents on the front as well. It protects the wires, so hopefully that will stop them from getting crispy and brittle. I think the design will be ok, but still feel free to comment. Consider this an open source heat shield. :p












strokin4dr

Well-known member
Joined
Aug 30, 2005
Messages
2,770
Location
Savannah, GA
That is plenty of room for air flow. I love it. If you do start selling them, I will definately take one.


cheekychimp

Well-known member
Joined
Apr 19, 2004
Messages
7,333
Location
East Sussex, U.K.
Quote:
I'm going to bolt it or pop rivet it to the dip stick mounting tab. I don't think that will hold it without letting it rattle around. I'm going to wait to find another mounting point until the belt is mounted and the alternator is in position.





Wouldn't a tab on the top right hand corner that the bolt mounting the alternator could fit through do the trick?

And I still want one of these BADLY!


mistaVR4

Well-known member
Joined
Dec 16, 2003
Messages
4,768
Location
Boulder, CO
+1 Paul! That seems like it would be a good place for another mounting point for sure! Either way, this is a really cool part you've made, I would be interested as well!
