4G63 Cyclone Non-Turbo - Unexplained warning lights in the speedometer

[Ali_6306]

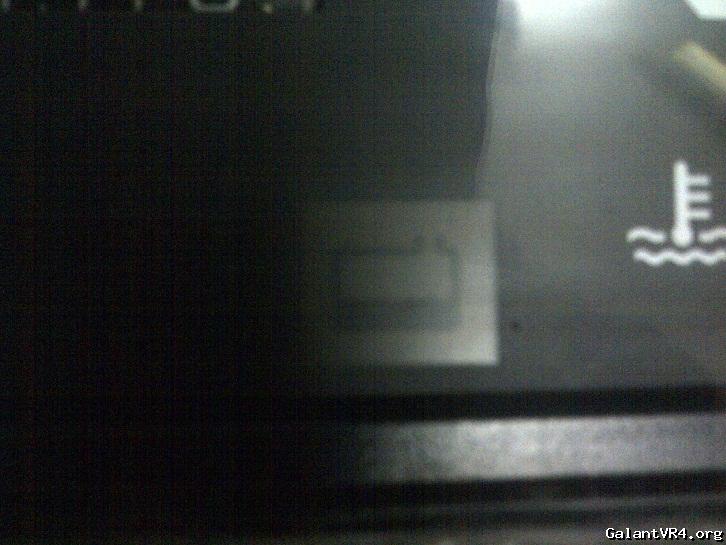

Guys here is another caution light. Its been in many speedometers I have seen, but never seen one that is working. I attempted to reverse engineer it, but there is no wire in this vehicle's harness to operate it. Just wondering what it may be for:



[fuel]

low coolant level in reservoir. The light was not used on all models, only in some select markets.



[Ali_6306]

That was quick. Thank you Fuel!



[Ali_6306]

I'm supposed to get the 15 ohms resistor today. Looking forward to testing it tomorrow.

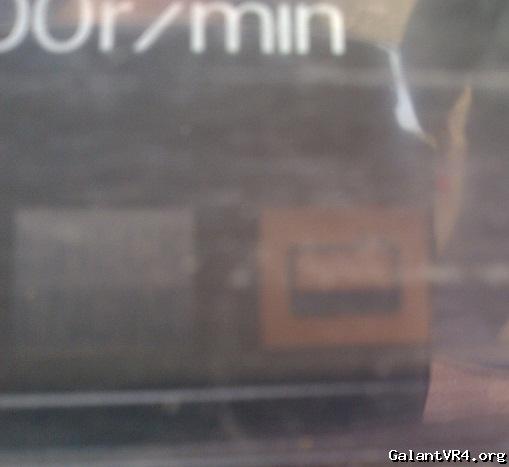

BTW, I got the following link which suggests that the rectangular box light is for headlight washer fluid level. Apparently they are right:
Mitsubishi low headlight washer fluid warning



[misterfixit]

Thats low headlight washer fluid, not coolant. In all the EU cars i've had it's been that.

I don't have a uk owners manual scanned here though so I can't post the manual blurb.

Has it got head light washers?

Rich



[Ali_6306]

Neither my car nor the donor had headlight washer. Which explains why this light was not operative.

About the CAT temp sensor: The resistance I got here was not working as it produced erratic resistance everytime I checked. So I visited the electronics market and without much effort got hold of a variable resistance (0 to 100 ohms). It works perfect once set to produce 15 ohms resistance. Before I connect it to ECM, can you confirm whether all I need to do is to connect the wires (red & white) to two interfaces of the variable resistance? Is there any thing else I need to pay attention to?

I believe if the light goes out, it means success. /ubbthreads/images/graemlins/smile.gif

Ali



[misterfixit]

yup. Just connect the two wires to the load.

As it's a variable resistance you could do a sweep and let us know whats the minimum it goes out at /ubbthreads/images/graemlins/smile.gif

Rich



[Ali_6306]

Sure Rich. Will do so as I couple it tomorrow. TGIF! /ubbthreads/images/graemlins/smile.gif

Ali



[Ali_6306]

Hi Rich,

Issue fixed. I connected the wires to the resistance and light goes out. Thankyou for the help mate! (Y)

The variable resistance I have ranges from 1.3 to 108 ohms. I checked all through the range, but the CAT temp light stays off until it is disconnected.

Thank you again for the guidance!

Regards,

Ali



[misterfixit]

Cheers for that!

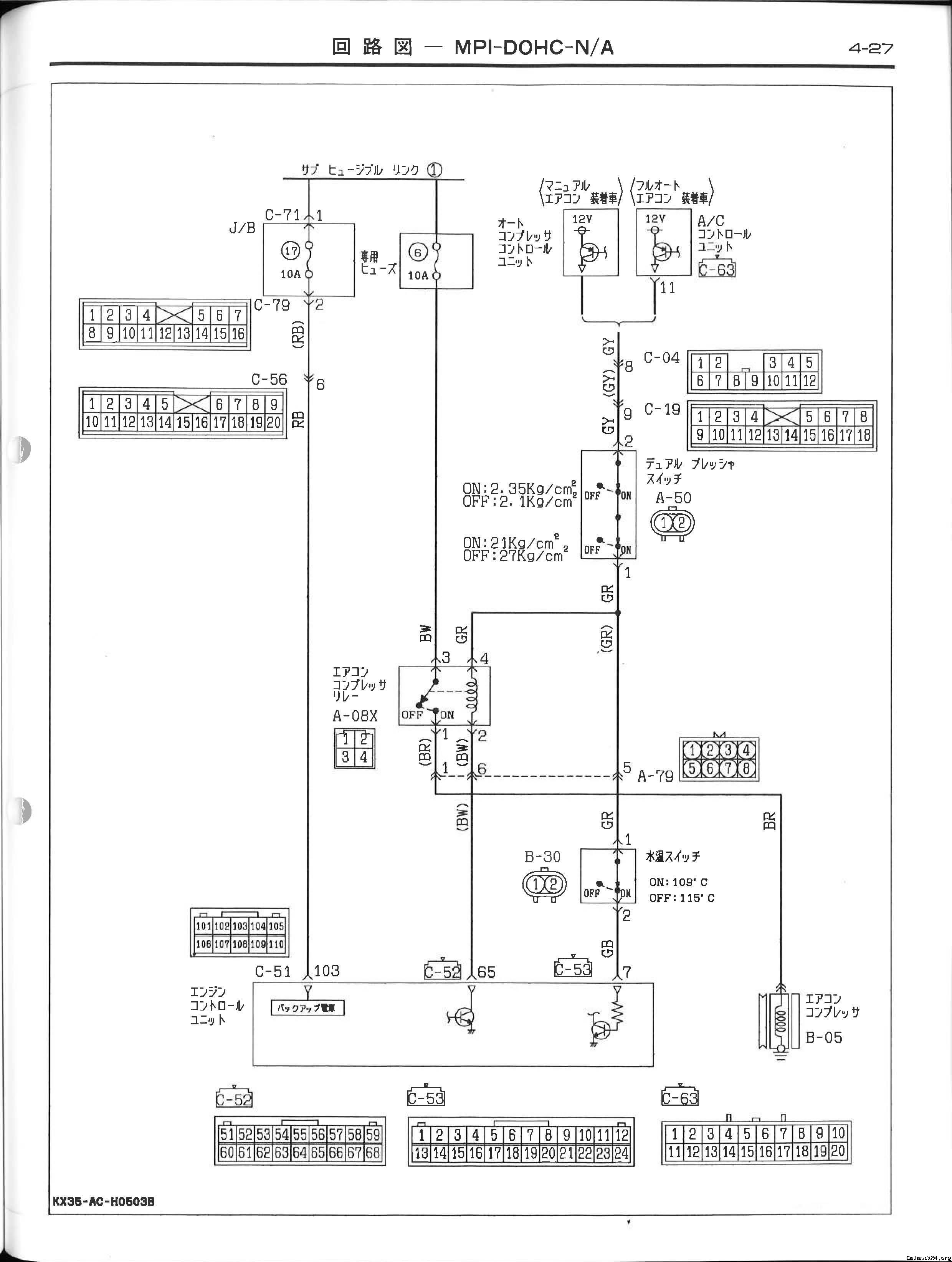

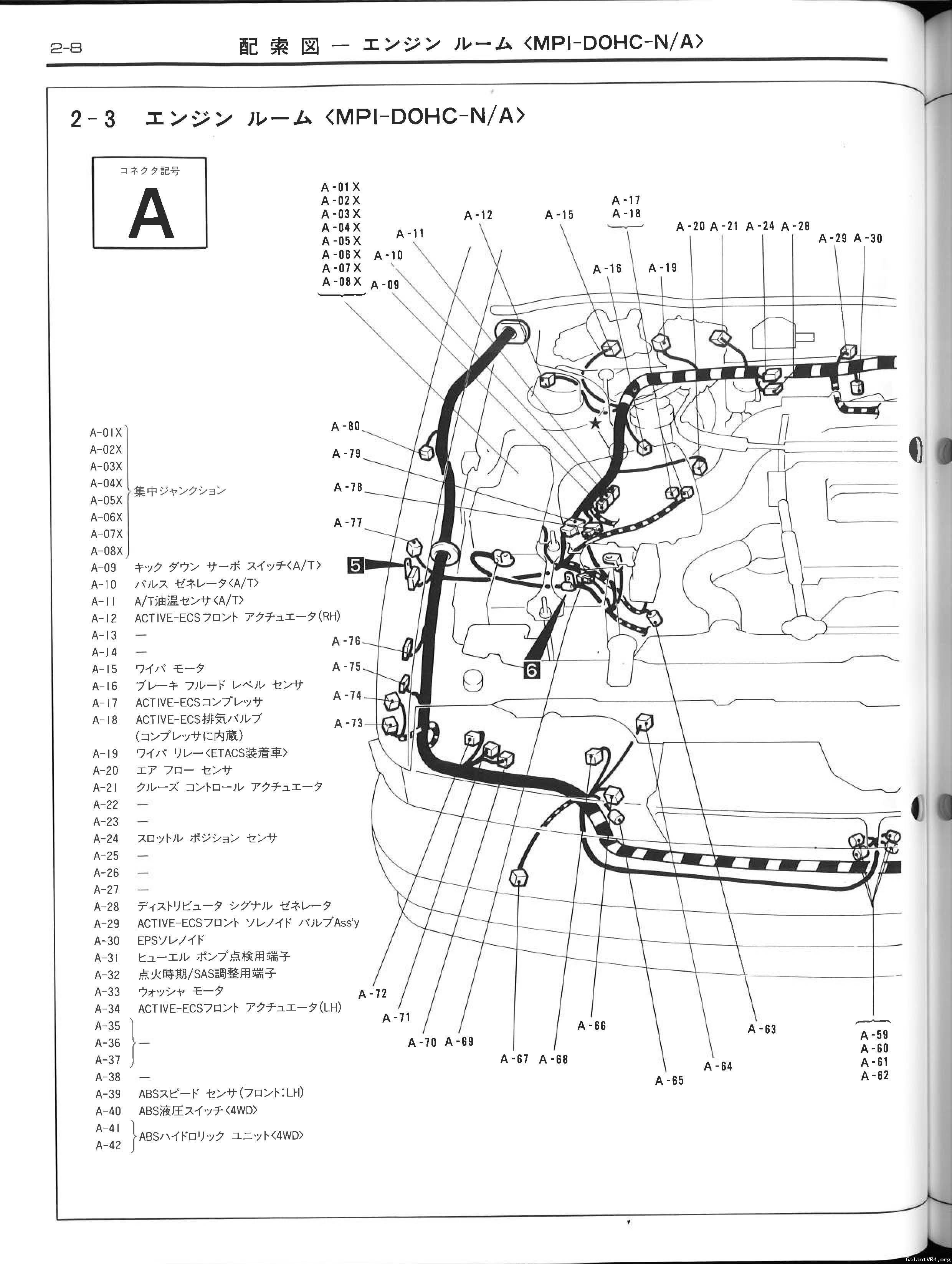

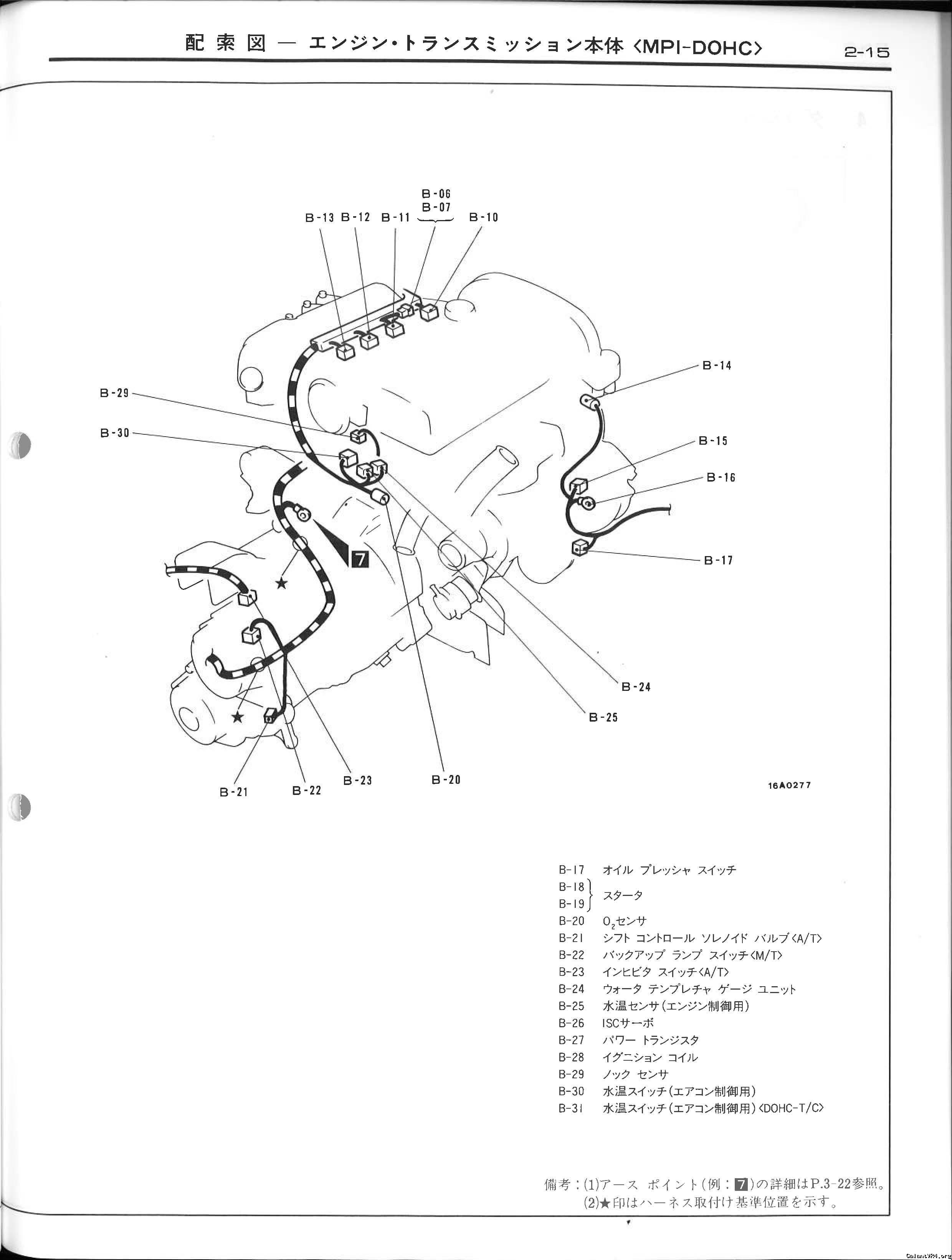

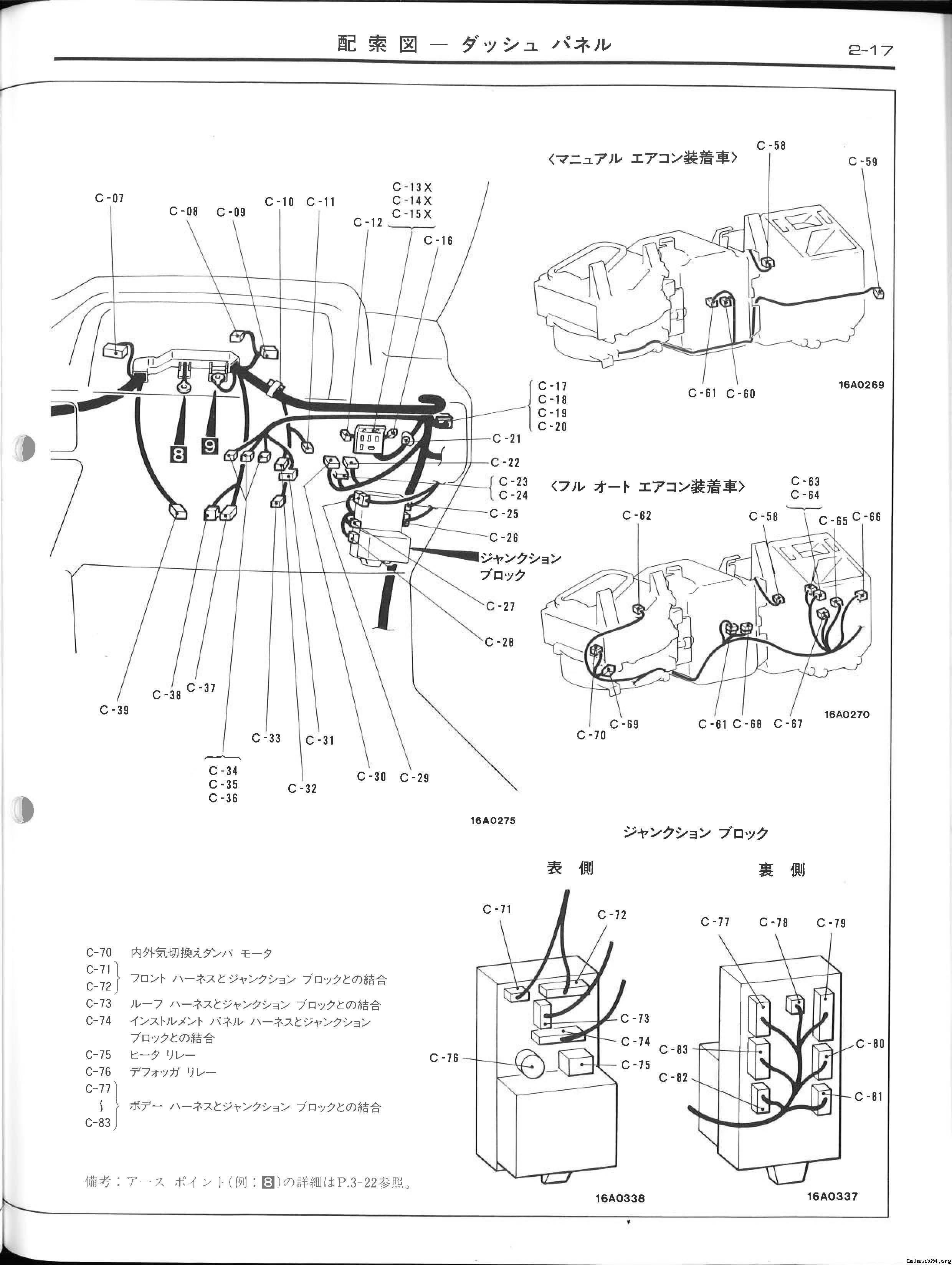

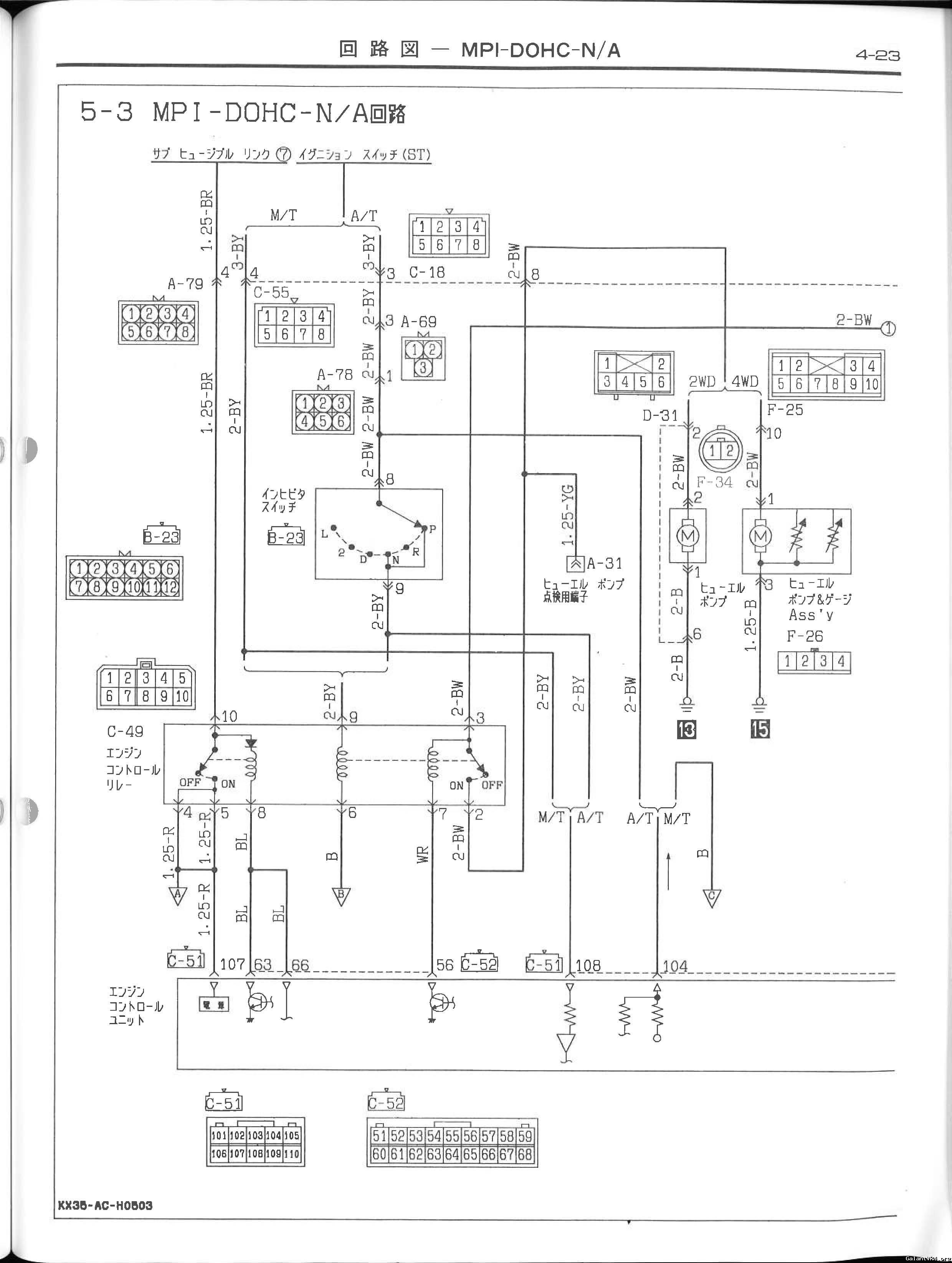

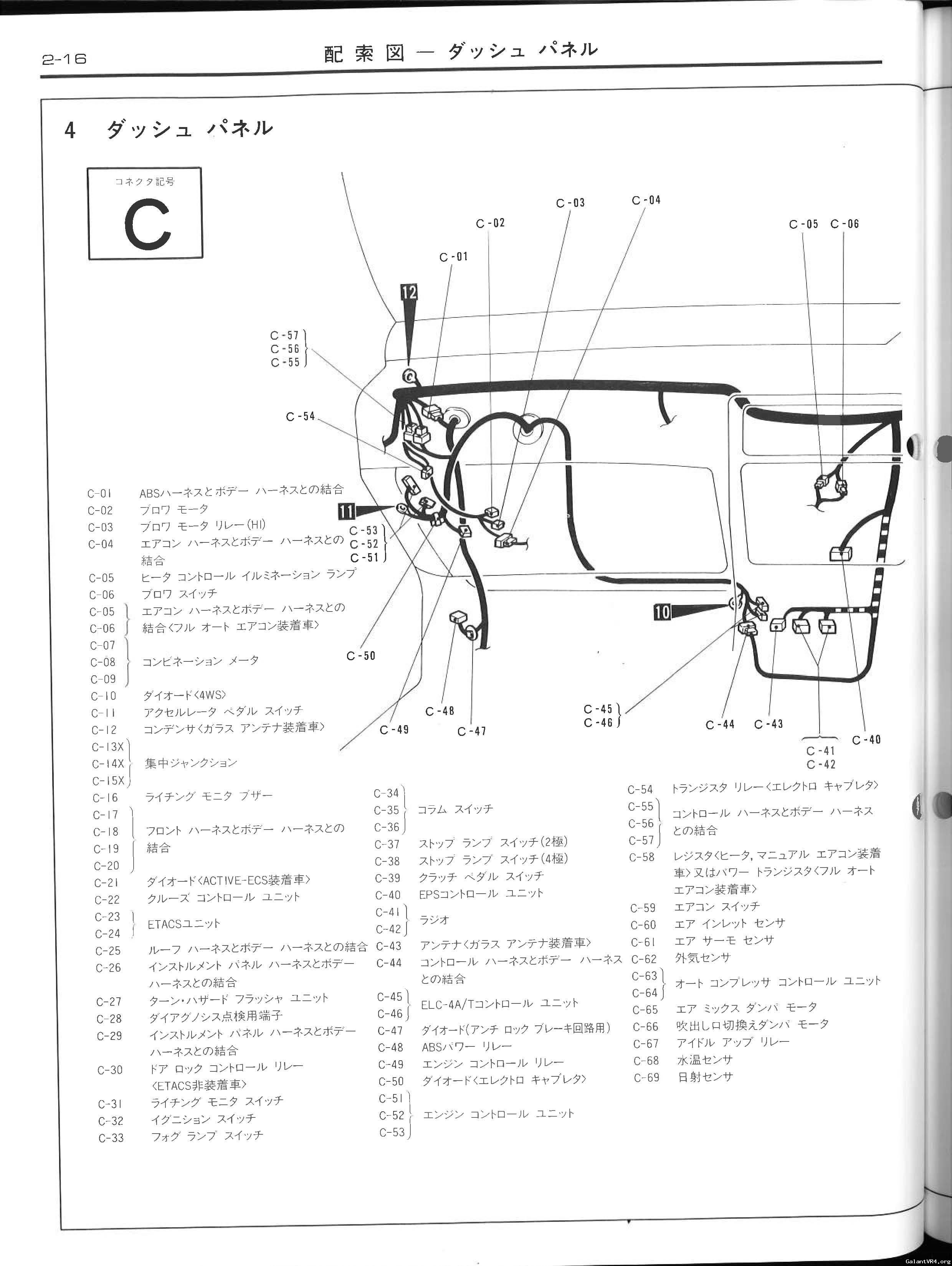

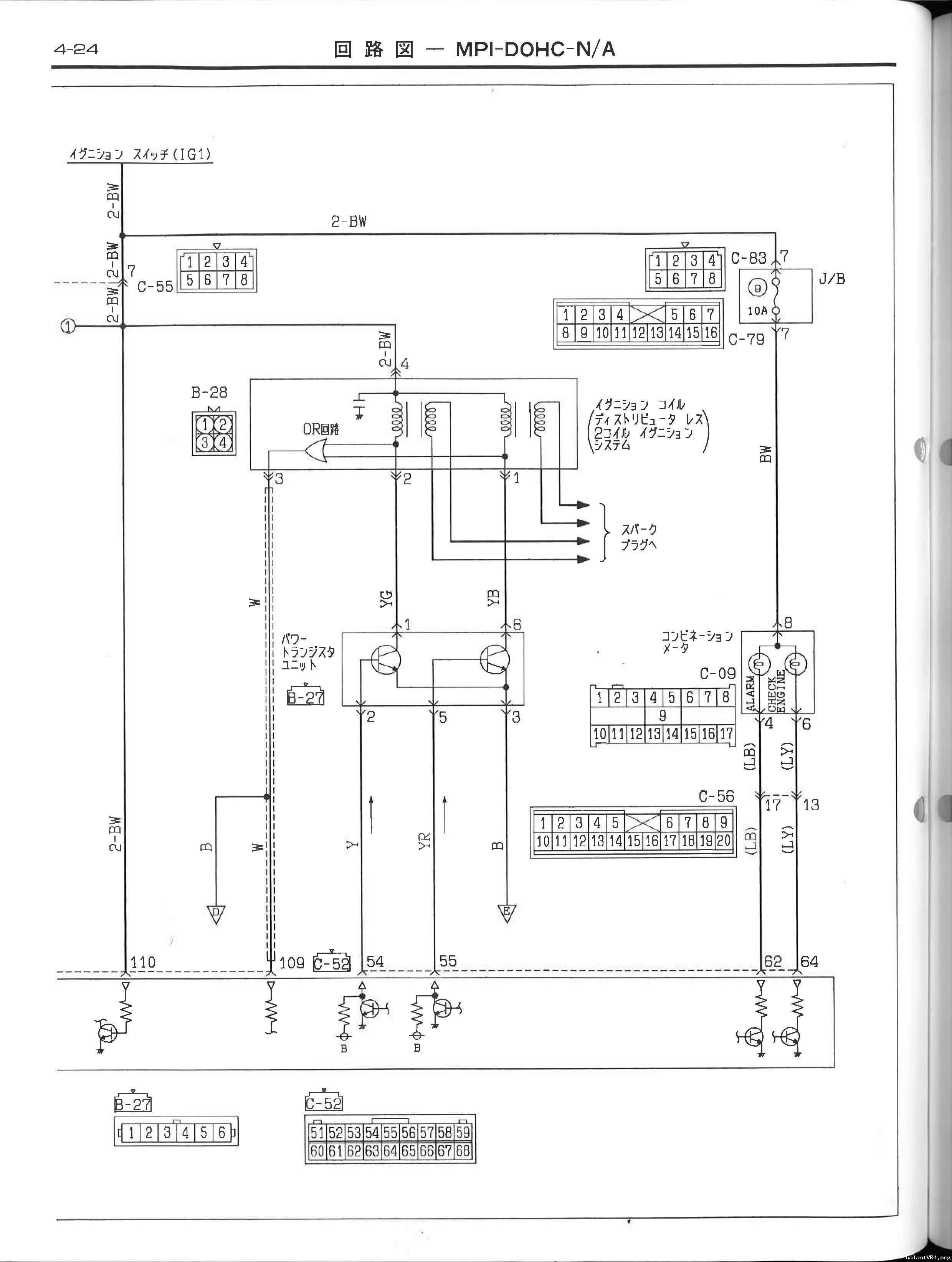

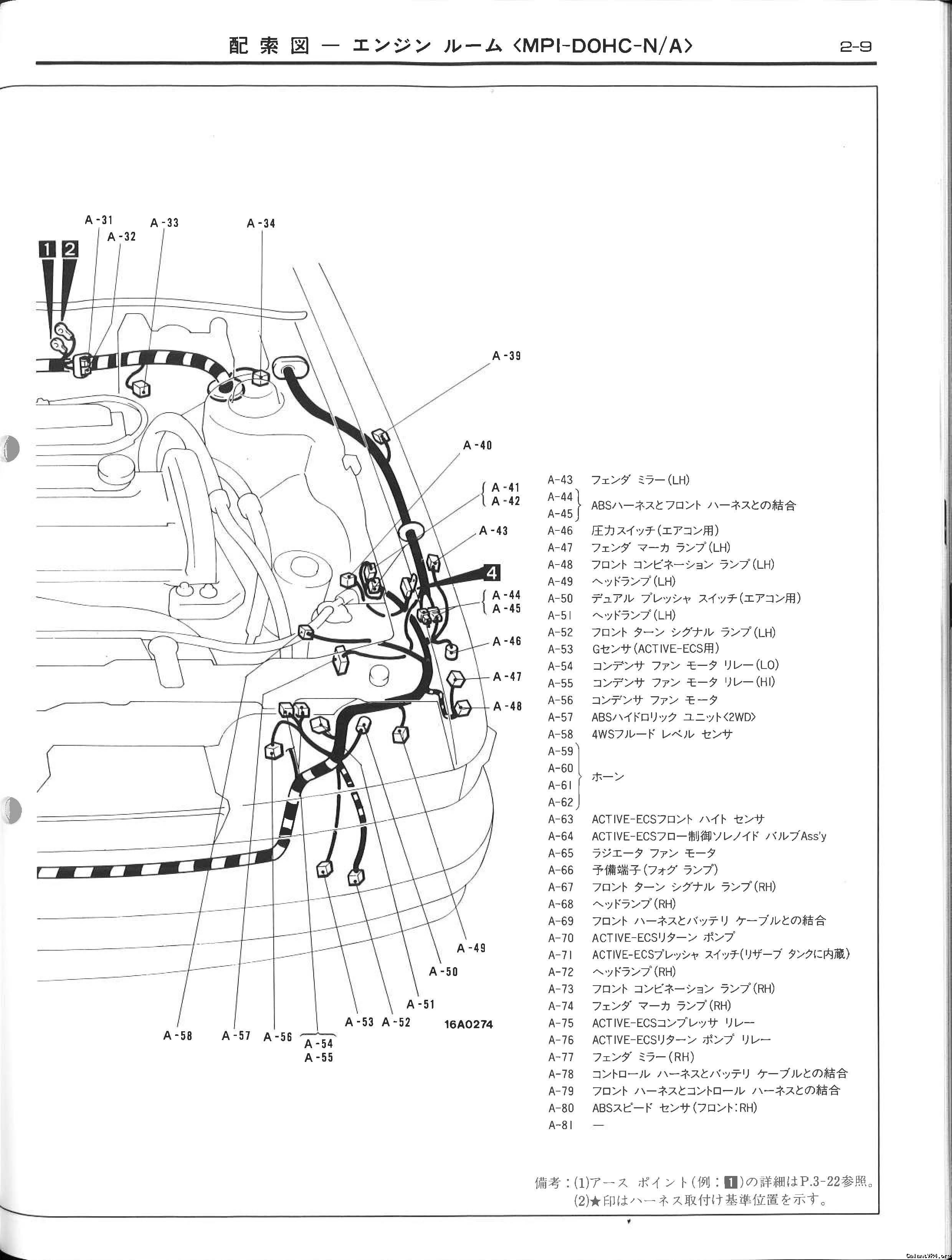

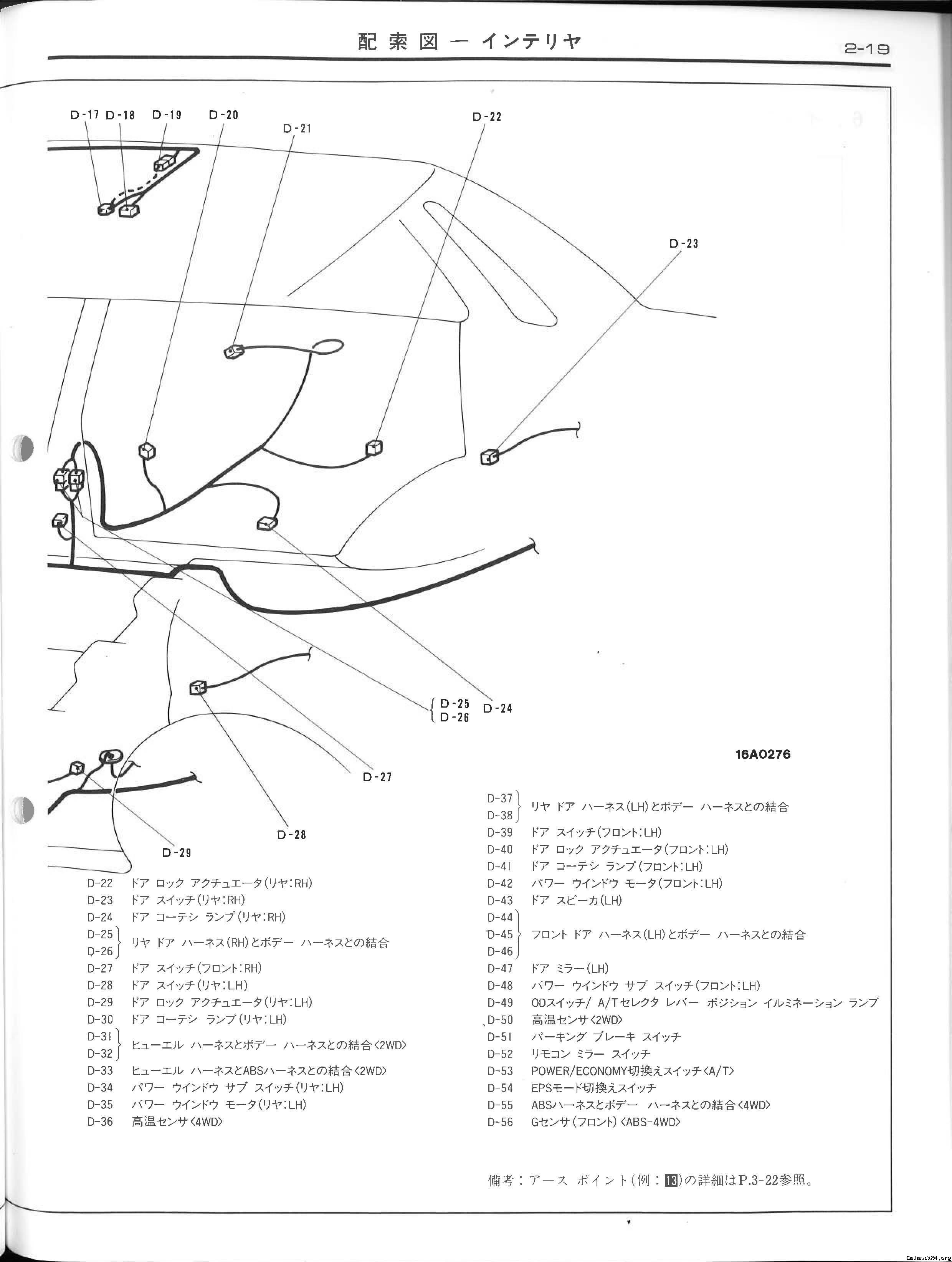

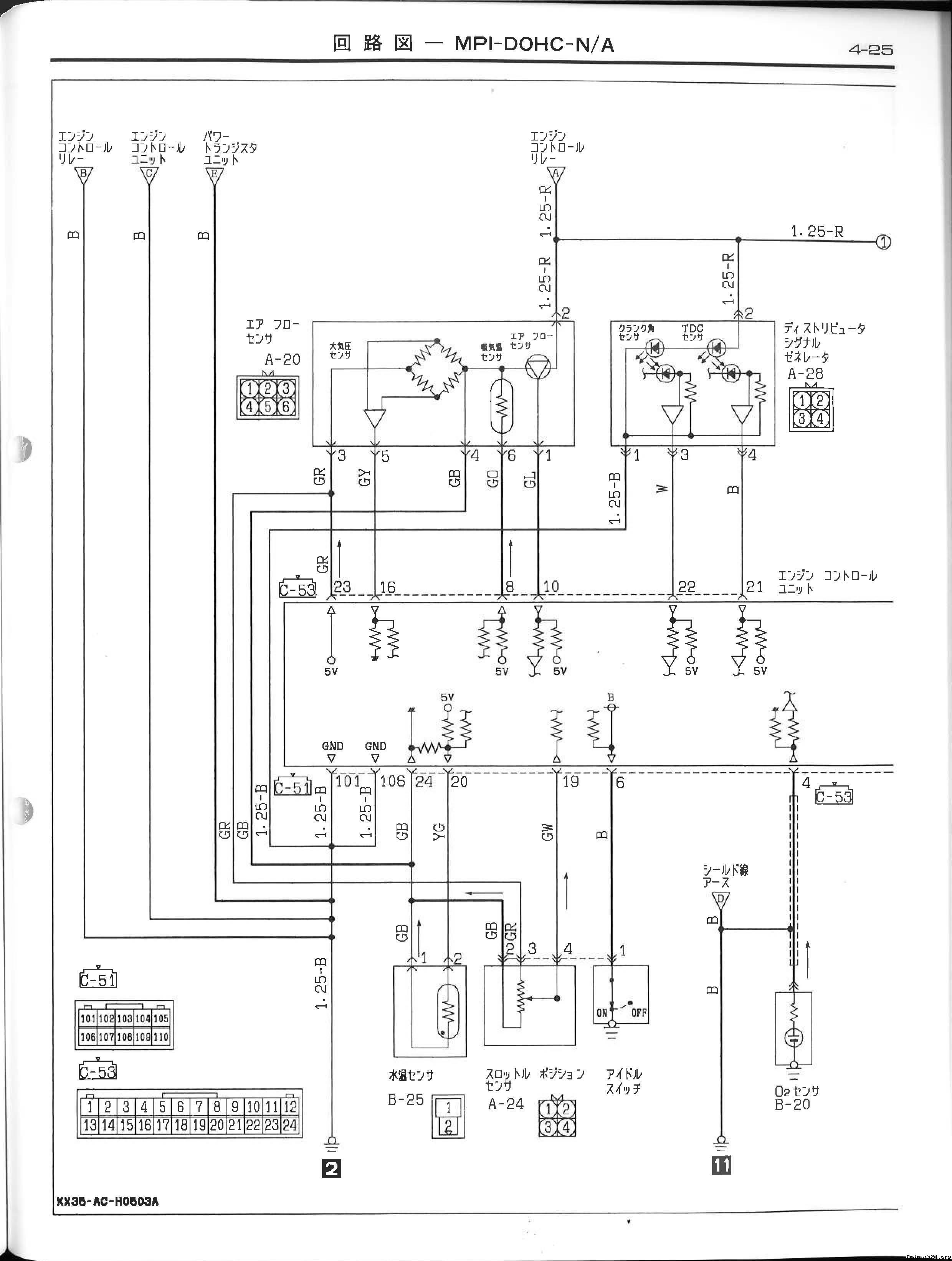

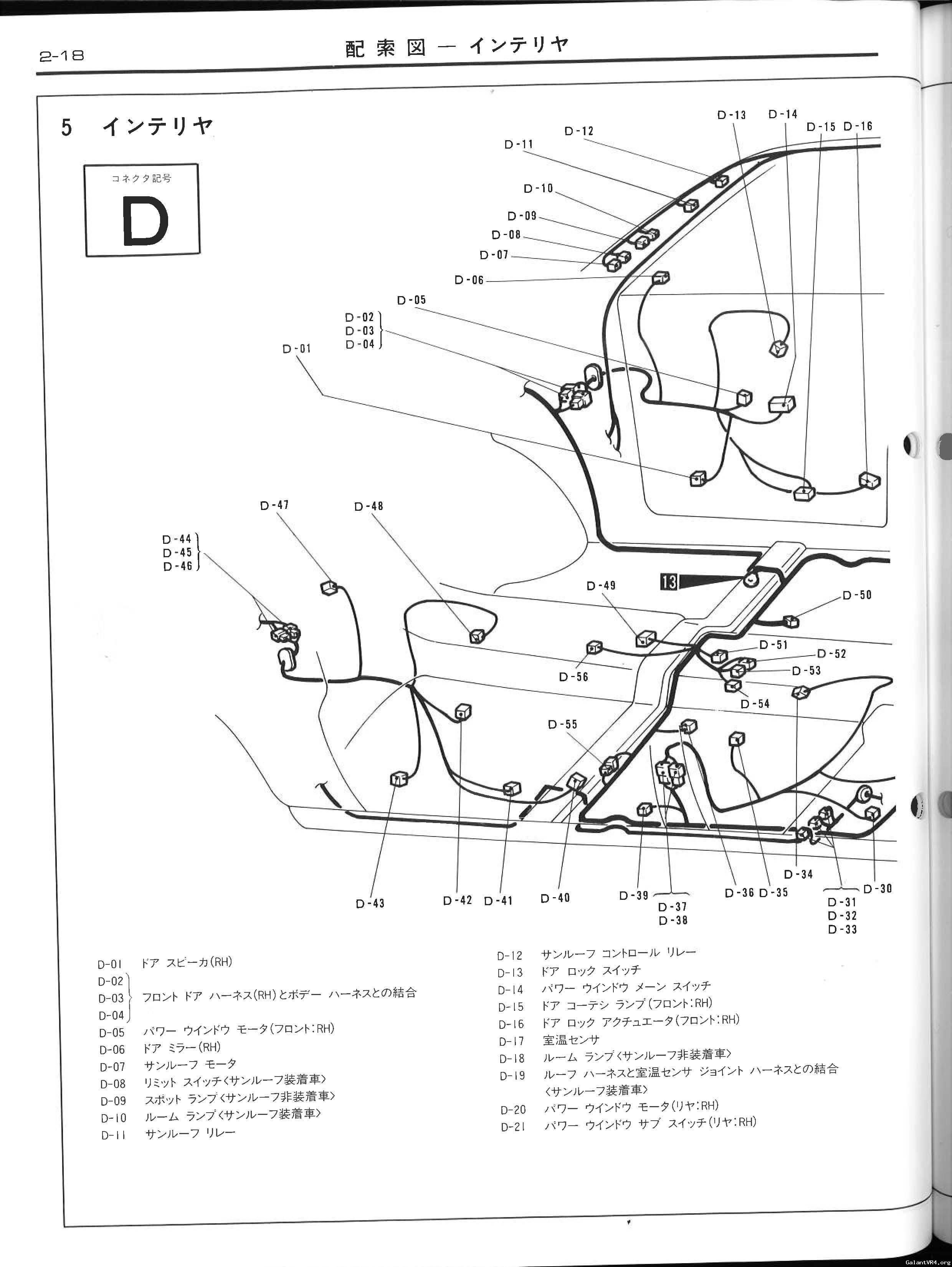

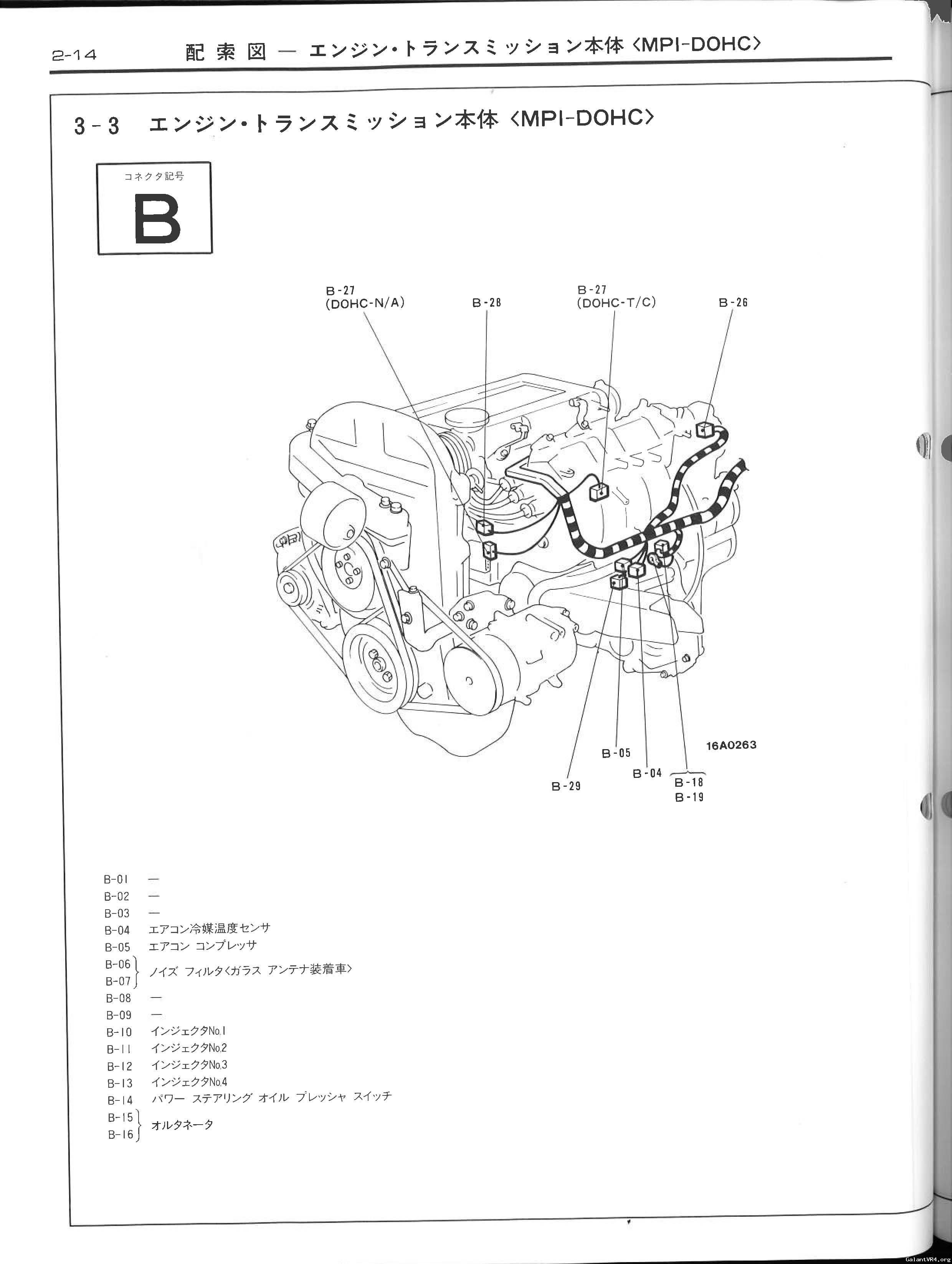

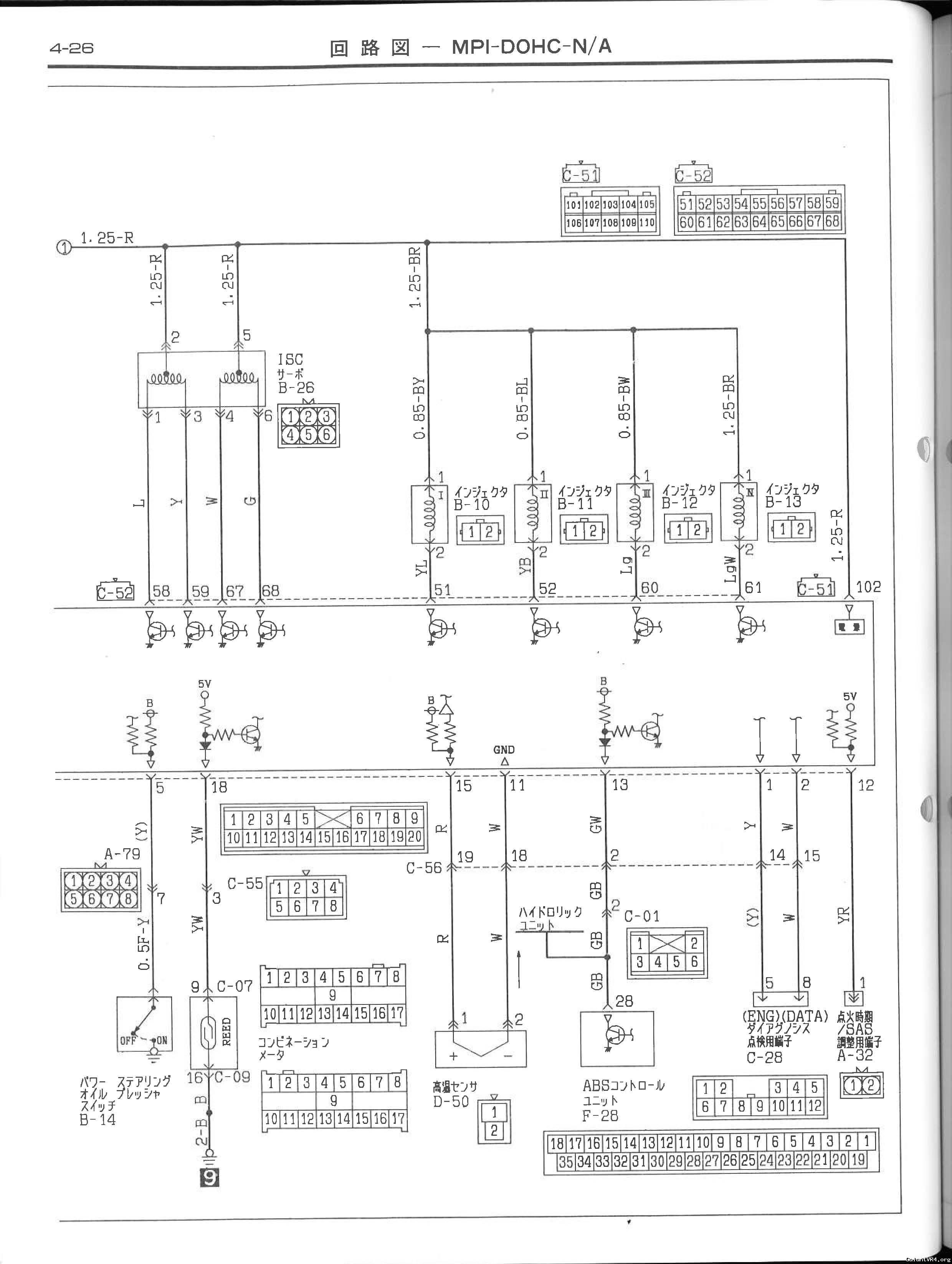

Here's the wiring for 87.10 N/A 4G63. Config diags too:
