white plugs ecu pin-out

[gmp]

Hey guys ,
I'm trying to find a pin out diagram for these white plugs under the dashboard that go from ecu too the fuseblock / gauges .. any one play with these ever? Would be from a 92 gvr4.
I'm trying to re pin for an evo 2 dash wiring/ plug is my reasons for the needed info thanks in advance.

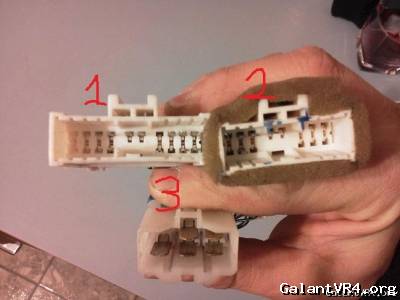

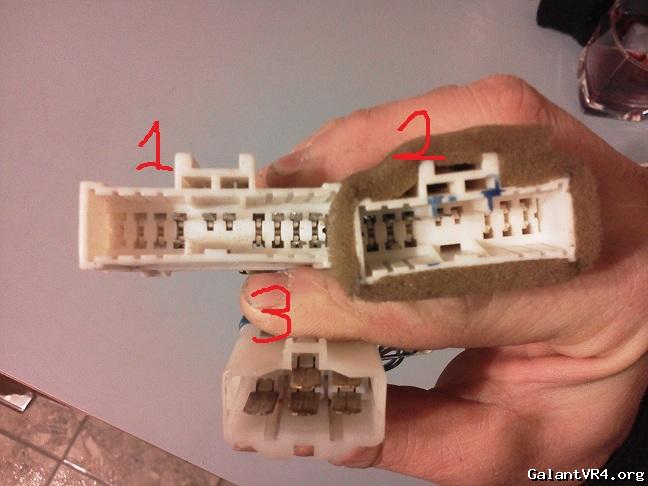

Here is the plugs in question turbodsm is to going to post it I hope for some reason I can't



[TRBODSM]



[gmp]

Maybe this will help my cause... Now my only question is the pinout the same as a 1g colors as well anyone?
Projectzerog wiring



[FlyingEagle]

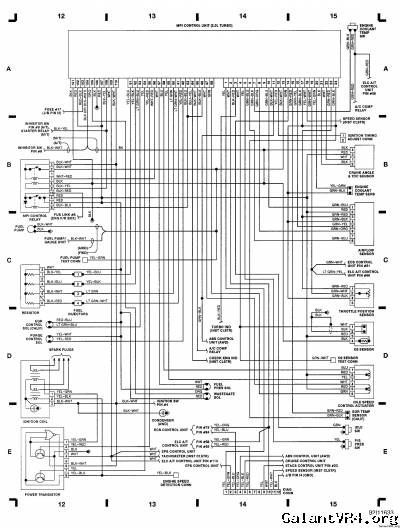

1991 Galant VR4 fanout sheet:



[gmp]

So this is for my reference but figured i would post it here.
Im trying to mate a stripped down GVR4 harness to a 89mirageman Plug and play harness for a 93-96 4dr mirage evoclone.
I have had a hell of a time getting the conversion right so im posting pictures for me and others to use for reference at a later date.

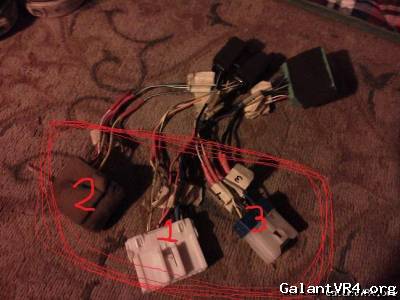

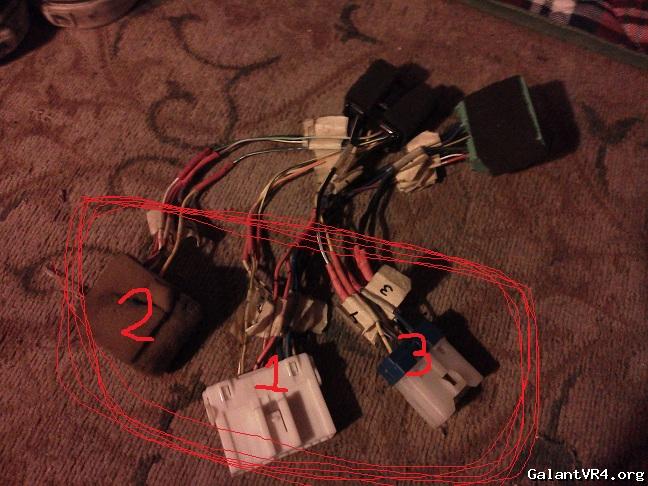

So these are the plugs in question there suppose to fit the dash harness of the mirage which they do perfect. But they dont fit a GVR4 enigine harness i found the difference in 1g to GVR4 engine harnesses its these plugs i believe.

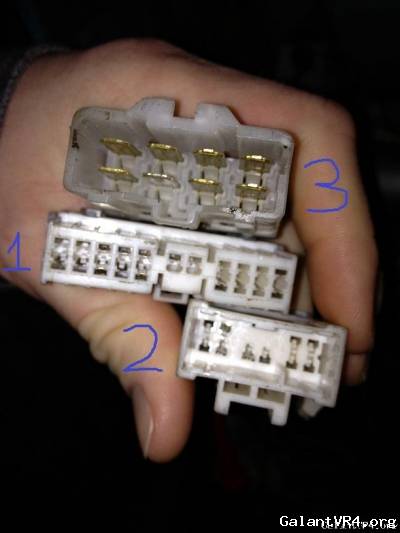

So first is the white plugs im going to repin the second set of pictures is from a 1g harness that obiviously isnt the same plugs that are suppose to mate to the plug'n play..

So here go's






So if you compare the plug pictures to a 1g you can see there totally different so what are the plug on the plug'n play
Maybe from a 90 dsm?

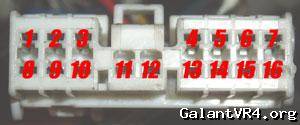

This would be #1 on the p'n p harness but plugs are different.

Once again different plug to what i need this would be #2 on plug in play

And This would be #3 close but pin/wiring isnt in the plug 'n play



[89Mirageman]

Those 3 plugs on the adapter will plug into any 1g dsm 91-94 manual engine harness. Are the bottom pics of the GVR4 harness?



[gmp]

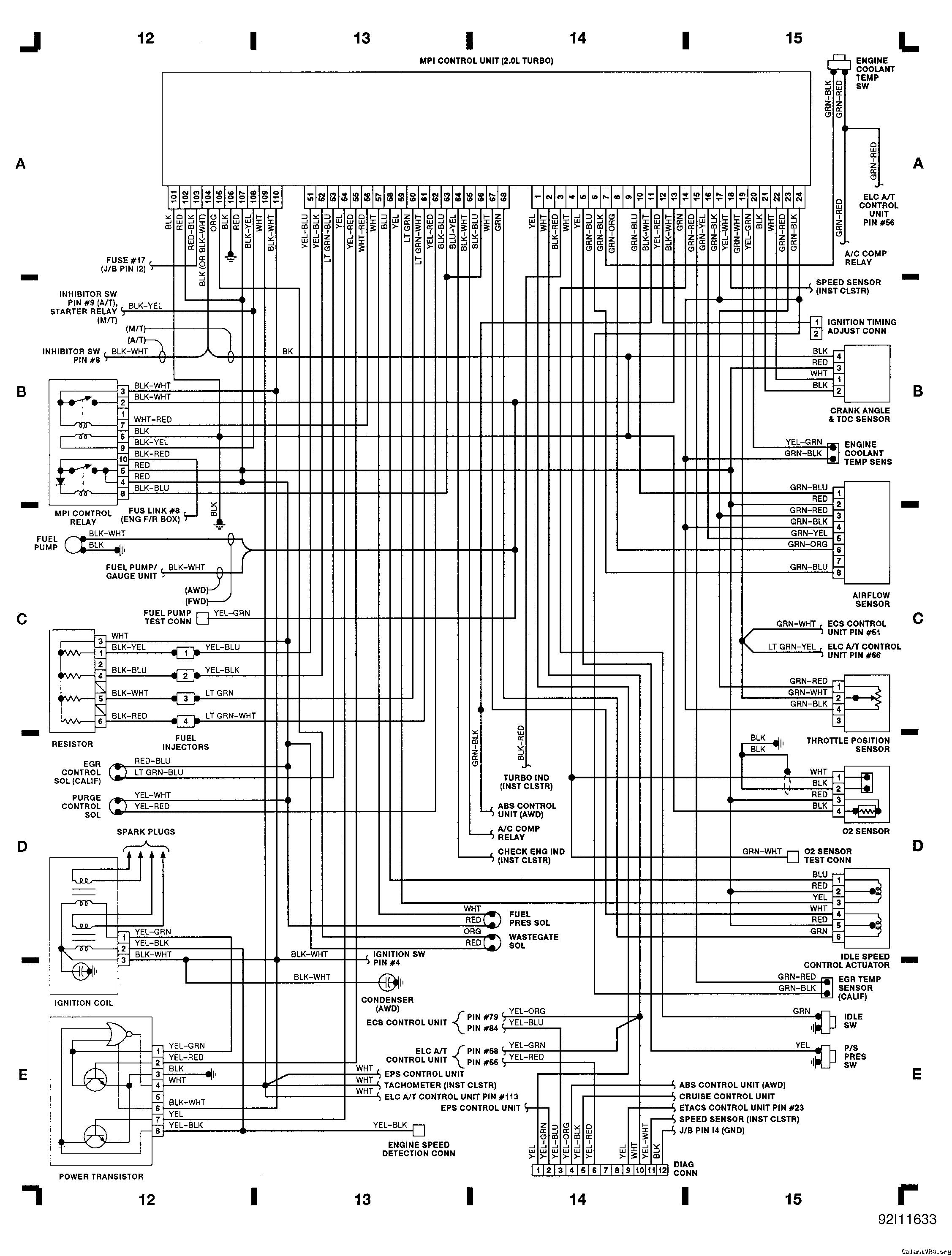

projectzerog wiring and simplified 1g harness the bottom ones are from projectzerog.com there simplified wiring diagram from a 1g to use in a rwd swap here is the link to there page.



[gmp]

So this is my take on it all for gvr4 i traced each wire one by one to see where they went. So this is my pin out
For the GVR4 white harness plugs there are alot of pins missing now after my wiring stripe down!!
Hand drawn and all if some one wants to type it all up i would be for it. But as of now im to tired.

More tomorrow when i get some time to work on my wiring so everyone can read it not just my chicken scratch.

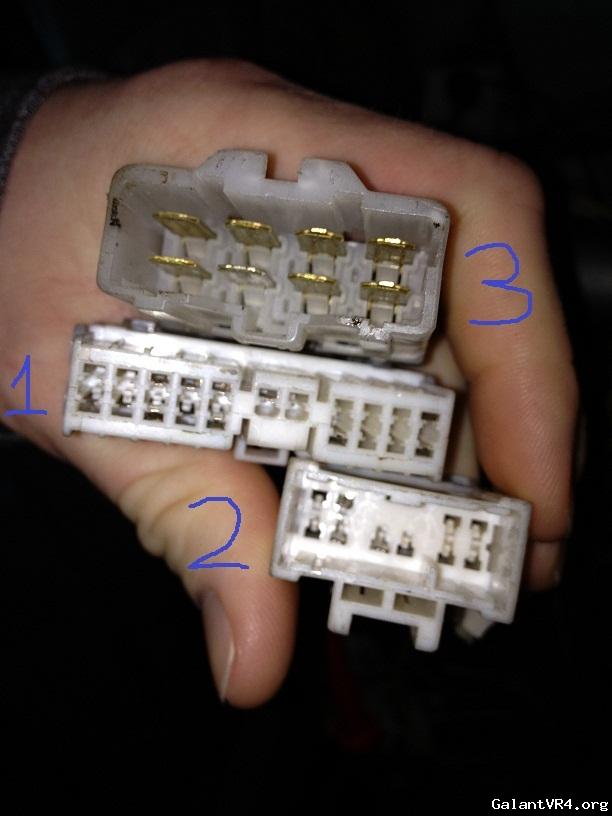

For now these are the GVR4 white plugs alot different then a 1g harness



[89Mirageman]

Oh OK, they are using a 90 dsm engine harness in those pics. Two of the plugs are slightly smaller on the 90's.



[gmp]

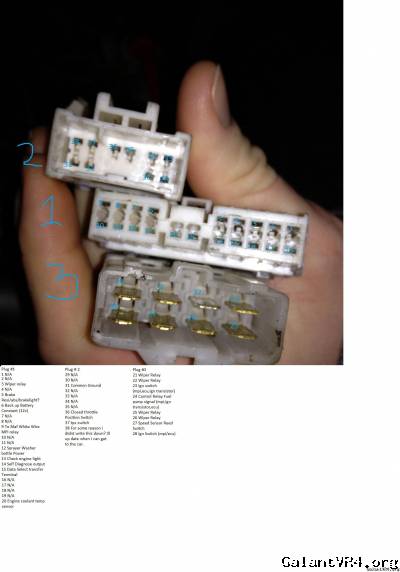

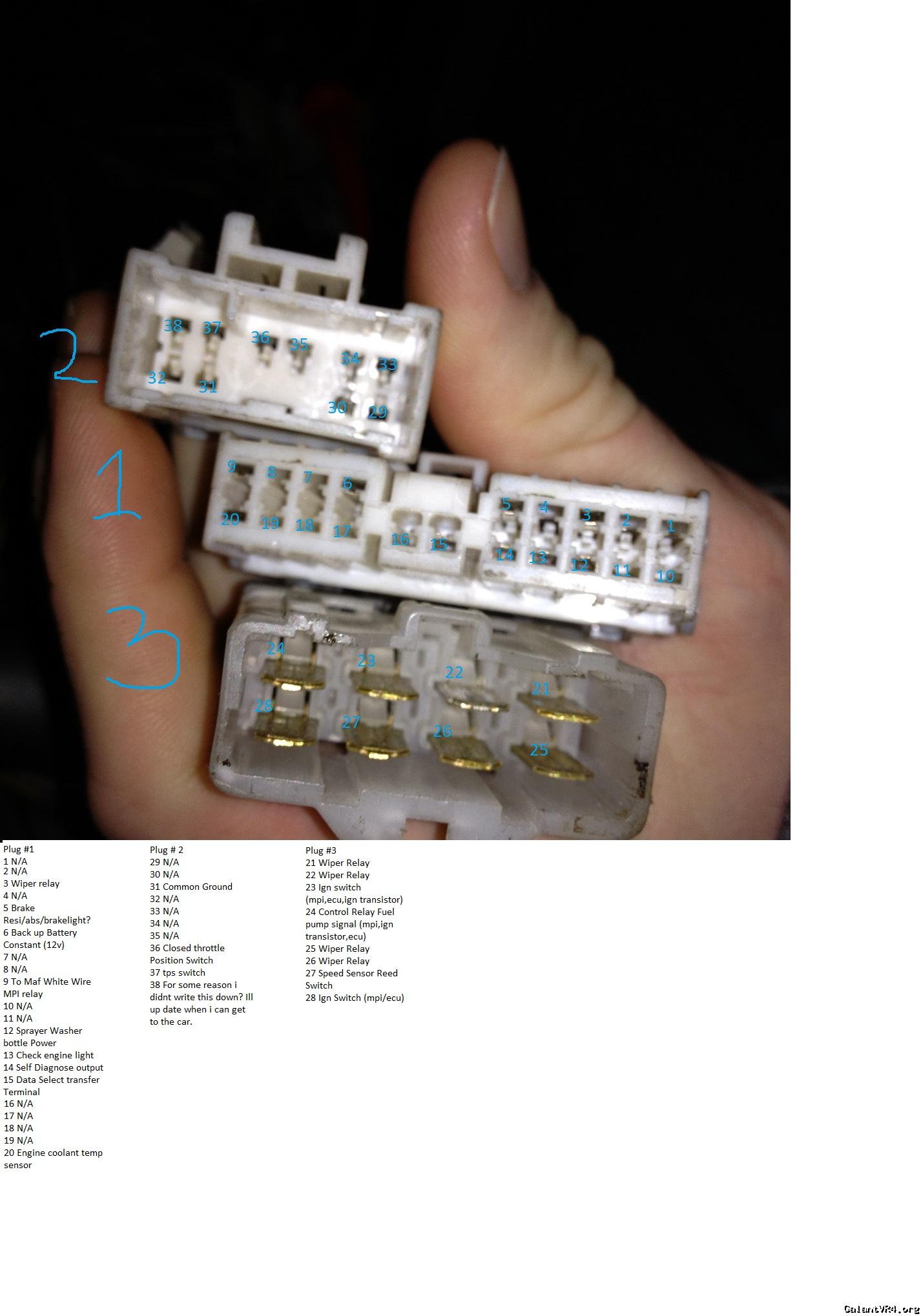

So here it is my baby,
All the wires were traced back to the ecu and i used the vfaq pin out to decifer what went where.
The spots where it is labeled N/A this is apart of the stripped down part of the harness alot of it would be a/c controls and dumb worthless stuff no one really needs i think hahahah.

If you guys have any input please do help.

SO ZOOM IN AND ENJOY! HI RES JUST TINY AT FIRST



[gmp]

im pretty close to getting this wiring all worked out, but does anyone happen to know or have a pinout for the main harness plug that connects from the underhood fuse box then goes underdash.

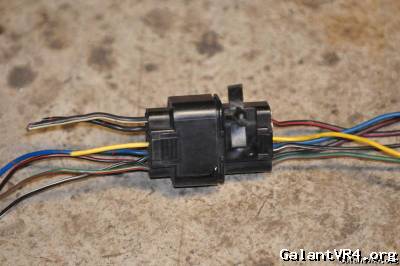

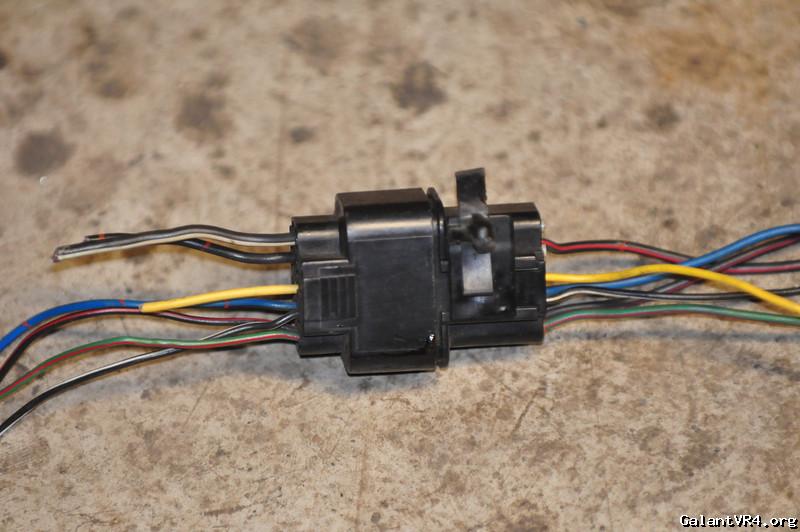

this is the plug in question



[gmp]

bump anyone know this plug well?
i think it is why my link isnt connecting as well.
