Two mystery bolt holes in my transfer case *PICS*

[Luke]

I just swapped my 180k miles original transfer case with one that I bought from another dsm-er.

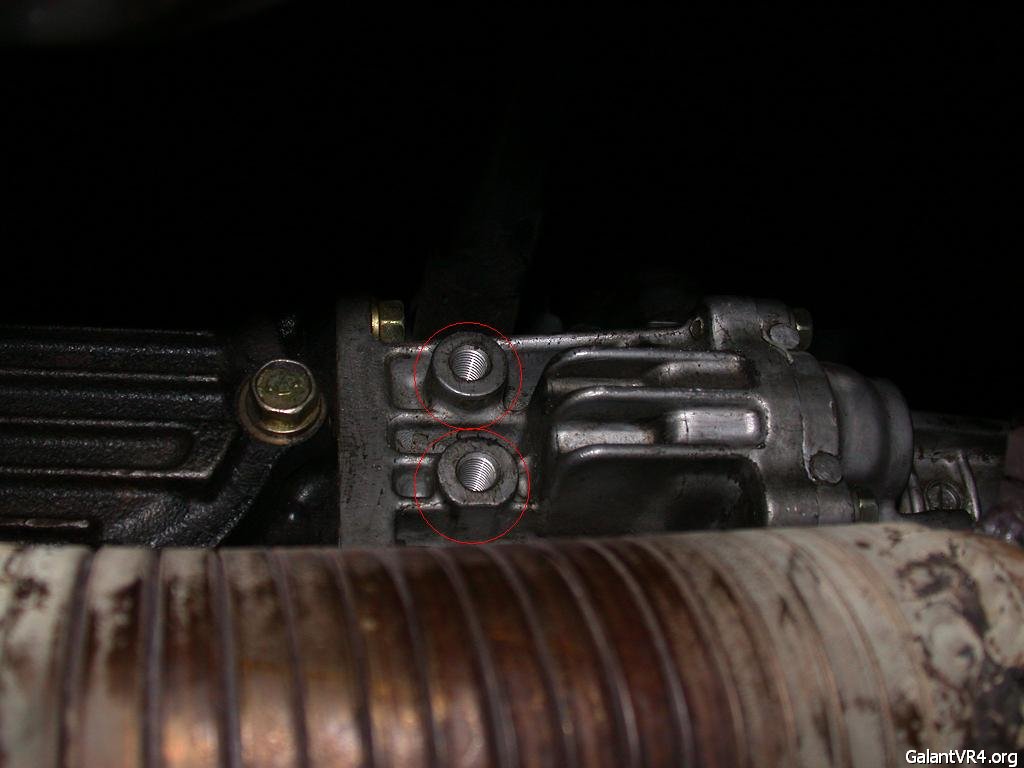

It is a 23-spline transfer case. But the weird thing is that it has these two extra bolt holes that my original transfer case does not have.

Anybody know which transfer case do I have ? Is it a 2G t-case ?
I know it is not a switchable one, because it doesn't have the bracket shown in vfaq.
Morever, what are those bolt holes for ?

Thanks in advance.



[CP]

Attachment points for some kind of driveline stabilizer?



[bazeng]

transfer case from a lancer gsr / evo???



[Luke]

Hi bazeng, mine looks exactly like that!

But I bought it from a guy in the states, so I doubt it is from a lancer evo..

Could this be the 1997-1999 2G AWD t-case ?



[bazeng]

hmmm

well the pictures is off a lancer gsr from aus..
so im not too sure!

if it works, i guess it doesn't matter hey?



[Luke]

Bazeng: Do you know what year the said lancer gsr is ?



[bazeng]

not sure exactly buddy.

at a guess, 95?



[Luke]

Okay, I removed the transfer case to check the gear ratio.
( I.e. whether I have 1991-1996, or 1997-1999 gear ratios )

From searching in dsmtalk, I found:
Quote:

5spd & A/T Transfer case gear ratio.

* -96 : 1.090 (drive/driven gear tooth 24/22)
* 97- : 1.074 (drive/driven gear tooth 29/27)




So, I want a 24/22 gear ratio for gvr4.

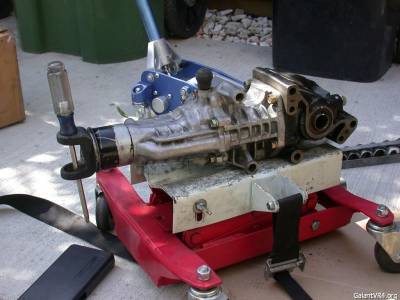

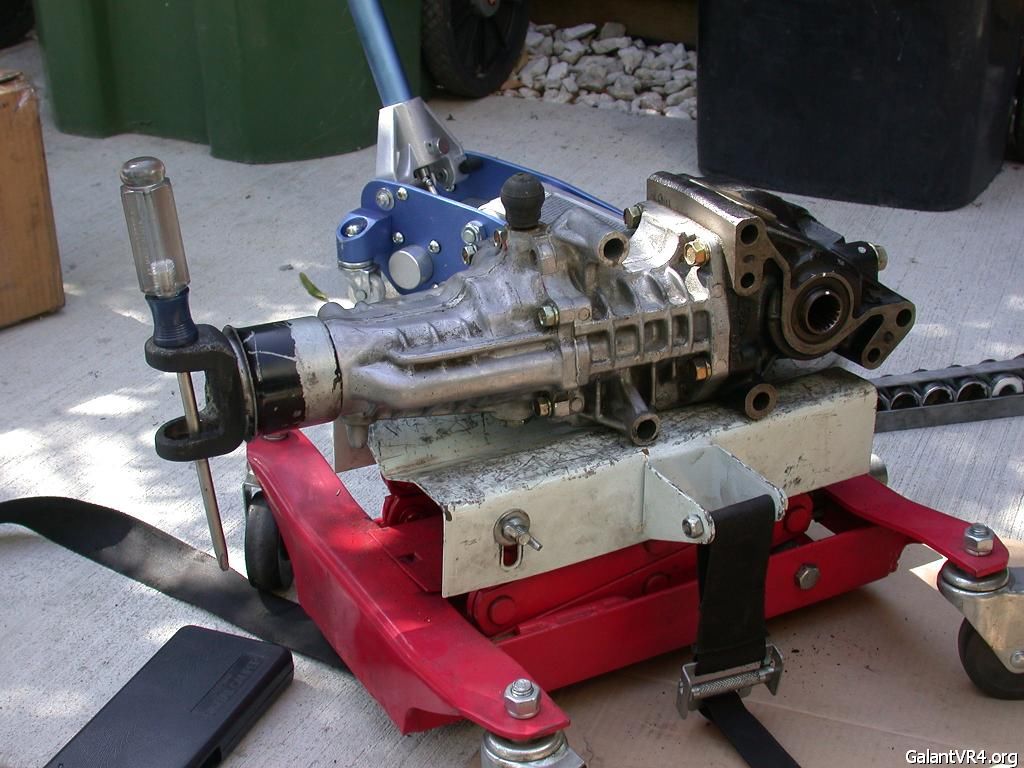

This is how I setup my transfer case to check gear ratio:



I found that if I turn the screwdriver ( output shaft ) 22 full-revolutions, the input spline ( where I have marked with a marker ) will turn 24 full-revolutions.
( Incidentally, you can also turn the screwdriver just 11 turns, and watch the input spline do 12 turns )

Okay.. so now I know that I have the correct gear ratio transfer case.
However, as it turns out I am missing one dowel that locates the transfer case to the tranny.
I guess I will have to wait until Monday and see if I can get a replacement.

I am hoping this will fix the decel noise that I have had since I bought the car.



[bazeng]

great tip!



[Luke]

Oh yeah, if you have coast-down or deceleration rumbling noise, it could also be due to worn transfer-case.

I have rebuilt my driveshaft with very minimal improvement on the decel noise.
With the new-ish transfer case, the noise is very much reduced.

Unfortunately, the 3-bolt LSD diff I have on the car currently has quite a bit of play on it, so a 4-bolt diff is going in next.



[OldHairyBastard]

My brand new T-case has the same 2 holes. It must be a newer part that supersedes the old.
