Eco switch

Brunoboy

Well-known member
Joined
Apr 25, 2008
Messages
2,880
Location
San Bruno,CA Home of SFO
ok so I just remembered I have a ECO Switch when I was thinking about hooking up a switch for the Pump-E85 dual map on ECM Link. Problem here is that I do not know which wires on the switch I would need to use to make it work. One wire has to go to from the ECU to the Switch and when the button is pushed it would need to be Grounded to the chassis so that would mean I would need to know which two wires to use on the switch harness and if there is a wire to light the switch. Any help with this would be great.Thanks
-Shane


Andy_S

Well-known member
Joined
Jan 30, 2007
Messages
982
Location
Shithole Wisconsin
You can use a multimeter to check for continuity when the button is pressed. If you need, I could check one of the switches I have laying around. I wouldn't be able to do that until Sunday though.


WaRrIoRs16

Well-known member
Joined
Mar 23, 2008
Messages
373
Location
Ferndale, WA

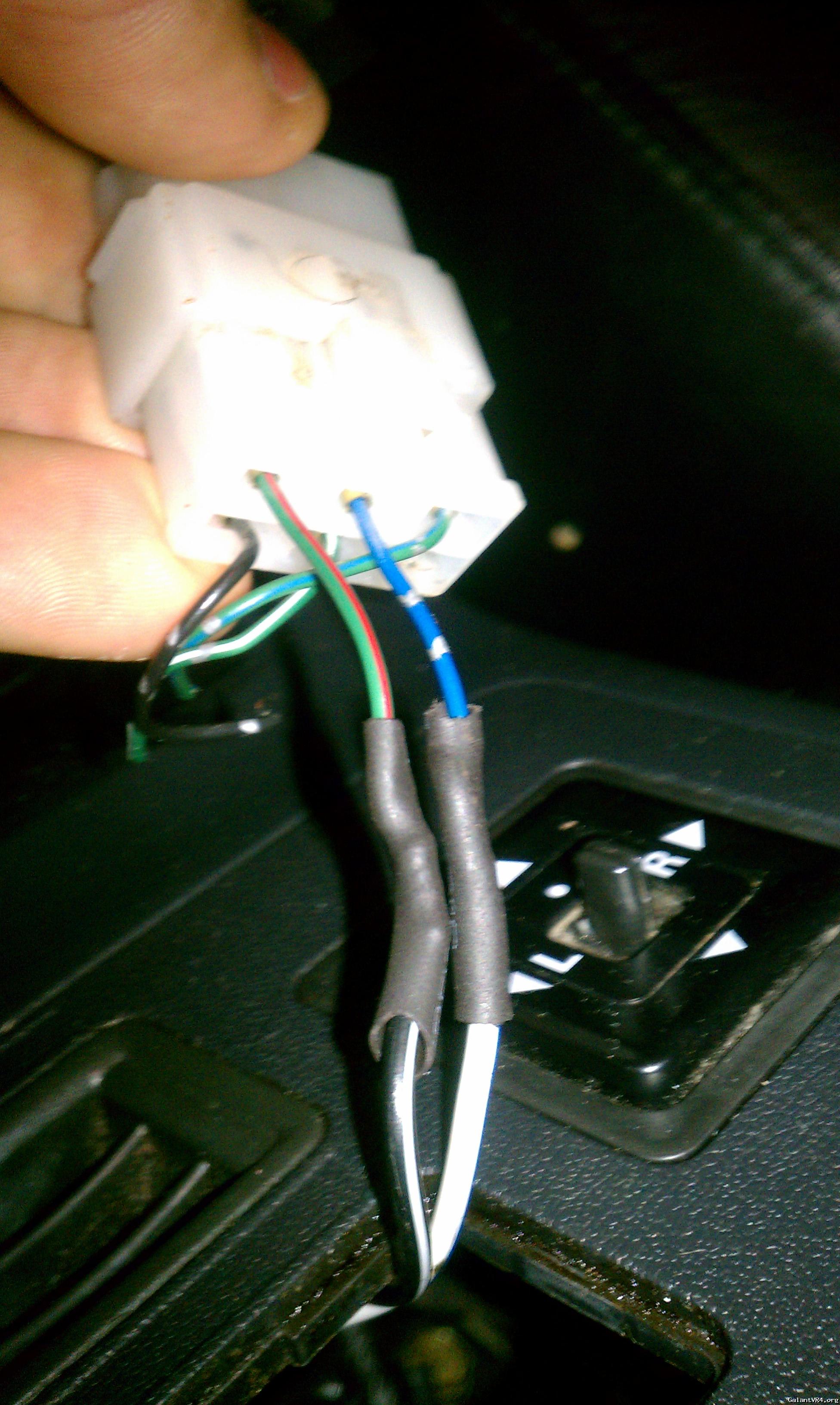

Pretty easy to determine using a multimeter, but these are the two I am using for my alarm turbo timer. These two are connected when the button is depressed, one side is to the alarm and the other obviously to ground.

The green/red wire and the blue wire connect through the plastic connector to the green/red wire and red/white wire respectively.



mikus

Well-known member
Joined
Jan 11, 2007
Messages
2,763
Location
Aurora IL
It looks like, based on PDF page 91 of circuit diagram:

Connector D-47 male pins:
1 Green w/red: open (PWR)
2 Blue w/black: 12V in
3 Green w/blue: switched ECO
4 Black (illumination, probably ground)
5 Green w/white (illumination, probably 12V)
6 blank

Try that out and post your findings


Brunoboy

Well-known member
Joined
Apr 25, 2008
Messages
2,880
Location
San Bruno,CA Home of SFO
Quoting Andy_S:
You can use a multimeter to check for continuity when the button is pressed. If you need, I could check one of the switches I have laying around. I wouldn't be able to do that until Sunday though.


not in a hurry thanks. I just need to know since i cut the button out of a junkyard car and figured it was cool, who knew two years later i would end up using it aha


Brunoboy

Well-known member
Joined
Apr 25, 2008
Messages
2,880
Location
San Bruno,CA Home of SFO
Quoting mikus:
It looks like, based on PDF page 91 of circuit diagram:

Connector D-47 male pins:
1 Green w/red: open (PWR)
2 Blue w/black: 12V in
3 Green w/blue: switched ECO
4 Black (illumination, probably ground)
5 Green w/white (illumination, probably 12V)
6 blank

Try that out and post your findings


thanks for this, but I am still confused lol. Im not really good with reading and doing, I am more of hands on, So if I needed ECU wire-->Switch-->Ground which color wire would you use? and If I wanted the button to light up when its dark out, Which colored wires would you use for that? Thanks
-Shane


turbowop

Well-known member
Joined
Apr 29, 2001
Messages
11,972
Location
Yakima, WA
Mine turns my methanol injection kit on and off, which also turns the boost to hi and low in conjunction with the meth kit.


Brunoboy

Well-known member
Joined
Apr 25, 2008
Messages
2,880
Location
San Bruno,CA Home of SFO
I just looked again and I only have the Switch Side, I DO NOT have the Car side of the harness so Id have to go by the colors of those wires.
-shane

and like I said, its for my Pump gas tune to be switched with me E-85 tune.


mikus

Well-known member
Joined
Jan 11, 2007
Messages
2,763
Location
Aurora IL
- ground black, then apply 12v to green w/white. It should illuminate.

- apply one meter lead to blue w/black, and the other to green/red. check continuity. One button position should show continuity, the other not.

- Repeat above with the 2nd lead now on green/blue. The -other- switch position should show continuity on this wire.

If all that is accurate, ground black, run 12v for illumination to green/white, 12V power to blue/black, and the green/red and green/blue are your 12v switching.

The wire colors are numbered in order seen on connector - you should be able to figure the other side out by position if not color


Brunoboy

Well-known member
Joined
Apr 25, 2008
Messages
2,880
Location
San Bruno,CA Home of SFO

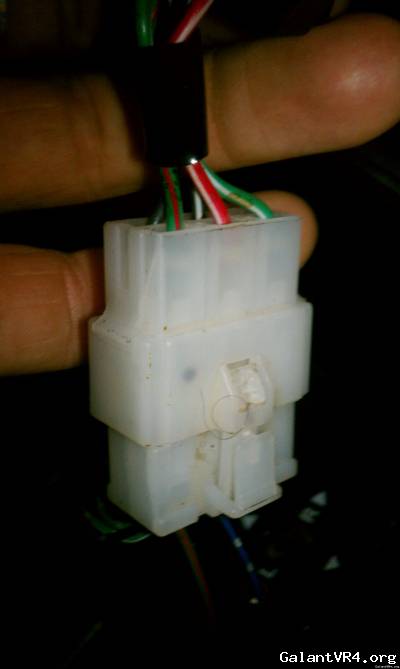

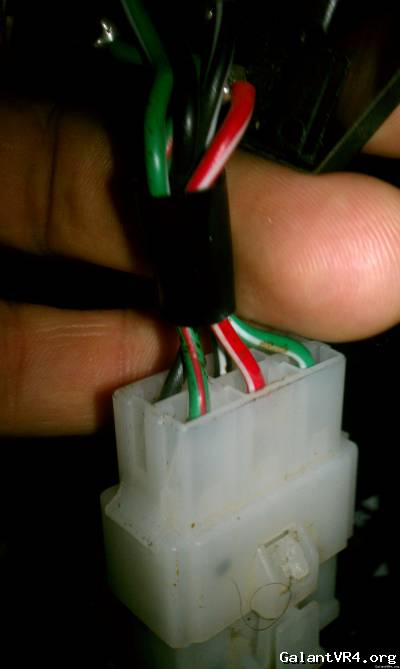

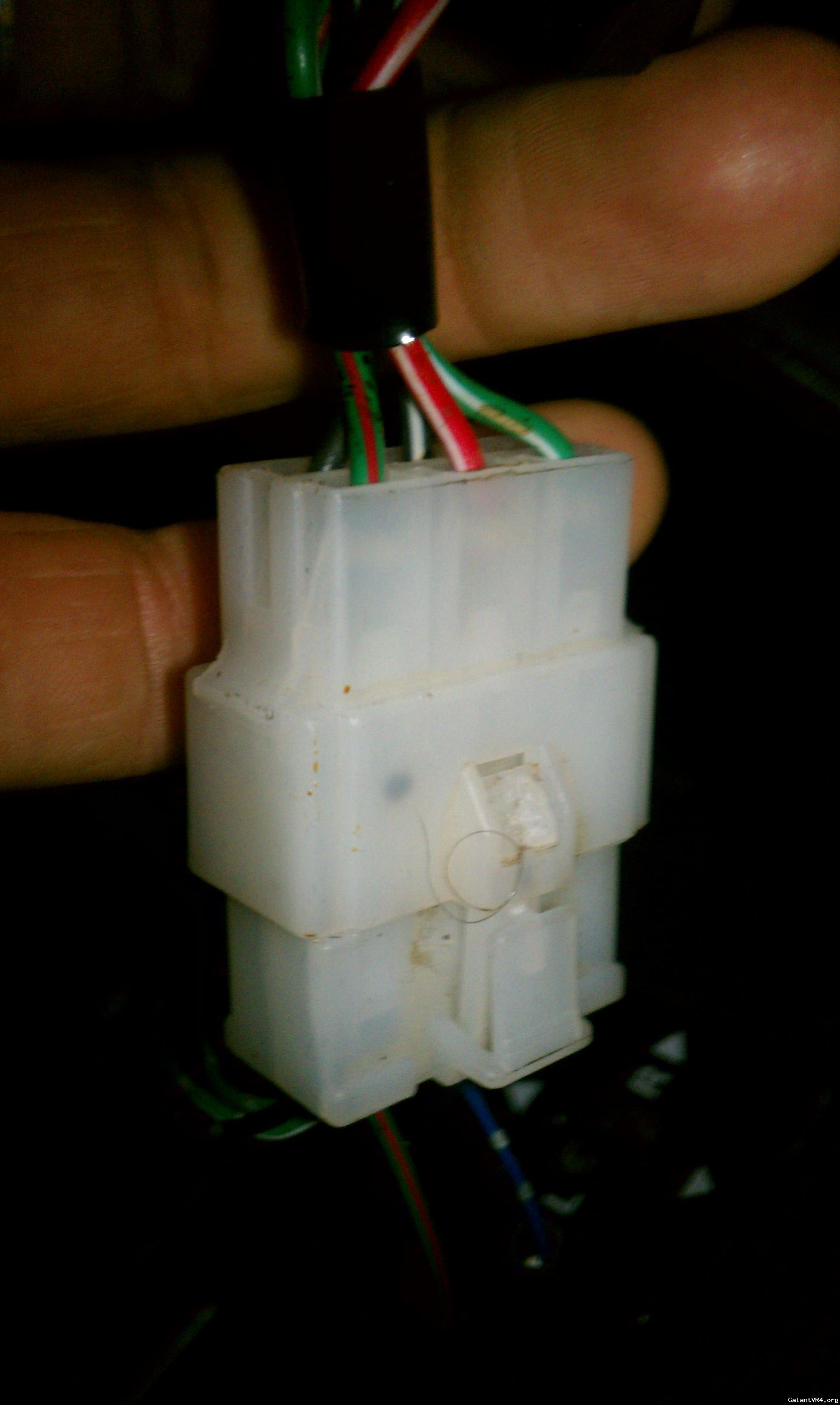

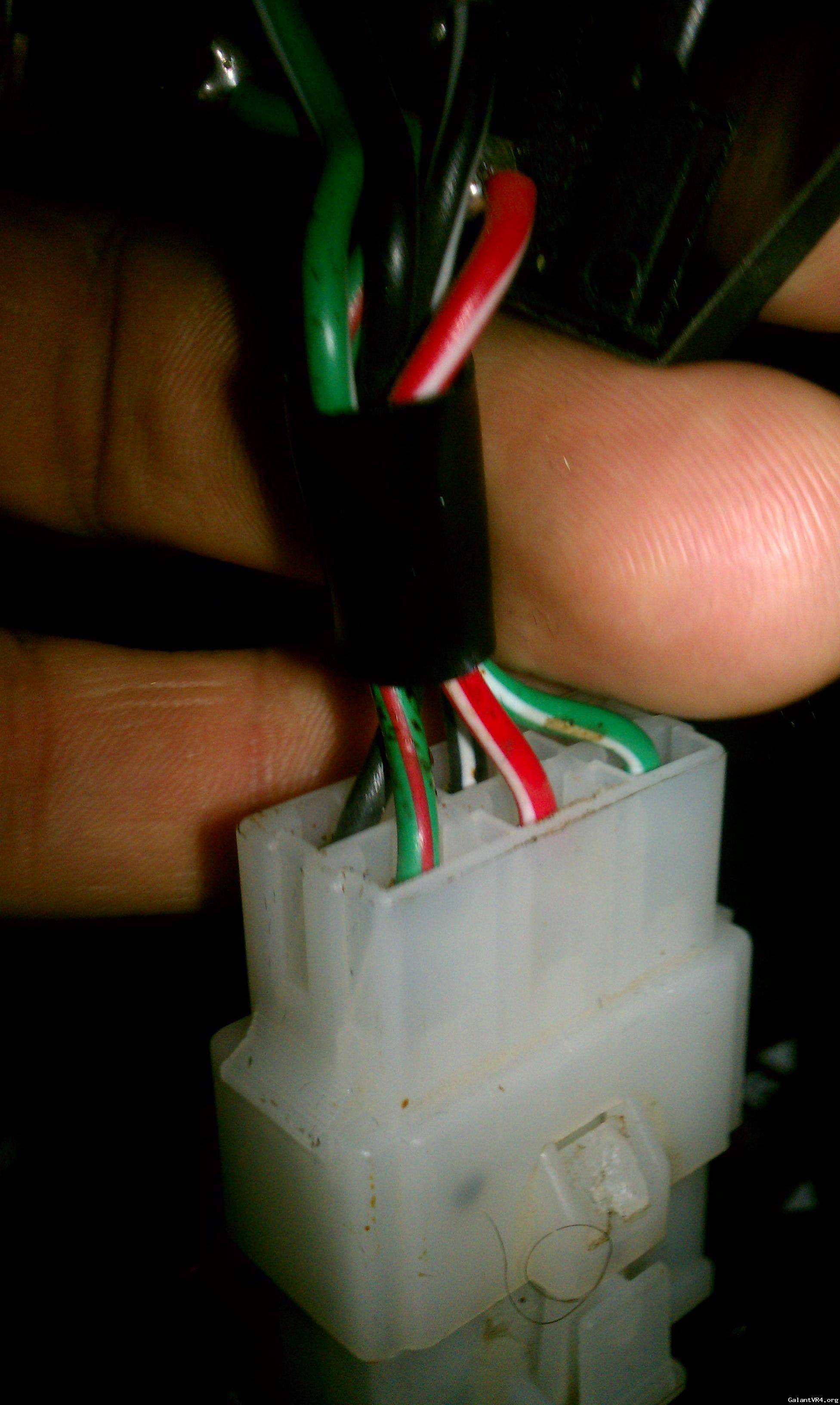

Thanks, the colors I see are only from the button side so green/red,red/white,green/white, Black, Black/white. so I dont see blue/black or Green/blue so can you tell me from the button side which is which? Thanks again and sorry if im making this complicated.
-shane


656of1000

Well-known member
Joined
Jan 18, 2005
Messages
292
Location
Phoenixville, PA
Quoting thedsmguy:
I'm interested in knowing what everyone has used there pwr/econ switches for...

Thanks.



I have a solenoid that bypasses the boost controller. In Economy, I'm seeing about 14 to 15 lbs boost. In Power, I'm up to 27 lbs boost.

Additionally, I also have the switch wired into ECM Link for Aux maps... I have a leaned out, high timing, low boost "Economy" map, and my regular "Power" map. I trigger the Aux map by grounding the idle switch when in Economy.


mikus

Well-known member
Joined
Jan 11, 2007
Messages
2,763
Location
Aurora IL
Quote:
Bump for the switch side.


You can figure this out bub - all the information you need is already in this post.

Looking at switch side there's a blank pin. That will match position 6: blank on harness side. Next to that would be 5, and 4 (probably black/ground) etc.

Using that logic and looking at pics here, switch side is likely:
1 green w/red
2 red w/white
3 green w/white
4 black
5 something w/white
6 blank
