Eco/Power Switch Wiring Schematic

[BoostedAWD91]

Does anyone have a wiring diagram for the eco/power switch? I am using this as a fan switch and need to know which wire is power,accessory and ground.



[curtis]

Ok Mine I just looked has the green with red stripe hooked to a wire that runs to the floor under the center console then the other wire is the black under it. That goes out to the little emergency temp switch on the back side of the thermostat housing. Can't verify that becuae car is in a million pieces and I'm getting old. Damn this JSB status. Going back in the waiting room whilst Adolf screams /ubbthreads/images/graemlins/grin.gif



[curtis]

I'm thinking how its hooked up it has a wire that runs from the switch to the fan relay and this gives it the ground its looking for. Nothing is hooked to the thermoswitch and its actually gone and a plug replaced it.



Ok looked again that's it the factory wire to the switch is tied to the wire running to the black wire on the eco power switch and the green with red stripe goes down to a bolt under the console. Push the button connects the wire relay trips and you get a full 12 volt power to the fan and bypasses the resistor. sh*t I still got it, just can't remember what it is . /ubbthreads/images/graemlins/grin.gif



[bazeng]

What I did was run a relay with the switch

Therefor you can just use the switch as a gnd switch.

So basically off the relay

- 12v +ve constant or IGN
- IGN switch
- Power to device that needs power
- GND (which will be the switch) then other end of the switch goes straight to the chassis

You lose illumination though. I never did much around enough to get illum to work.

Just use a multimetre and see which pins short when you press the switch on / off



[BoostedAWD91]

That's what I'm gonna do. The switch will power the relay which will then power the fan





[bazeng]

Awesome Keydiver!

Now I can wire up the ILLUM switch..

Do you know if it is the same as the Steering switch?



[BoostedAWD91]

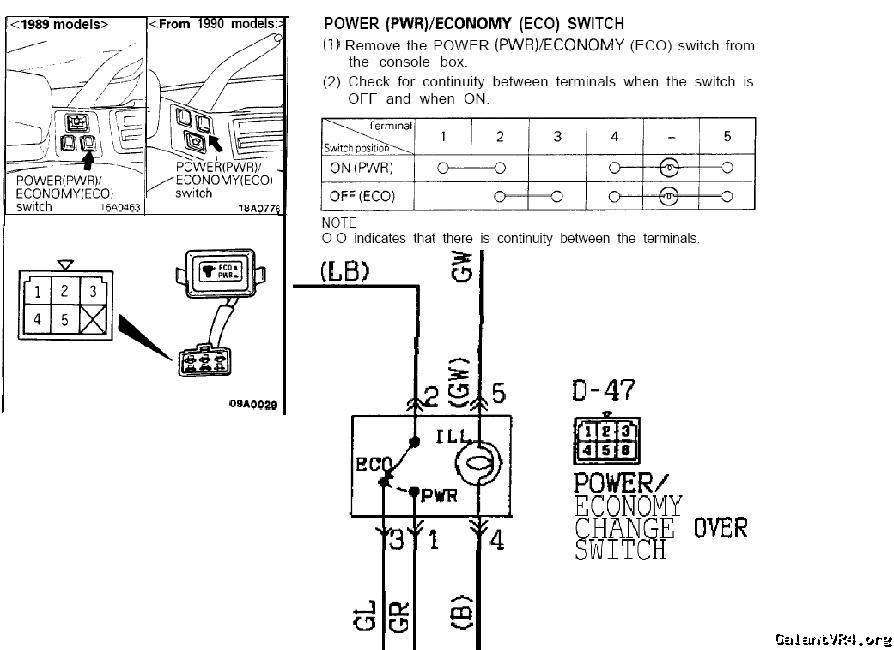

Thanks Jeff!!! Exactly what i was looking for... maybe this should be moved to How-To section or at least that Diagram of keydivers



[BoostedAWD91]

OK I got everything wired up but I would like to wire up the illumination on the switch too. How do I wire that up? The green and green/white wires are for the illumination. One power and one ground or another way?



Yes, its just a 12 volt bulb in there. Just connect ground to either terminal and +12 VDC to the other.



[turbowop]

I spliced mine into the dash illumination, so that it could be dimmed and turned on/off with that lighting.



[BoostedAWD91]

Quoting keydiver:
Yes, its just a 12 volt bulb in there. Just connect ground to either terminal and +12 VDC to the other.



Is the bulb replaceable? I tried hooking up power and ground and I still doesn't light
