I'm planning on picking up a hx35 in a couple weeks and going to have to run external wastegate. Anyone here using the Punishment Racing 38mm Ext. Recirculated O2 Housing(not the Vband)? Also pics would be appreacaited so I can see what kind of space I have. If I have to I'll run a civic half radiator, but would like to see what everyone else is doing. Any advice or other ideas let me know, Thanks.
The Top Mitsubishi Galant VR-4 Resource
Join the best E39A 1991-1992 Mitsubishi Galant VR-4 community and document your GVR4 journey. Login to browse without most ads.
Anyone using a PR 38mm Ext. Recirculated O2 Housing?
- Thread starter cupajoe
- Start date
Diego
Well-known member

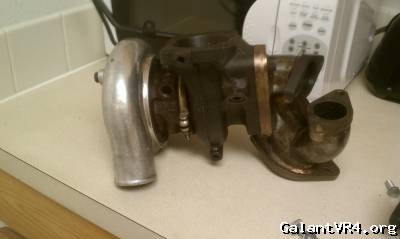

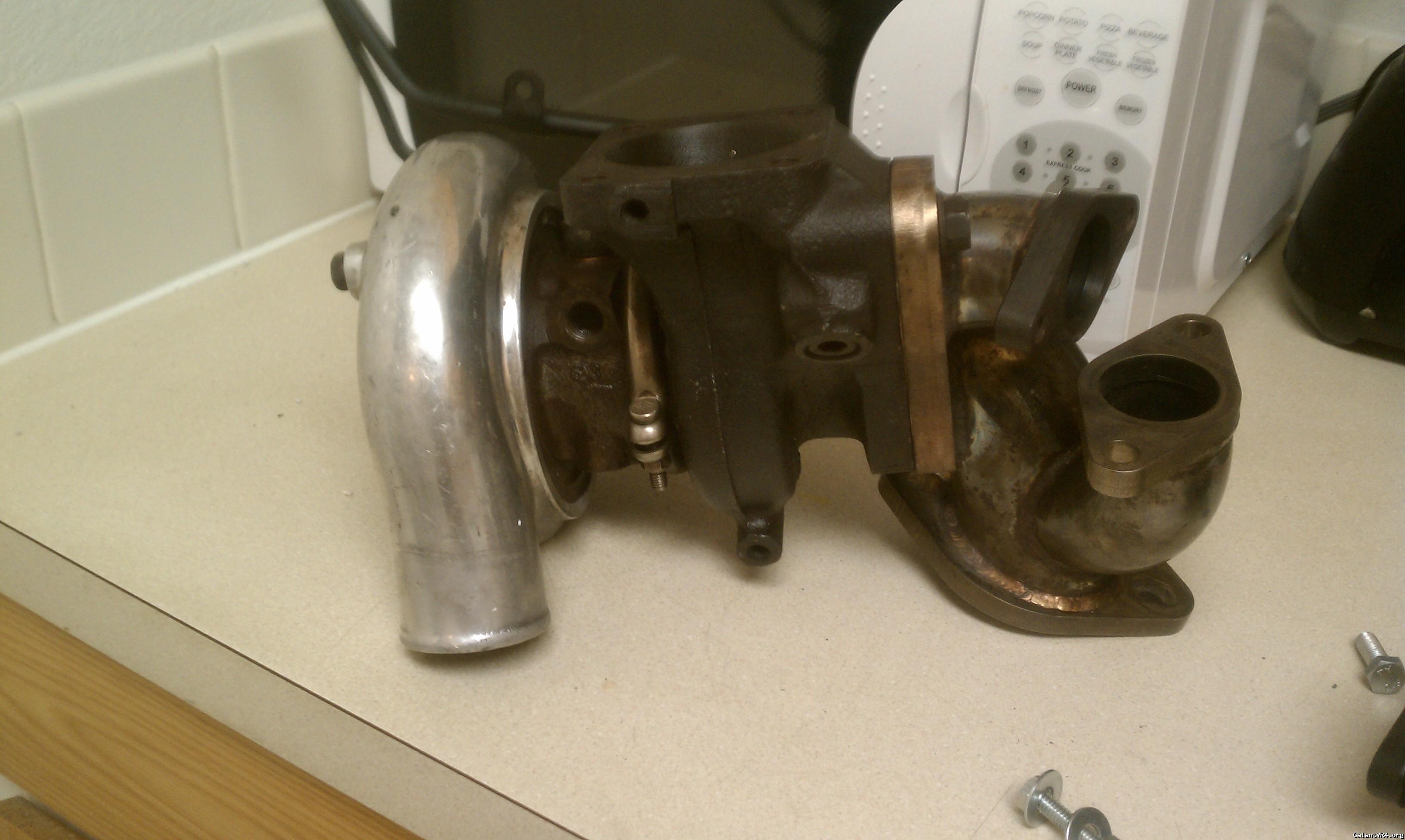

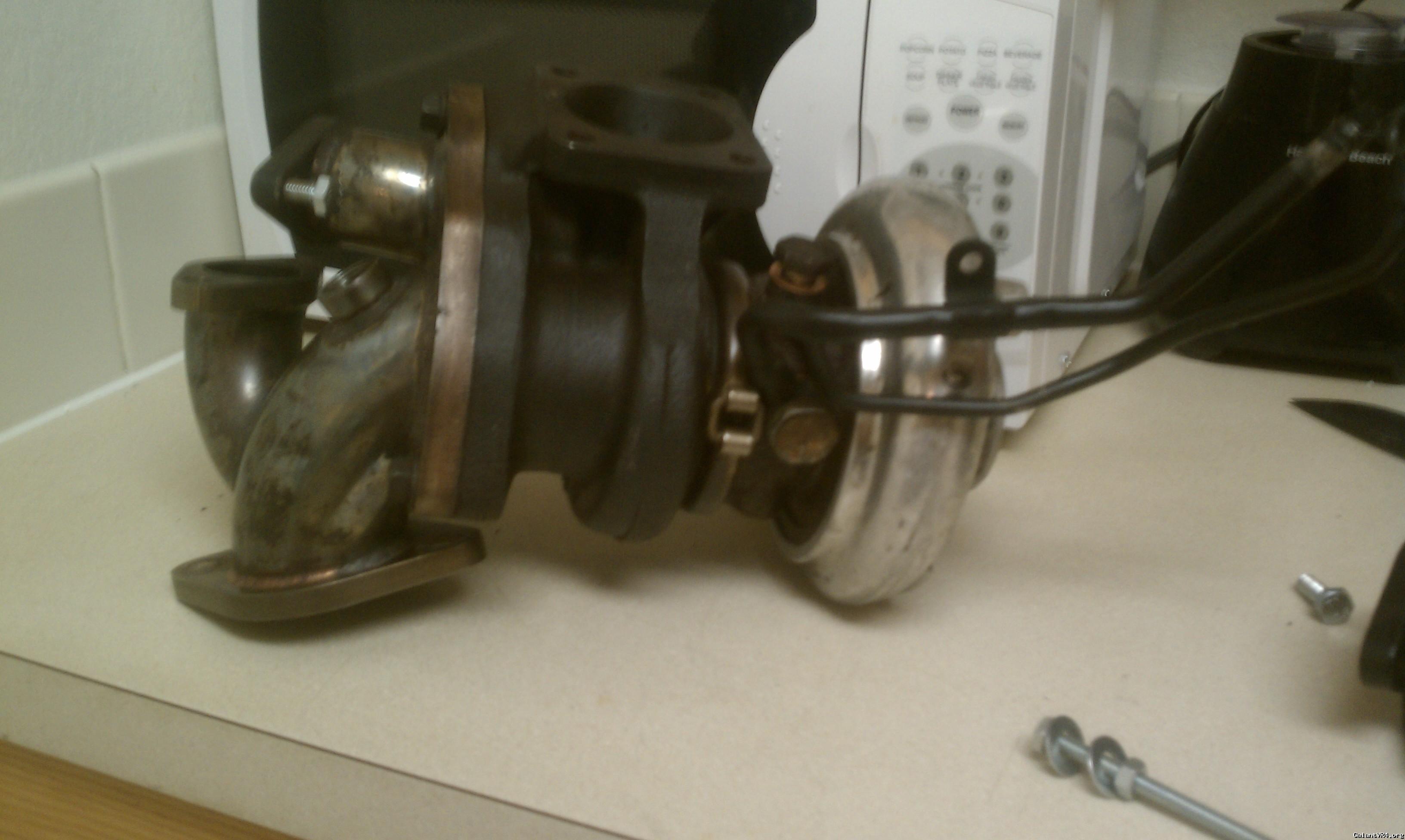

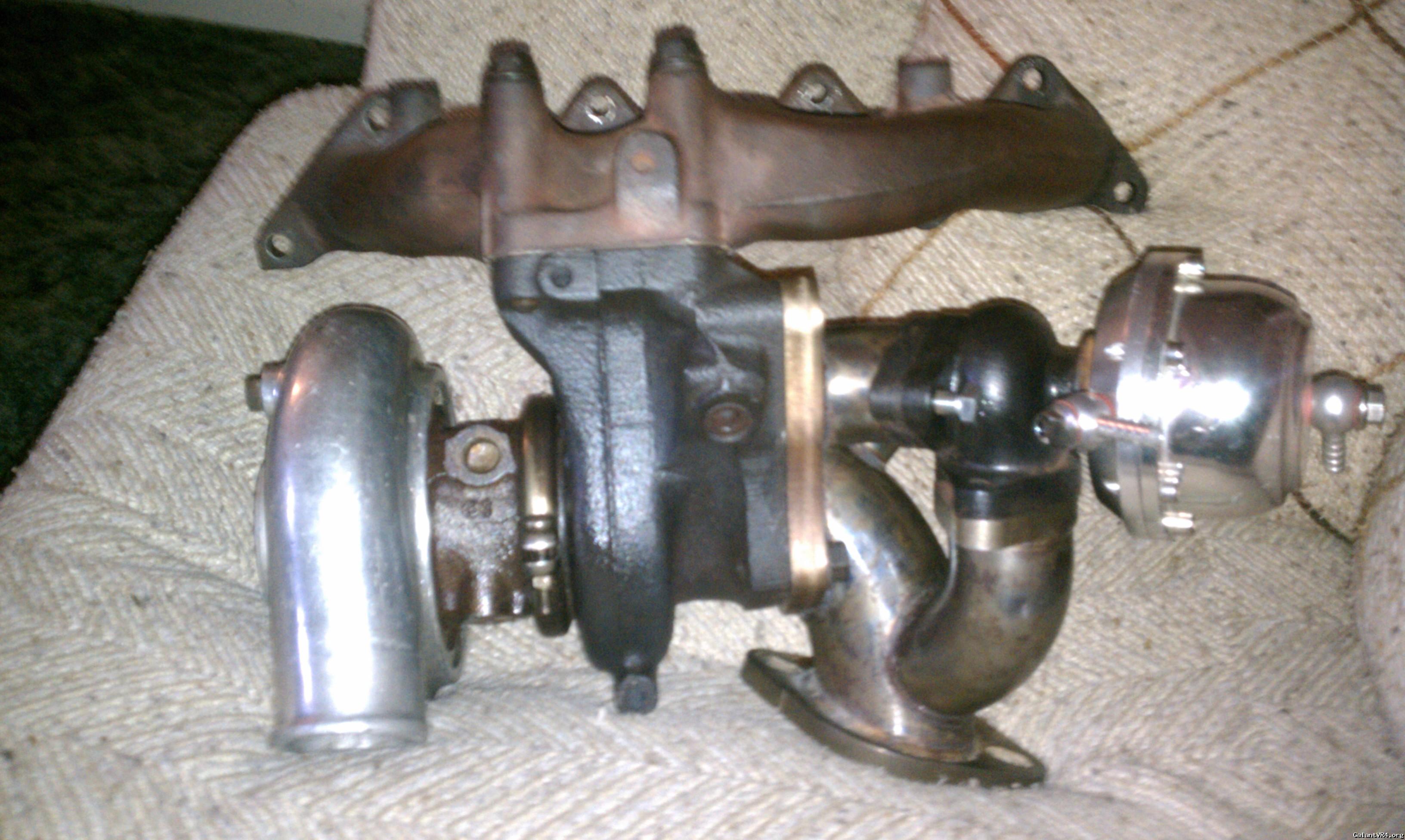

I am. I have this Ebay WG that has a 14psi spring in it(came with a deal on my 20G), but will opt out later when I have some spare cash for a TiAL.

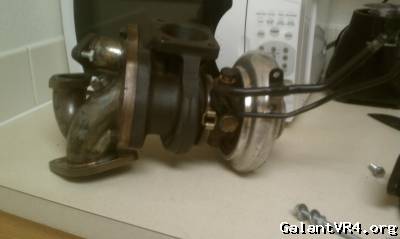

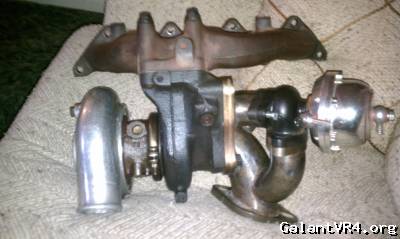

I Hi-Temp sprayed the lines black and will update with fitment pictures shortly when I go outside to install this...
I Hi-Temp sprayed the lines black and will update with fitment pictures shortly when I go outside to install this...
Scott Y
Well-known member

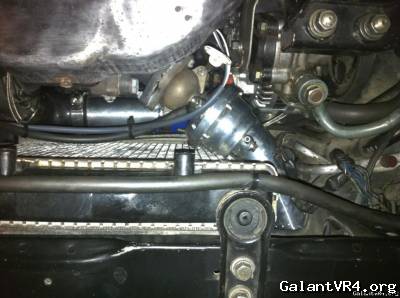

I have a PR recirc housing w/BR20G. It fits awesome, it went on the car and hasn't been off for years. I'll post a pic when i get home tonight.
Diego
Well-known member

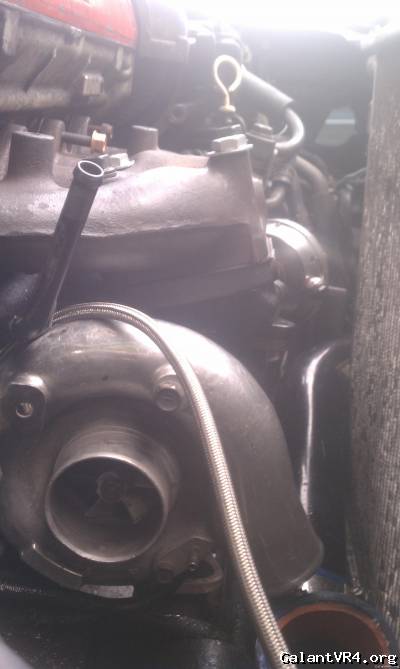

Oh sorry for not updating, I am able to keep the stock radiator. But I have to do new ic pipes and I ordered new a new stud kit. I found that the barb fittings get real close to the radiator but still clears.... I need a braided AN line for the oil feed as my stock hard line will not come about the backside of the turbo housing...
Diego
Well-known member

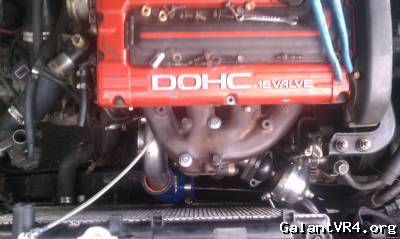

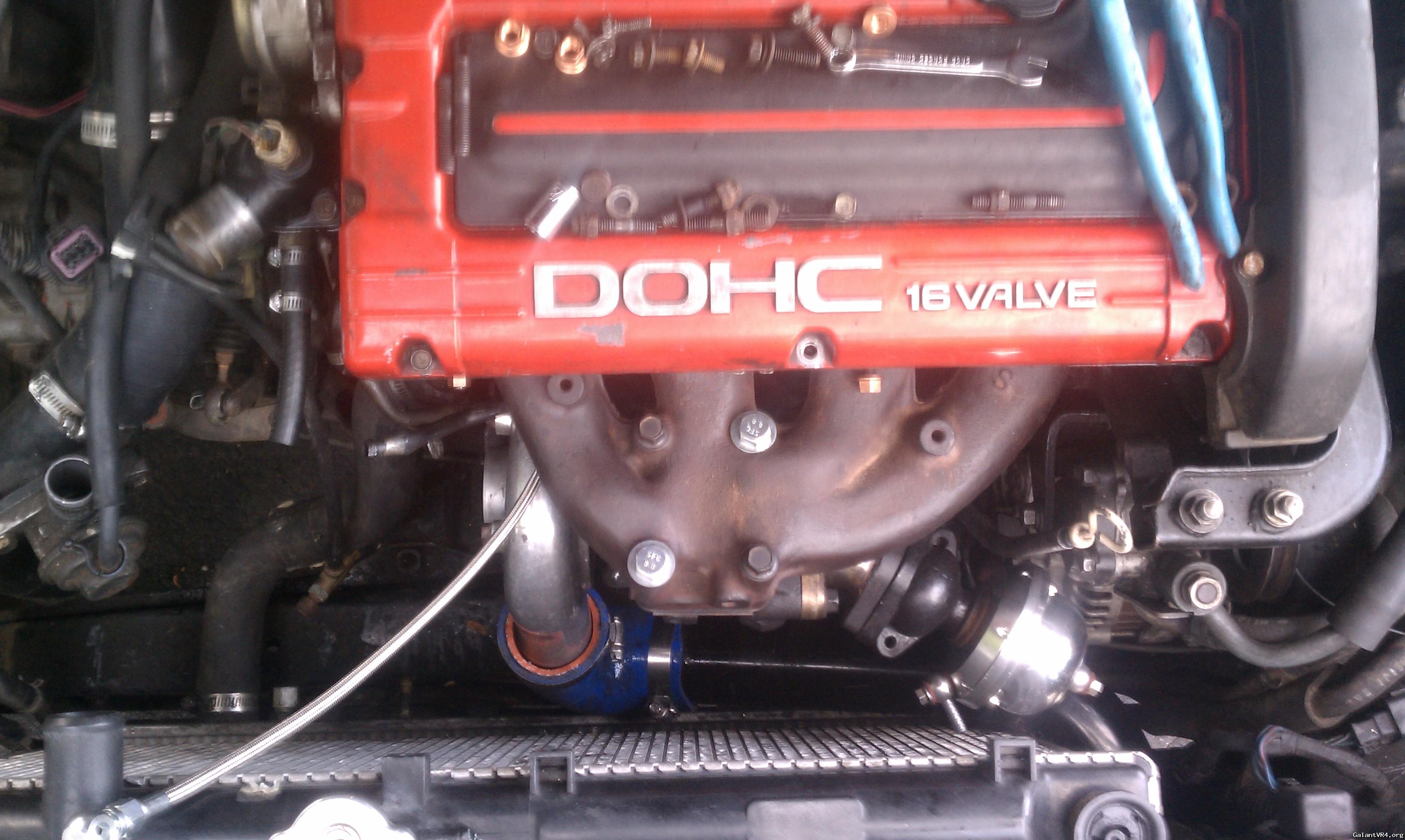

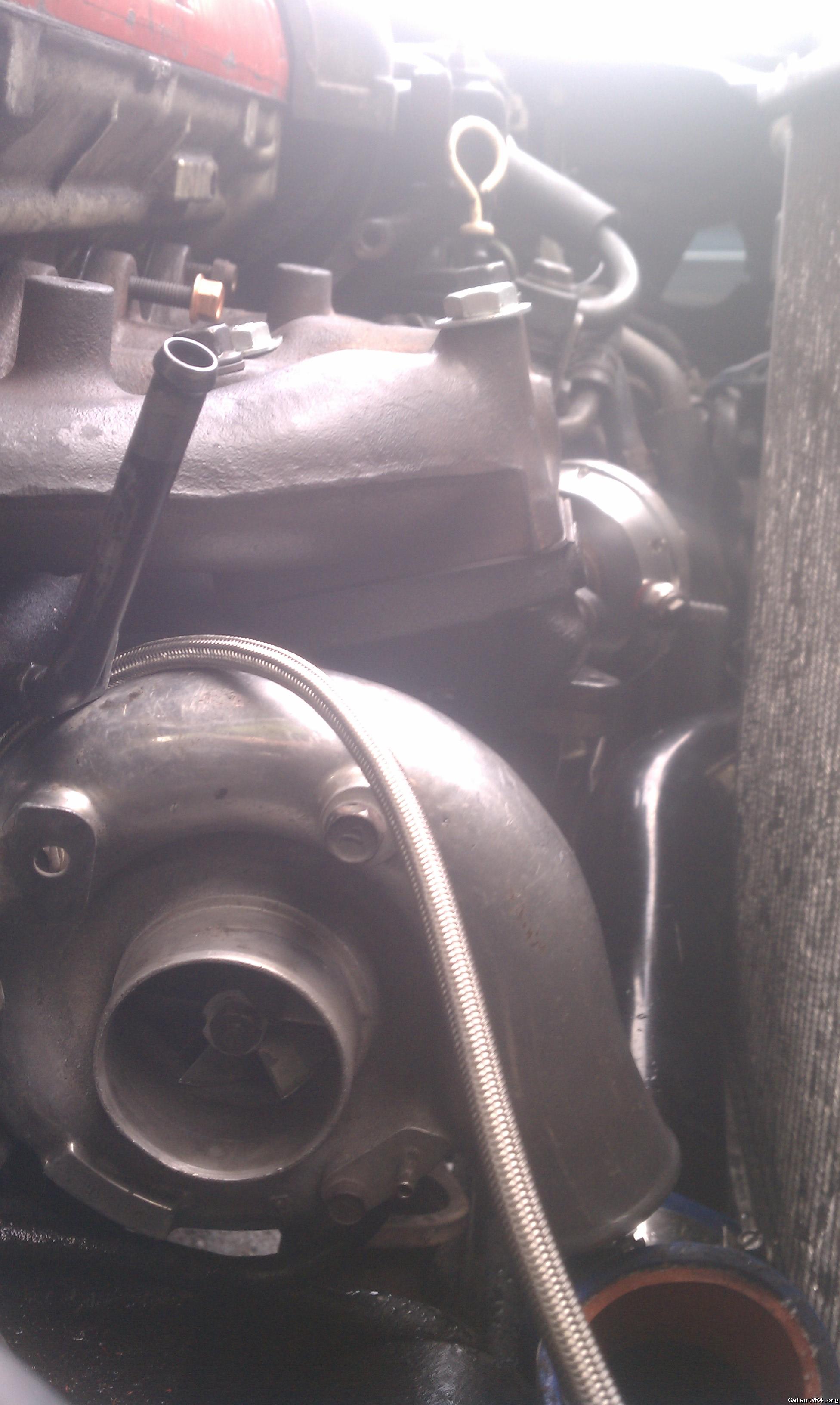

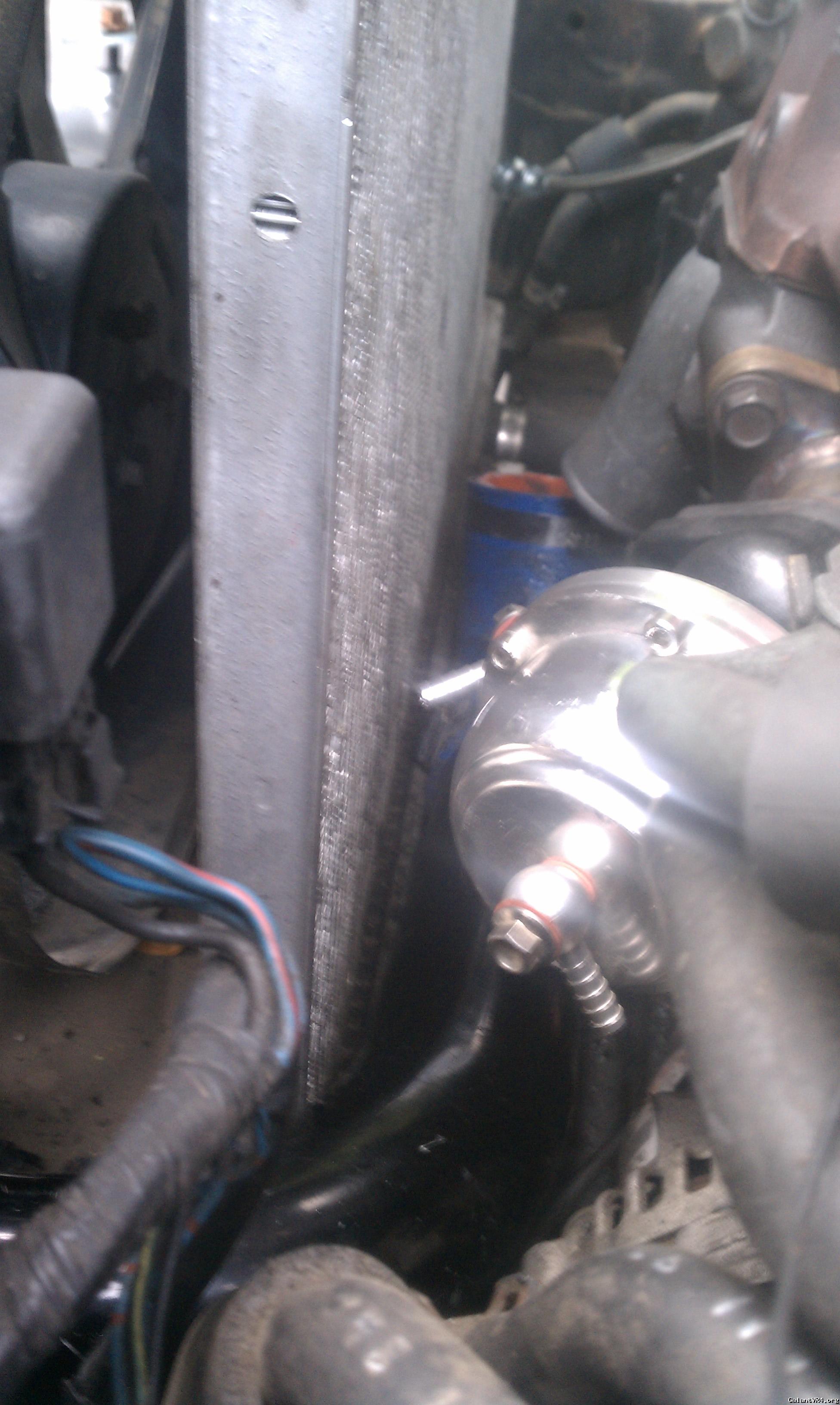

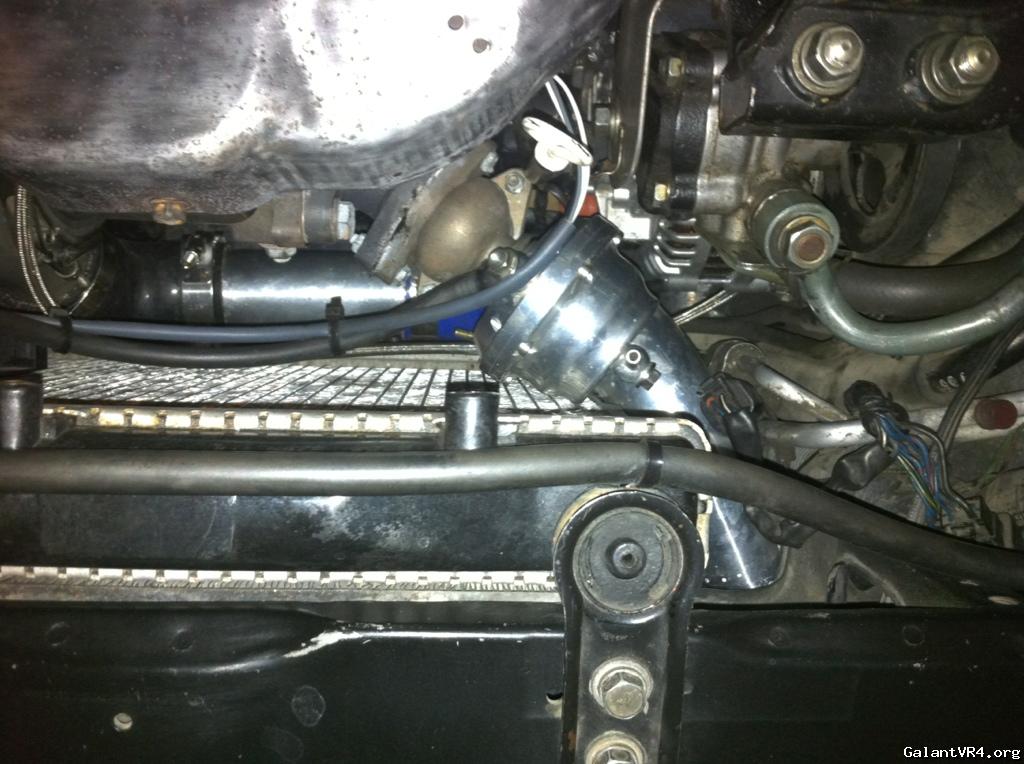

Pictures you requested... Sorry it took so long, been super busy trying to button things up before winter hits..
Thank you for the pictures, looks like it fits nicely. Helps alot to get a visual of the actual setup so I get a good understanding how much room we have to play with. I like how it fits alot, I'll be running this setup in a week or so. Glad to see that we can keep the stock radiator.
Thanks again, Joe
Thanks again, Joe
thecman02
Well-known member
Let us know how your set up fits. Mine didn't fit with the stock radiator. If you haven't gotten your 02 housing I would recommend the vband setup. It doesn't hurt to have room to spare!
Forgot to post up how it all fit, I now have almost 3k miles on my setup now. I was able to keep the stock radiator but I honestly debating about switching to a 2.5" civic radiator. I'm not really having overheating problems but my temps are just too high for my liking. This is my arguement on the half sized raditor, pro's and con's.
Full size:
-full size so it has more surface area but what good does that do when there is a FMIC that covers the whole front end. 24"x11"x2.75"
Half size:
-Yes half the surface area but it thicker and the puller fan covers all the surface.
-No longer right in front of the huge BEP housing soaking up all the heat.
Does my logic seem right?
Full size:
-full size so it has more surface area but what good does that do when there is a FMIC that covers the whole front end. 24"x11"x2.75"
Half size:
-Yes half the surface area but it thicker and the puller fan covers all the surface.
-No longer right in front of the huge BEP housing soaking up all the heat.
Does my logic seem right?
Brunoboy
Well-known member
i have a 38mm External wastegate fs: lmk /ubbthreads/images/graemlins/grin.gif
pyro719
Member
Anybody running the Punishment external o2 housing?
4Grim
Well-known member
Quoting cupajoe:
Forgot to post up how it all fit, I now have almost 3k miles on my setup now. I was able to keep the stock radiator but I honestly debating about switching to a 2.5" civic radiator. I'm not really having overheating problems but my temps are just too high for my liking. This is my arguement on the half sized raditor, pro's and con's.
Full size:
-full size so it has more surface area but what good does that do when there is a FMIC that covers the whole front end. 24"x11"x2.75"
Half size:
-Yes half the surface area but it thicker and the puller fan covers all the surface.
-No longer right in front of the huge BEP housing soaking up all the heat.
Does my logic seem right?
I am running a triple core half size civic radiator on my gvr4 with a Spal fan, 50/50 premixed coolant with a bottle of Redline Water wetter. After driving the car several times, my logged temps are a couple degrees cooler than my stock radiator setup with a Evo B16g. Currently running a FP Red, with SS PR O2 housing with a Tial wastegate open dumped. So your logic is right or at least same logic as me and works.
Here is a link to my Members showcase page. Most recent pics towards the bottom have pics of my setup.
4Grims 1991 Galant VR4
Forgot to post up how it all fit, I now have almost 3k miles on my setup now. I was able to keep the stock radiator but I honestly debating about switching to a 2.5" civic radiator. I'm not really having overheating problems but my temps are just too high for my liking. This is my arguement on the half sized raditor, pro's and con's.
Full size:
-full size so it has more surface area but what good does that do when there is a FMIC that covers the whole front end. 24"x11"x2.75"
Half size:
-Yes half the surface area but it thicker and the puller fan covers all the surface.
-No longer right in front of the huge BEP housing soaking up all the heat.
Does my logic seem right?
I am running a triple core half size civic radiator on my gvr4 with a Spal fan, 50/50 premixed coolant with a bottle of Redline Water wetter. After driving the car several times, my logged temps are a couple degrees cooler than my stock radiator setup with a Evo B16g. Currently running a FP Red, with SS PR O2 housing with a Tial wastegate open dumped. So your logic is right or at least same logic as me and works.
Here is a link to my Members showcase page. Most recent pics towards the bottom have pics of my setup.
4Grims 1991 Galant VR4
Last edited:
5OF2k
Well-known member
I'm currently on a Civic 2.5" half rad now, with a 12" pusher for my car. I'm on a tubular ramhorn mani and a Full-Race/Garrett T67 setup. Underhood temps went up quite a bit as expected with the larger manifold/turbo/DP, but coolant temps remain normal (190-195 ish). THe only issues I've ever had with it would be it going up to around 200 when I sit in traffic in 90* weather, but that's few and far between. I also think a 3 core radiator would fix that, but it wont fit with my setup.
I will more than likely be getting myself an AFCO Scirocco radiator to use, when I can find a good enough deal on one, that is....
-Jake
I will more than likely be getting myself an AFCO Scirocco radiator to use, when I can find a good enough deal on one, that is....
-Jake
pyro719
Member
Id like to keep my full size radiator.
MellowVR4
Well-known member
AFCO scirocco radiators are sooo sweeeet. It fits so nice, just have to drill some holes.
bmxr152
Well-known member
I have the PR 38mm recirculated on my hx40 and with the 1g aluminum radiator it would hit the core. Eventually it rubbed tgrough and leaked. I then swaped to a civic 3 row and cools just as good but now with my new intercooler setup(vrsf). The 2.5" piping is hitting the thick core. i think Im going to go with the afco scirocco.
Last edited:
