Brett Adams' 1992 Galant VR-4 820/1000

A hole

Galant VR-4 org Post #: 1213944 posted 08/04/15 01:22 PM     Remind Me!  Send Private Message   Edit Post
Owner: Brett Adams
Location: Annapolis, MD
Message Board Name: GSTwithPSI
Year: 1992
Number: 820/1000
Best 1/4 mile time: N/A
Dyno: N/A
Build thread: 820/1000

6 bolt stock block
Stock uncut crankshaft
ARP head studs/bolts
2G cylinder head (Evo behive valve springs, 3G revised lifters, ARP exhaust manifold studs)
Stock cams
Fel-Pro composite head gasket 9627PT
All new engine gaskets (FelPro)
New water pump and timing components (Gates)
Gates accessory belts
Gates timing belt
NGK BR8EIX plugs @ .020
New oil pump with straight cut gears & OEM BSE kit

Walbro 255 fuel pump
Aeromotive A1000 AFPR
-6 AN feed line to rail
New OEM fuel filter
FIC 1150cc injectors (flowed tested at ~1200cc)

Intake & Intercooler:
FRAM AirHog air filter
Galant VR-4 MAF
Hacked air can
Crushed OEM BOV
Bar and plate FMIC 25"x 8" x 3" core
2.25" short route intercooler piping
Evo 3 intake manifold

Turbo & Exhaust:
Bastard 20G turbo:
--- TD05H compressor cover
--- 20G cast 6 blade compressor (Inducer: 52.6 mm / Exducer: 68 mm)
--- TD05H turbine
--- Ported 7cm^2 turbine housing
2G OEM exhaust manifold
2.5" turbo back exhaust
Buschur Racing stainless steel heat shield

New OEM radiator
Stant 13lb radiator cap
OEM 180* T-stat
Factory puller main fan
Factory pusher A/C fan

MOMO "Racing Line" steering wheel
MOMO SK50 shift knob
OEM metal brake and clutch pedal covers
JDM headrests
Alpine CDA-7939 deck
Lamco OEM gauges (volt, boost, water temp)

Thule roof rack
OEM rear mud flaps

EMS, Logging & Electronics:
ECMlink V3
Innovate LC-1 wideband
OEM Autolite plug wires
ECMlink boost control setup

5 lug hub swap
Stainless braided clutch line
Rebuilt TRE transmission (Red Line MT-90)
B2B 3 bolt non-LSD rear (Red Line Heavy ShockProof)
23 spline transfer case (Red Line Heavy ShockProof)
ACT full face sprung (4 spring) clutch disk & 2600 pressure plate
Stock flywheel

Brakes, Wheels & Suspension:
Evo 8 stock suspension
Adjustable front camber plates
Adjustable rear camber arms
New lug nuts
5mm rear spacers
Evo 8 Enkei wheels * 17x8 * 5x114.3 * Offest 38
Hankook Ventus V12 Evo2 tires 235/45 R17
ABS delete w/ 1G AWD prop valve
4WS delete with welded trailing arms
1G DSM power steering rack
Baer Track Claw big front brake kit (BAE 4611001)
Crossdrilled/slotted 13" front rotors
Braided stainless front brake lines

Mods I'm waiting to install:
Mods I'm waiting to install:
3 bar MAP

Wish List:

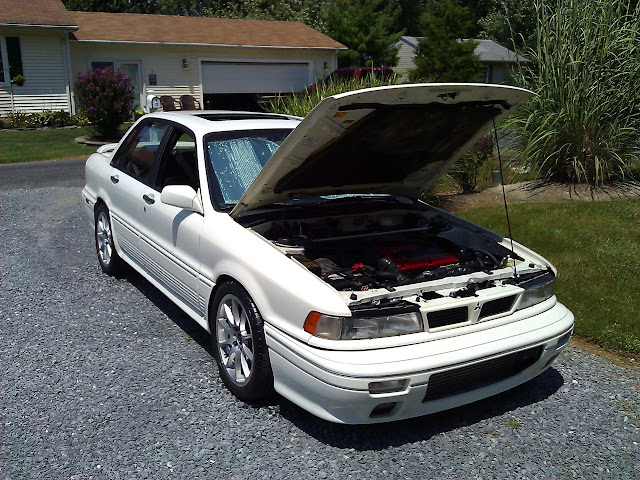

Here's 820 shortly after I picked it up (Aprl, 2015)

Here's 820 after the first round of improvments (August, 2015)

820 after a major overhaul (July, 2016)


Edited by GSTwithPSI (11/19/16 06:05 PM)
